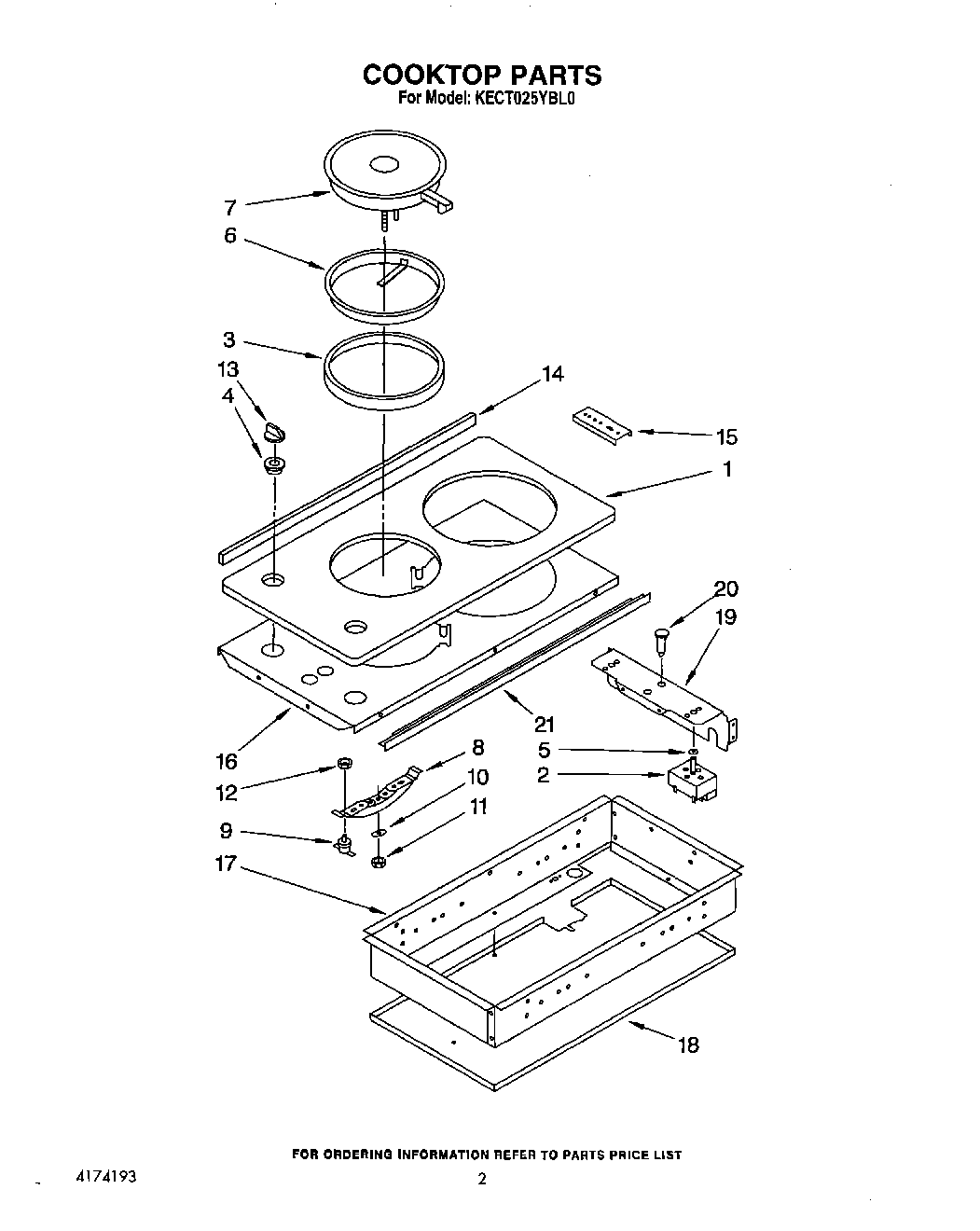

| 1 | Cooktop, Glass (White) |
| 1 | Cooktop, Glass (Black) |
| 1 | Cooktop, Glass (Almond) |
| 2 | WP486579 Whirlpool Air Conditioner Screw |
| 2 | Switch, Inifinite (Front Burner (Green Shaft)) |
| 2 | Switch, Inifinite (Rear Burner (Orange Shaft)) |
| 3 | seal, element |
| 3 | WPL 3179362 |
| 4 | Seal, Inifinite Switch |
| 5 | Seal, Switch Shaft (2) |
| 6 | gasket, ring (2.0 KW) |
| 6 | gasket, ring (1.5 KW) |
| 7 | 8203517 Whirlpool Oven Surface Element |
| 7 | Element, Solid (Rear Burner) |
| 8 | bracket, element (1.5 KW) |
| 8 | bracket, element (2.0 KW) |
| 9 | Thermostat (2) |
| 10 | Spring, Leaf |
| 11 | hex nut (8) |
| 12 | Nut, Metric |
| 13 | Knob, Cooktop (White) |
| 13 | Knob, Cooktop (Almond) |
| 13 | Knob, Cooktop (Black) |
| 14 | seal, foam tape |
| 15 | Screw, 8-32 X 1 1/2 |
| 15 | 8186533 Whirlpool Hardware |
| 15 | Screw (4) |
| 15 | Nut, Tinnerman (2) |
| 15 | Screw |
| 16 | Top, Burner Box |
| 17 | Side, Burner Box (2) |
| 18 | Bottom, Burner Box |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | WPL 312318 |
| 19 | Bracket, Control Panel |
| 20 | Light, Indicator (2) |
| 21 | Trim, Extrusion (Black) |
| 21 | Trim, Extrusion (Almond) |
| 21 | Trim, Extrusion (White) |
