KECT305VAL0 02 – SECTION

KECT305VAL0 02 – SECTION

Written by

in

KECT305VAL0 02 – SECTION

Products

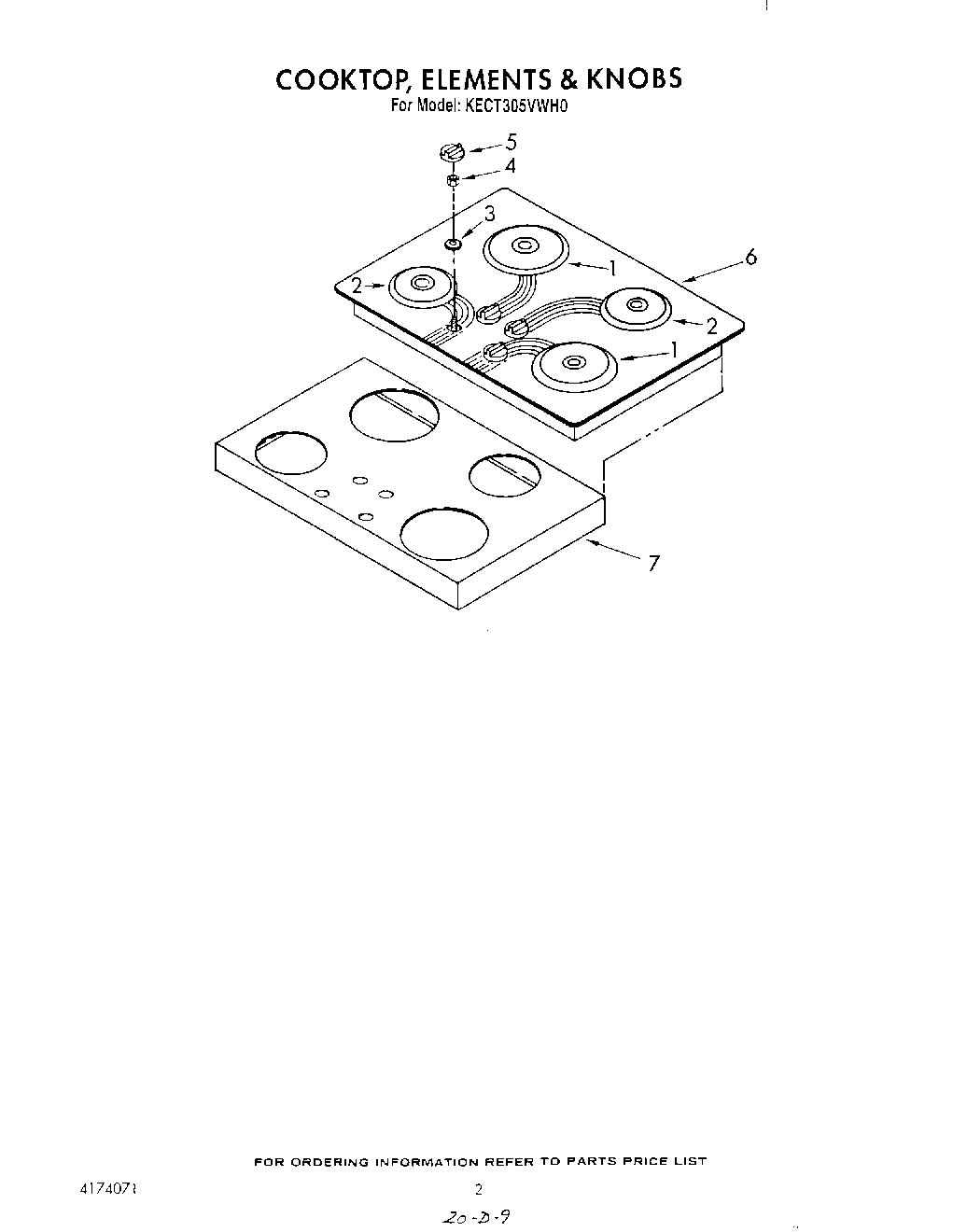

PositionProduct
1WP3147132 Whirlpool Surface Element
2WP3147131 Whirlpool Surface Element
3seal (4) control switch grommet
4Nut, Hex Jam (4)
5control knob (4)
6cooktop, glass (black)
6cooktop, glass (almond)
6cooktop, glass (white)
7Insert (4)
7dressing, element
7burner box
7cover, burner box
7seal, foam tape
7Hardware, Mounting
7adhesive
