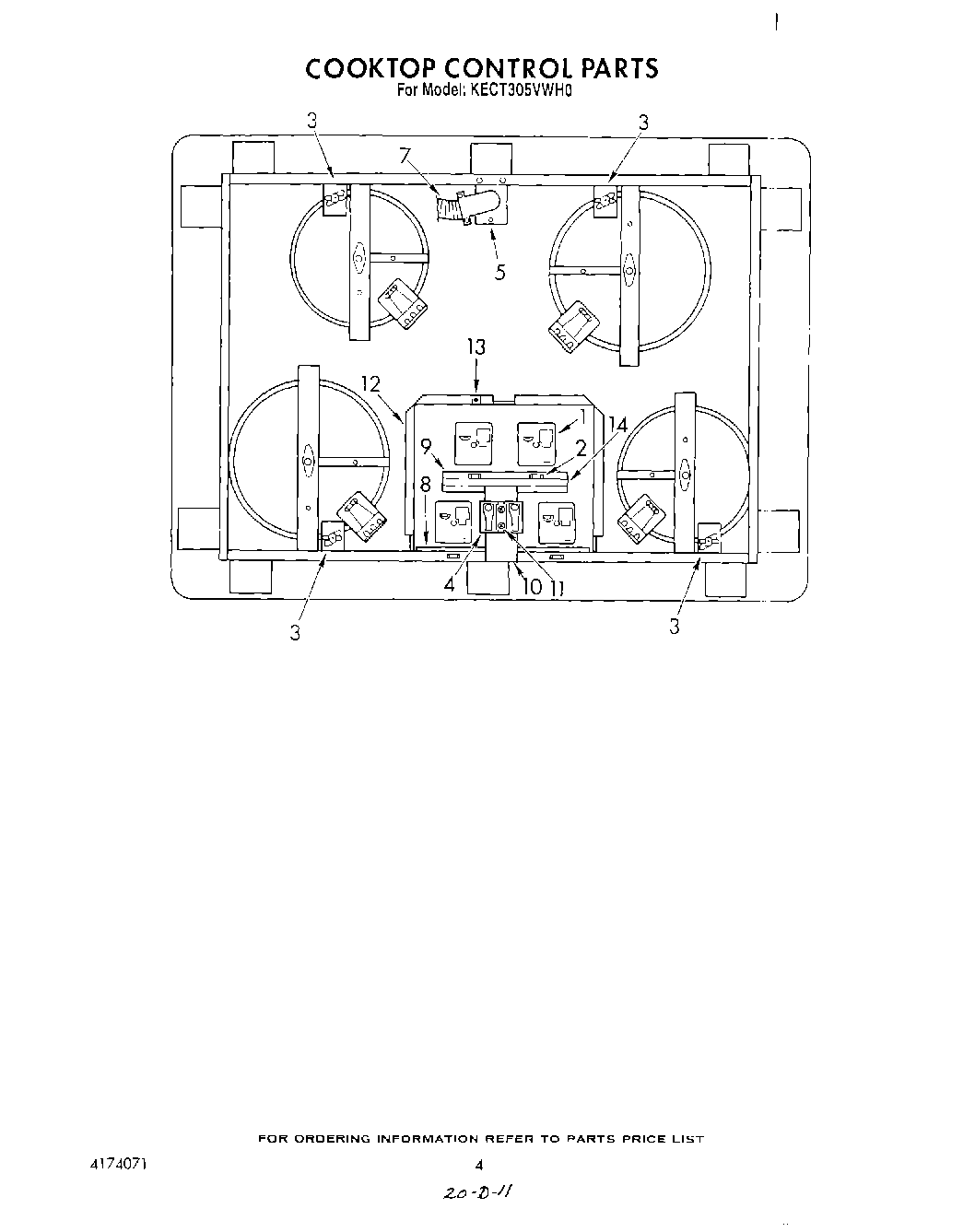

KECT305VAL0 04 – SECTION

Products

Position	Product
1	W10900107 Whirlpool Oven Surface Element Switch
2	indicator light (4)
3	limit control (4)
4	Block, Terminal
5	bracket, conduit mounting
7	Conduit, 1/2“ Flexible
8	bracket, front indicator light mounting
9	bracket, rear indicator light mounting
10	bracket, terminal block
11	screw, No.10-16 x 3/4
12	enclosure, switch wiring
13	speed nut (3)
14	bracket, indicator light support
14	limiter-RF burner
14	terminal block-RF infinite switch
14	pilot light assy
14	terminal block-LR & RR infinite switch (2)
14	limiter-RF & LF infinite switch (2)
14	limiter-LR burner
14	limiter-RR burner
14	limiter-LR infinite switch
14	limiter-RR infinite switch
14	indicator light-infinite switch & terminal block-LF infinite switch (5)
14	terminal block-RF, RR, & LR
14	RF infinite switch-RF burner
14	LF infinite switch-LF burner
14	LR infinite switch-LR burner
14	RR infinite switch-RR burner
14	limiter-LF burner
