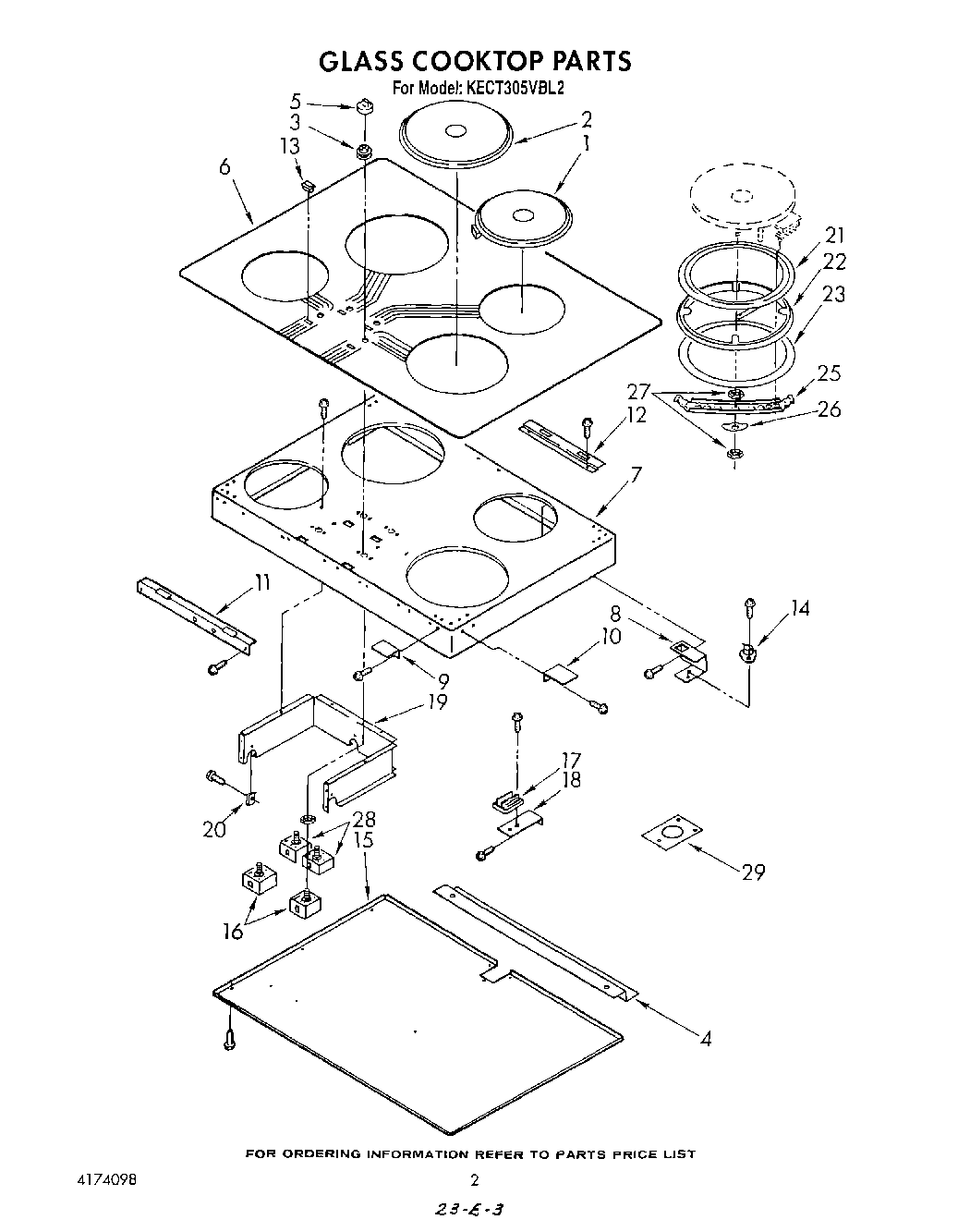

KECT305VBL2 02 – SECTION

Products

Position	Product
1	WP3147131 Whirlpool Surface Element
2	WP3147132 Whirlpool Surface Element
3	seal (4) control switch grommet
4	bracket, indicator light support
5	control knob (4)
5	Control Knob (4) (White)
5	Control Knob (4) (Almond)
6	Cooktop, Glass (White)
6	Cooktop, Glass (Almond)
6	Cooktop, Glass (Black)
7	burner box
8	bracket, element locator (4)
9	bracket, glass support (large)
10	bracket, glass support (small)
11	bracket, front indicator light mounting
12	bracket, rear indicator light mounting
13	indicator light (4)
14	limit control (4)
15	cover, burner box
16	Nut, Hex Jam (4)
16	W10900107 Whirlpool Oven Surface Element Switch
17	Block, Terminal
18	bracket, terminal block
18	screw, No.10-16 x 3/4
19	Screw, (2)
19	enclosure, switch wiring
20	Screw
20	Screw (4)
20	speed nut (3)
20	Screw
21	ring, intermediate (1.5 KW-white)
21	ring, intermediate (2.0 KW-black)
21	ring, intermediate (2.0 KW-almond)
21	ring, intermediate (1.5 KW-black)
21	ring, intermediate (1.5 KW-almond)
21	ring, intermediate (2.0 KW-white)
22	gasket, ring (1.5 KW)
22	gasket, ring (2.0 KW)
23	seal, element
23	WPL 3179362
25	bracket, element (2.0 KW)
25	bracket, element (1.5 KW)
26	Spring, Leaf
27	Bushing, Fiber
27	hex nut (8)
29	WPL 3180221
29	pilot light assy
29	Hardware, Mounting
29	WPL 3179589
29	WPL 3179359
29	WPL 3177149
29	WPL 3177087
29	bracket, conduit mounting
29	WPL 4174098
