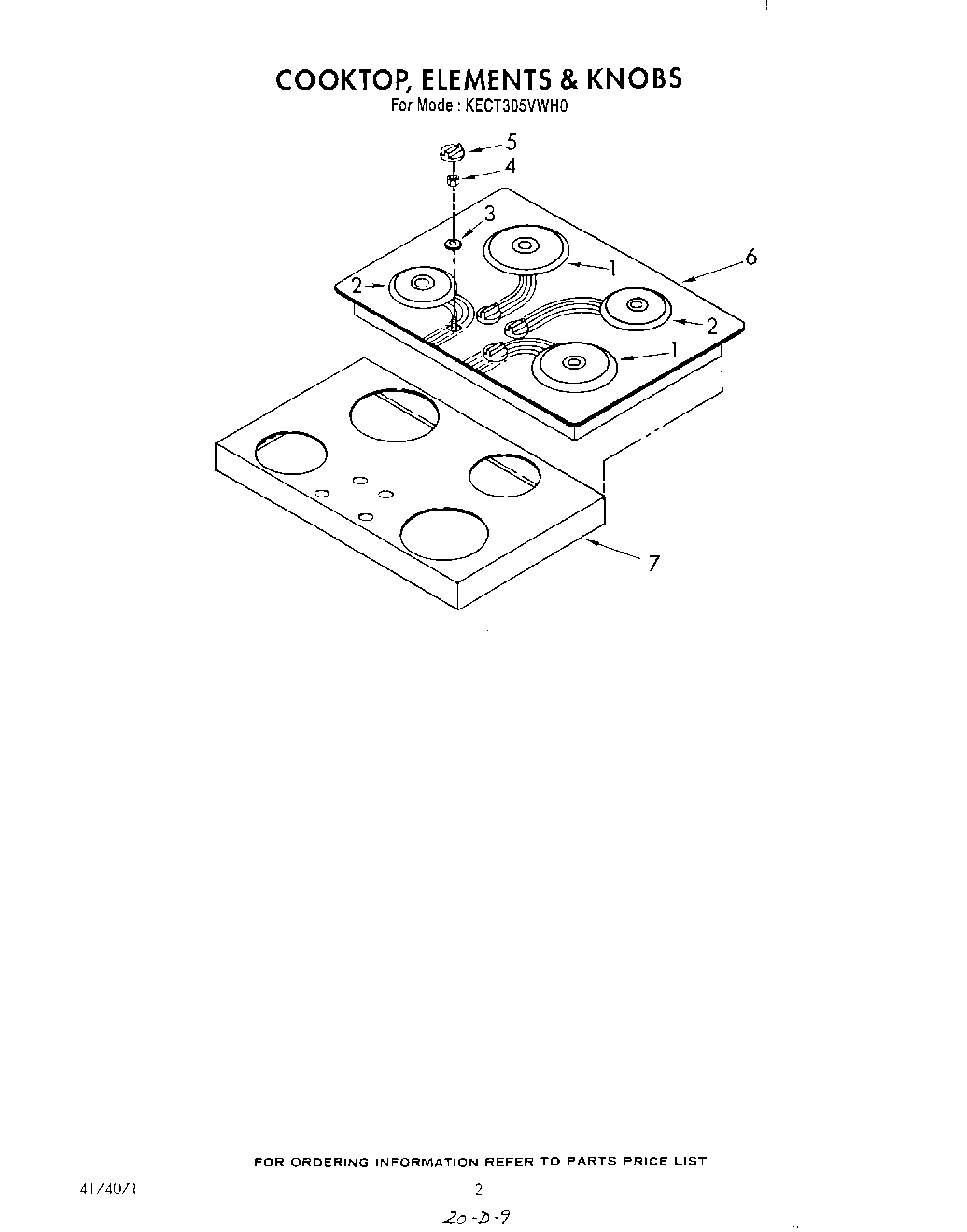

KECT305VWH0 02 – SECTION

Written by

Products

Position	Product
1	WP3147132 Whirlpool Surface Element
2	WP3147131 Whirlpool Surface Element
3	seal (4) control switch grommet
4	Nut, Hex Jam (4)
5	control knob (4)
6	cooktop, glass (black)
6	cooktop, glass (almond)
6	cooktop, glass (white)
7	Insert (4)
7	dressing, element
7	burner box
7	cover, burner box
7	seal, foam tape
7	Hardware, Mounting
7	adhesive
