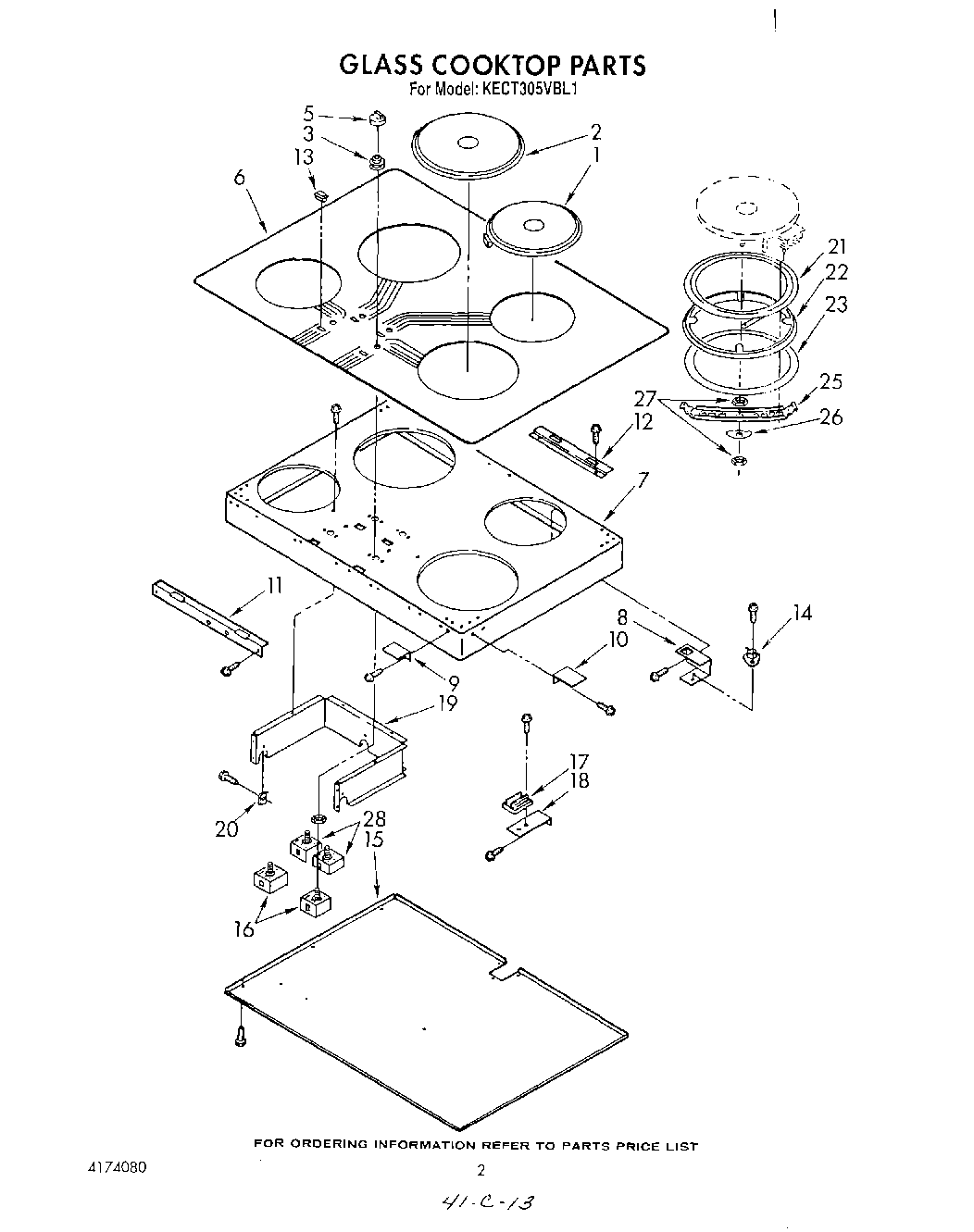

| 1 | WP3147131 Whirlpool Surface Element |
| 2 | WP3147132 Whirlpool Surface Element |
| 3 | seal (4) control switch grommet |
| 5 | Control Knob (4) (Almond) |
| 5 | Control Knob (4) (White) |
| 5 | control knob (4) |
| 6 | cooktop, glass (black) |
| 6 | cooktop, glass (almond) |
| 6 | cooktop, glass (white) |
| 7 | burner box |
| 8 | bracket, element locator (4) |
| 9 | bracket, glass support (large) |
| 10 | bracket, glass support (small) |
| 11 | bracket, front indicator light mounting |
| 12 | bracket, rear indicator light mounting |
| 13 | indicator light (4) |
| 14 | limit control (4) |
| 15 | cover, burner box |
| 16 | W10900107 Whirlpool Oven Surface Element Switch |
| 16 | Nut, Hex Jam (4) |
| 17 | Block, Terminal |
| 18 | bracket, terminal block |
| 18 | screw, No.10-16 x 3/4 |
| 19 | enclosure, switch wiring |
| 19 | Screw, (2) |
| 20 | ring, intermediate (1.5 KW-white) |
| 20 | ring, intermediate (1.5 KW-almond) |
| 20 | ring, intermediate (1.5 KW-black) |
| 20 | Screw (4) |
| 20 | ring, intermediate (2.0 KW-white) |
| 20 | ring, intermediate (2.0 KW-almond) |
| 20 | Screw |
| 20 | Screw |
| 20 | ring, intermediate (2.0 KW-black) |
| 20 | speed nut (3) |
| 22 | gasket, ring (1.5 KW) |
| 22 | gasket, ring (2.0 KW) |
| 23 | seal, element |
| 23 | WPL 3179362 |
| 25 | bracket, element (2.0 KW) |
| 25 | bracket, element (1.5 KW) |
| 26 | Spring, Leaf |
| 27 | hex nut (8) |
| 27 | Bushing, Fiber |
| 28 | WPL 4174080 |
| 28 | WPL 3180221 |
| 28 | WPL 3177149 |
| 28 | pilot light assy |
| 28 | Hardware, Mounting |
| 28 | WPL 3179589 |
| 28 | WPL 3179359 |
| 28 | WPL 3177087 |
