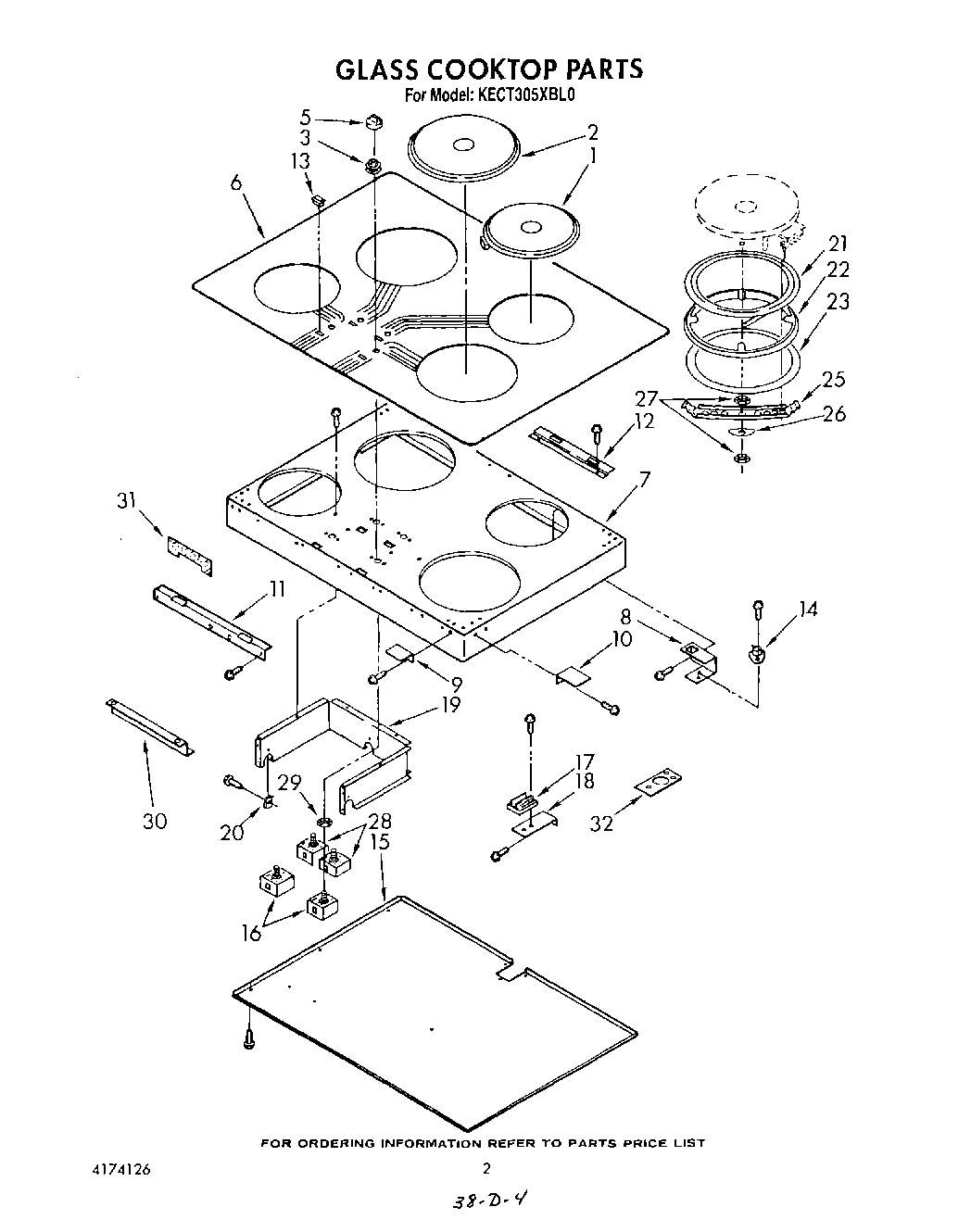

KECT305XAL0 02 – SECTION

KECT305XAL0 02 – SECTION

Written by

in

KECT305XAL0 02 – SECTION

Products

Position	Product
1	WP3147131 Whirlpool Surface Element
2	WP3147132 Whirlpool Surface Element
3	Grommet, Switch Control (4)
5	Control Knob (4) (Almond)
5	Control Knob (4) (White)
5	control knob (4)
6	Cooktop, Glass (Black)
6	Cooktop, Glass (White)
6	Cooktop, Glass (Almond)
7	burner box
8	bracket, element locator (4)
9	bracket, glass support (large)
10	bracket, glass support (small)
11	bracket, front indicator light mounting
12	bracket, rear indicator light mounting
13	indicator light (4)
14	limit control (4)
15	cover, burner box
16	W10900107 Whirlpool Oven Surface Element Switch
16	Nut, Hex Jam (4)
17	Block, Terminal
18	screw, No.10-16 x 3/4
18	bracket, terminal block
19	enclosure, switch wiring
19	Screw, (2)
20	speed nut (3)
20	Screw
20	Screw (4)
20	Screw
21	ring, intermediate (2.0 KW-white)
21	ring, intermediate (1.5 KW-almond)
21	ring, intermediate (1.5 KW-black)
21	ring, intermediate (2.0 KW-black)
21	ring, intermediate (2.0 KW-almond)
21	ring, intermediate (1.5 KW-white)
22	gasket, ring (2.0 KW)
22	gasket, ring (1.5 KW)
23	Gasket, Element (6“ Bur
23	WPL 3181378
25	bracket, element (1.5 KW)
25	bracket, element (2.0 KW)
26	Spring, Leaf
27	hex nut (8)
27	Bushing, Fiber
29	WPL 3181192
30	bracket, indicator light support
31	WPL 3179774
32	Hardware, Mounting
32	seal, foam tape
32	limiter-RR infinite switch
32	bracket, conduit mounting
32	pilot light assy
32	LR infinite switch-LR burner
32	LF infinite switch-LF burner
32	limiter-RR burner
32	limiter-LR burner
32	terminal block-LR & RR infinite switch (2)
32	limiter-LF burner
32	WPL 4174126
32	WPL 3177087
32	WPL 3177149
32	WPL 3179338
32	WPL 3179340
32	WPL 3179341
32	WPL 3179343
32	WPL 3179351
32	WPL 3179352
32	WPL 3179355
32	WPL 3179359
32	WPL 3179589
32	WPL 3179357
