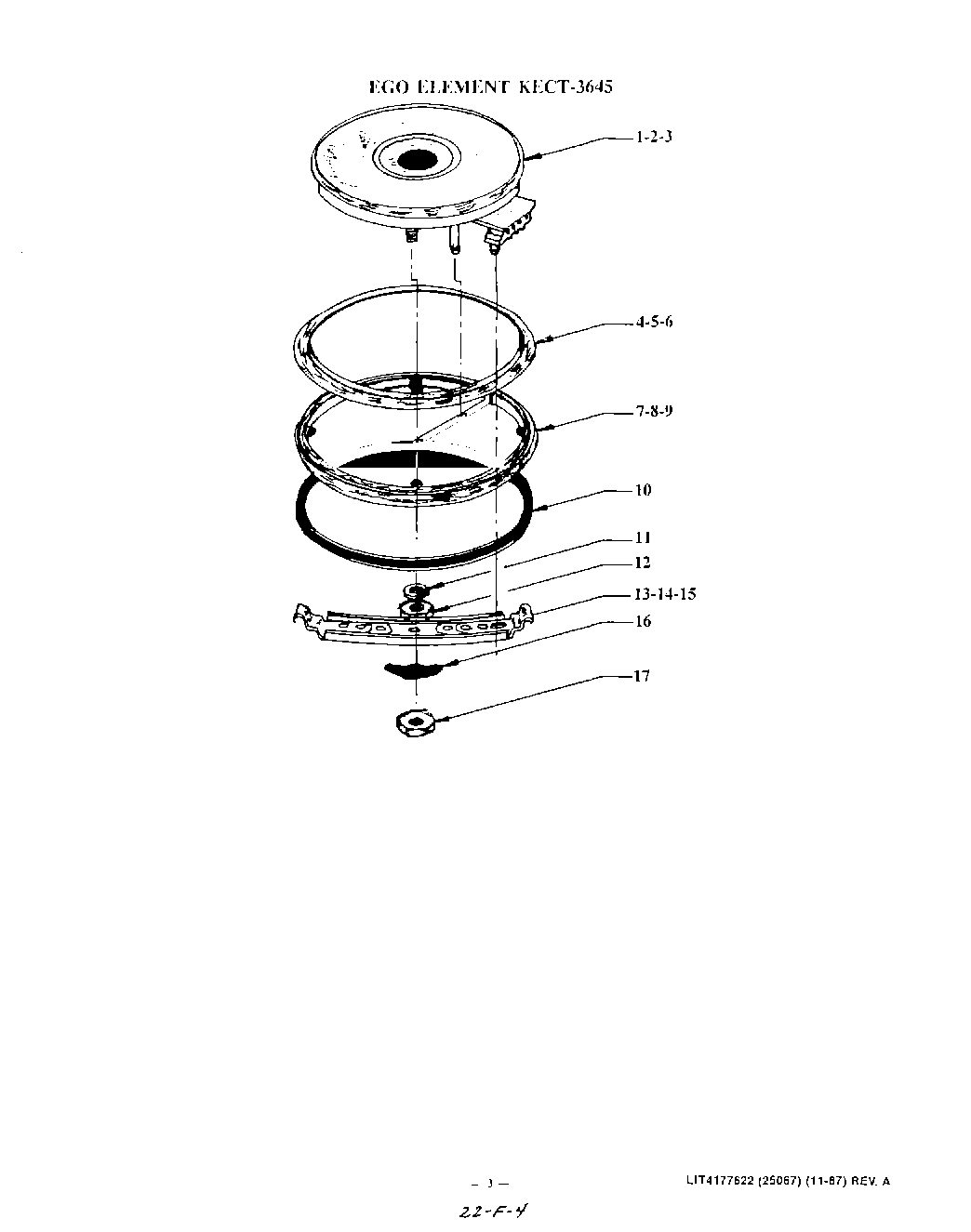

KECT3645 03 – SECTION

KECT3645 03 – SECTION

Written by

in

KECT3645 03 – SECTION

Products

Position	Product
1	Element, 2.6 KW EGO 8“
2	Element, 2.0 KW EGO 7“
3	Element, 1.5 KW EGO 6“
4	Ring, Intermediate 2.6 KW 8“ (Black)
4	Ring, Intermediate 2.6 KW 8“ (Gray)
5	Ring, Intermediate 2.0 KW 7“ (Black)
5	Ring, Intermediate 2.0 KW 7“ (Gray)
6	Ring, Intermediate 1.5 KW 6“ (Black)
6	Ring, Intermediate 1.5 KW 6“ (Gray)
7	Collar, 2.6 KW Element 8“
8	Collar, 2.0 KW Element 7“
9	Collar, 1.5 KW Element 6“
10	Seal, Element
11	Washer, Lock
12	Nut, MM6, Hex
13	Bracket, 2.6 KW Element
14	Bracket, 2.0 KW Element
15	Bracket, 1.5 KW Element
16	Spring, Element Leaf
17	Nut, MM6 Hex, half-nut
