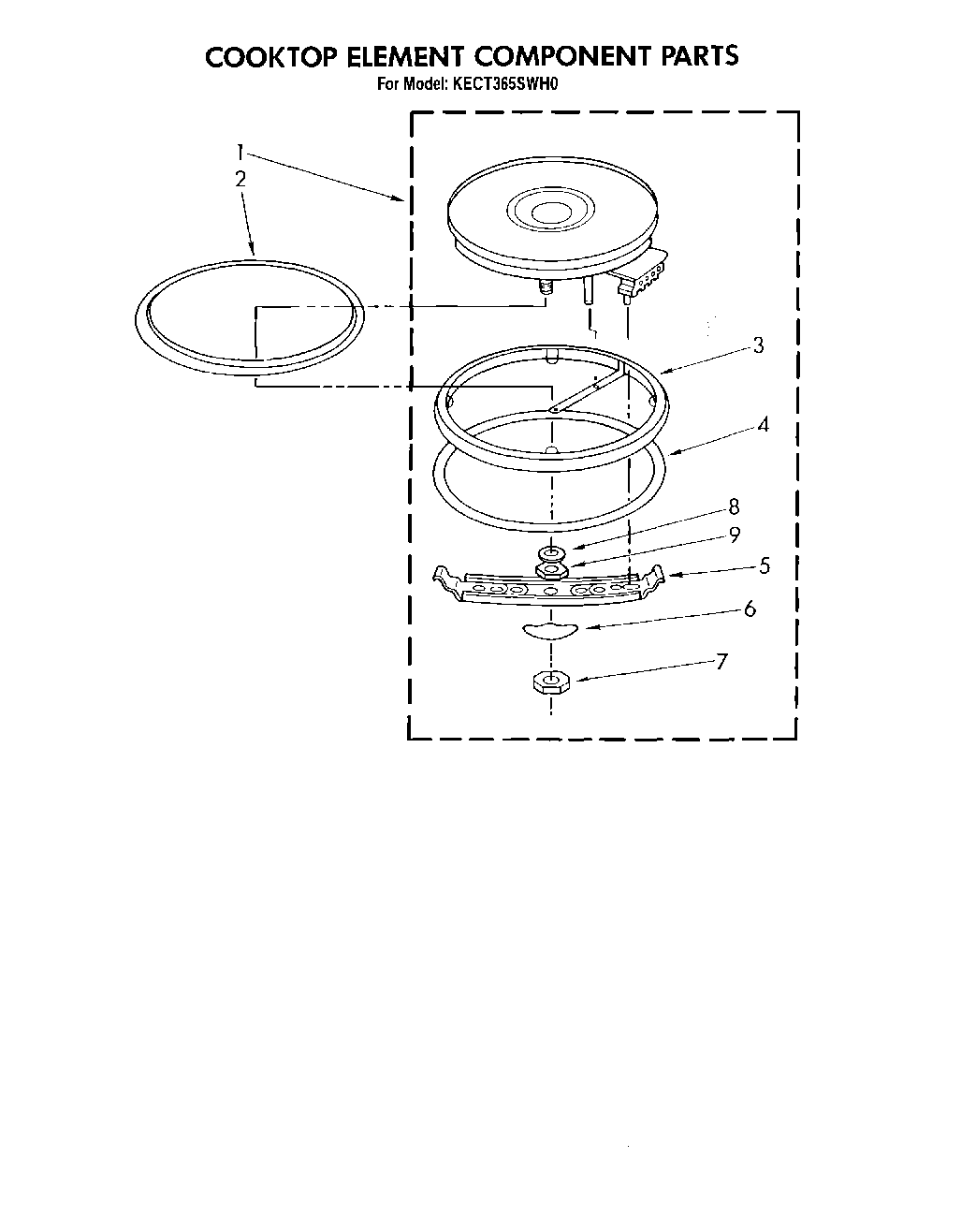

KECT365SWH0 03 – COOKTOP ELEMENT COMPONENTadmin2025-04-26T09:35:50+00:00KECT365SWH0 03 – COOKTOP ELEMENT COMPONENT
Products
| Position | Product |
|---|
| 1 | Element (2.0 KW EGO) |
| 1 | Element (1.5 KW EGO) |
| 1 | Element (2.6 KW EGO) |
| 2 | Ring, Intermediate (2.6 KW) |
| 2 | Ring, Intermediate (1.5 KW (White)) |
| 2 | Ring, Intermediate (2.0 KW (Almond)) |
| 3 | Collar, Element (2.0 KW) |
| 3 | Collar, Element (1.5 KW) |
| 3 | Collar, Element (2.6 KW) |
| 4 | Seal, Element |
| 5 | Bracket, Element (2.6 KW) |
| 5 | Bracket, Element (1.5 KW) |
| 5 | Bracket, Element (2.0 KW) |
| 6 | Spring, Element Leaf |
| 7 | Nut, MM, Hex, Halfnut |
| 8 | Lockwasher |
| 9 | Nut, MM6, Hex |
