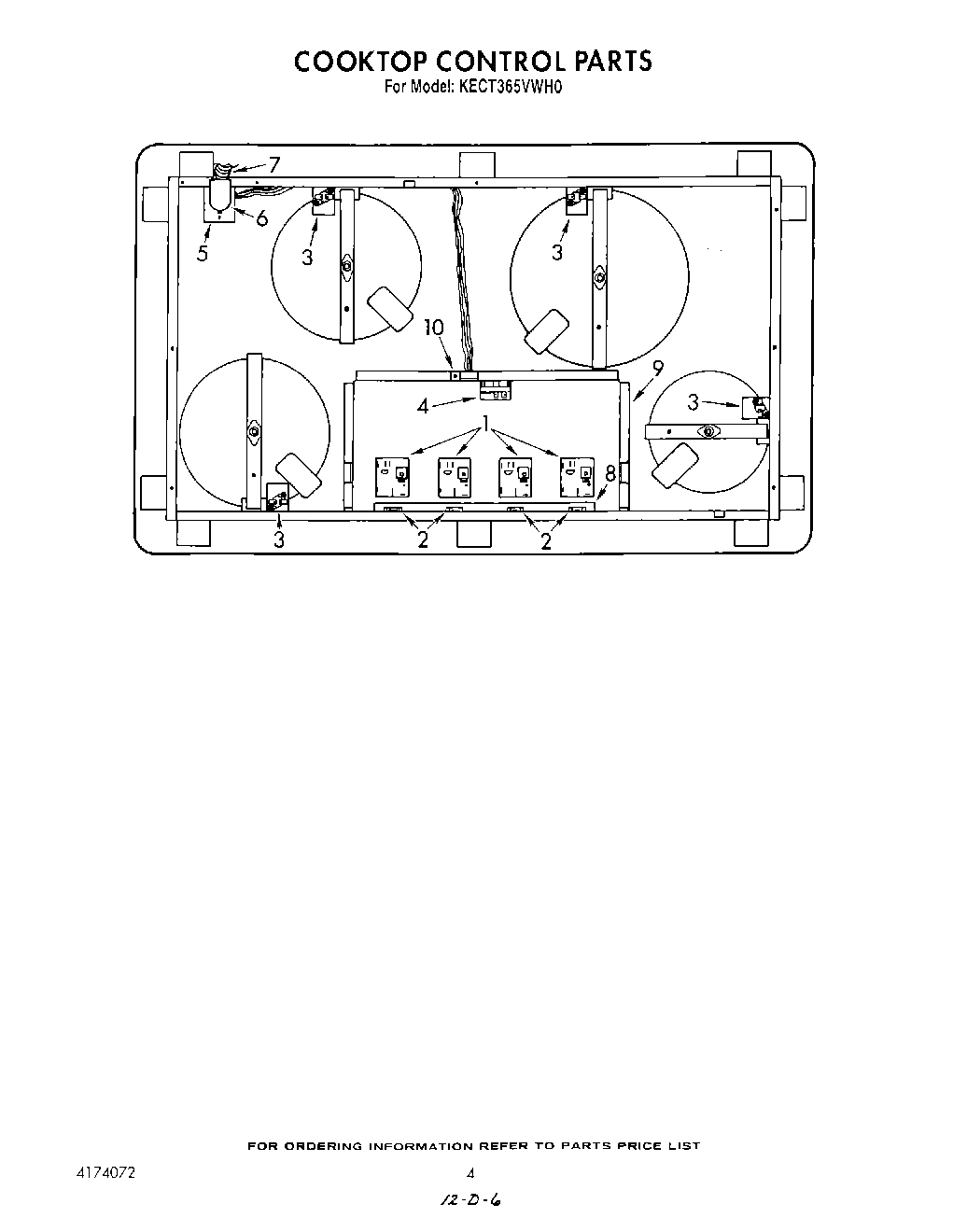

KECT365VAL0 04 – SECTION

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Guide, Use & Care
1	W10900107 Whirlpool Oven Surface Element Switch
2	indicator light (4)
3	limit control (4)
4	Block, Terminal
5	bracket, conduit mounting
6	Conduit Harness Assy. (Includes No.5 & No.7)
7	Conduit, 1/2“ Flexible
8	Bracket, Light Mount
9	Enclosure, Switch Wiring
10	WPL 3179352
10	WPL 3179355
10	WPL 3179357
10	pilot light assy
10	limiter-LR burner
10	terminal block-LR & RR infinite switch (2)
10	WPL 3179351
10	WPL 3179343
10	WPL 3179341
10	LR infinite switch-LR burner
10	LF infinite switch-LF burner
10	indicator light-infinite switch & terminal block-LF infinite switch (5)
10	limiter-RR infinite switch
10	speed nut (3)
10	limiter-RR burner
10	WPL 3179338
10	WPL 3179340
10	limiter-LF burner
