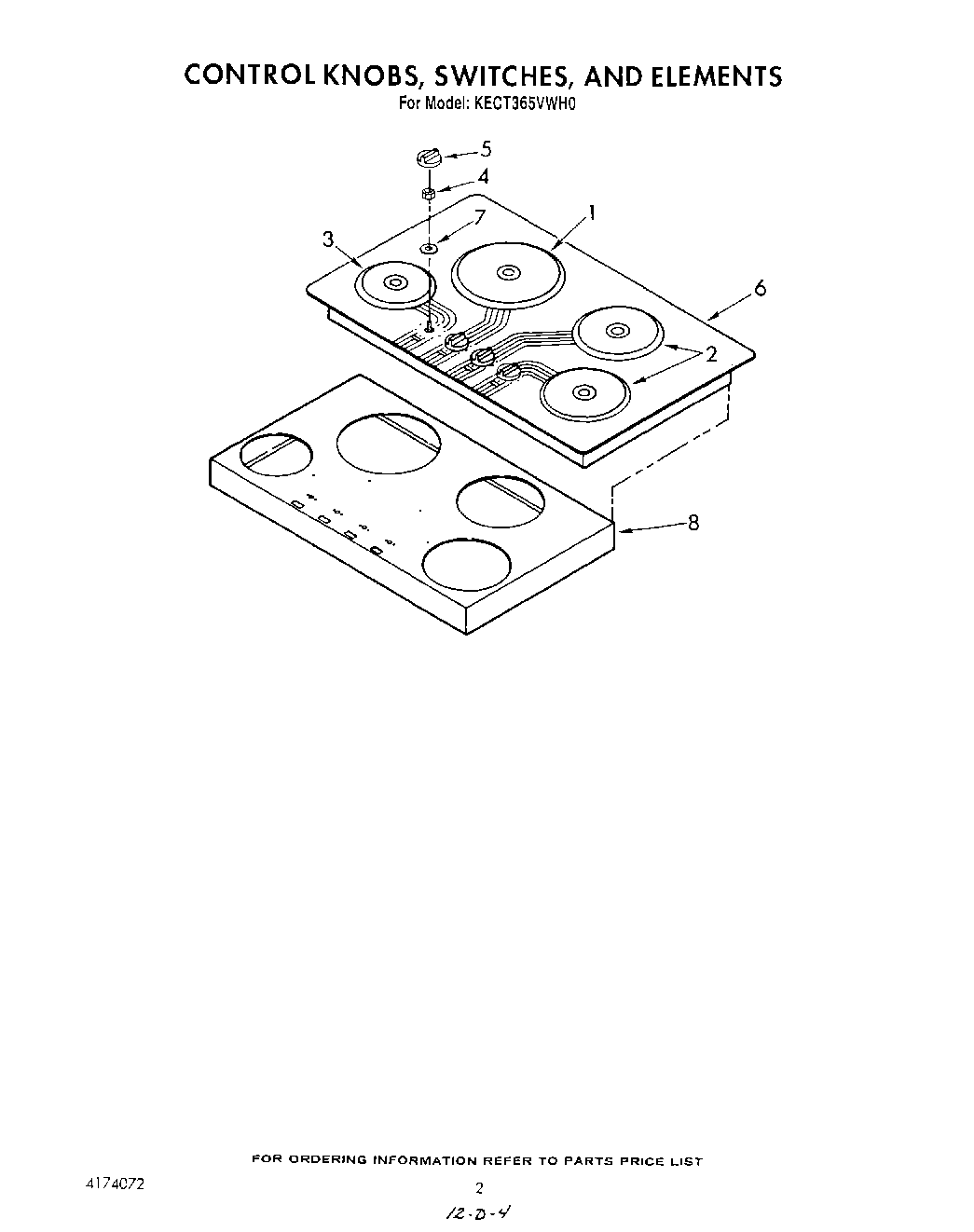

KECT365VWH0 02 – SECTION

Products

Position	Product
1	Element, Solid 9“
2	WP3147132 Whirlpool Surface Element
3	WP3147131 Whirlpool Surface Element
4	Nut, Hex Jam (4)
5	control knob (4)
6	Cooktop, Glass (Almond)
6	Cooktop, Glass (White)
6	Cooktop, Glass (Black)
7	seal (4) control switch grommet
8	Hardware, Mounting
8	Burner Box
8	Cover, Box Burner
8	seal, foam tape
8	adhesive
