KECT365XBL0 02 – SECTION

KECT365XBL0 02 – SECTION

Written by

in

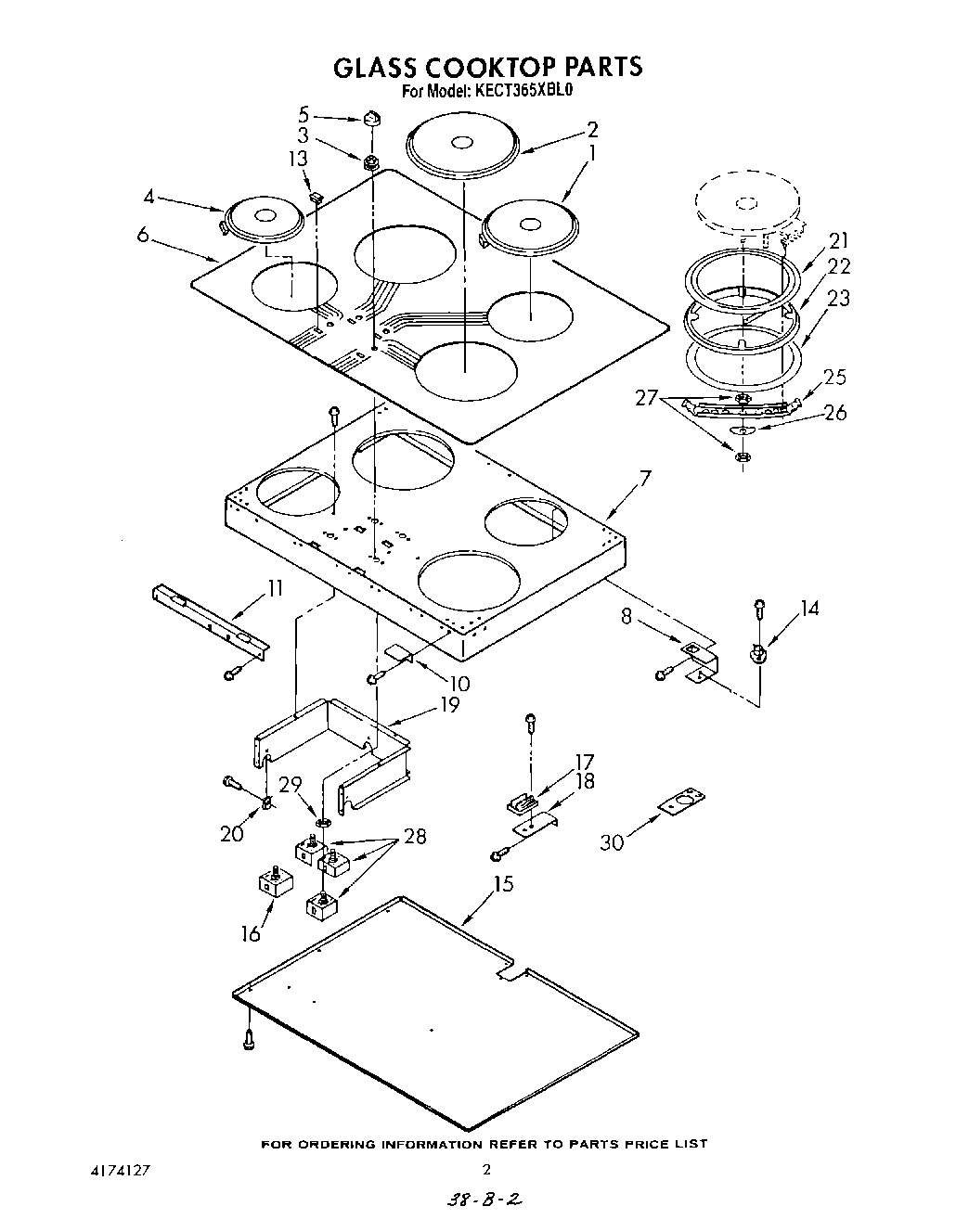

KECT365XBL0 02 – SECTION

Products

Position	Product
1	WP3147132 Whirlpool Surface Element
2	Element, Solid 9“
3	Grommet, Switch Control (4)
4	WP3147131 Whirlpool Surface Element
5	control knob (4)
5	Control Knob (4) (White)
5	Control Knob (4) (Almond)
6	Cooktop, Glass (White)
6	Cooktop, Glass (Black)
6	Cooktop, Glass (Almond)
7	Burner Box
8	bracket, element locator (4)
10	bracket, glass support (small)
11	Bracket, Light Mount
13	indicator light (4)
14	limit control (4)
15	Cover, Box Burner
16	W10900107 Whirlpool Oven Surface Element Switch
16	Nut, Hex Jam (4)
17	Block, Terminal
18	bracket, terminal block
19	Screw, (2)
19	Enclosure, Switch Wiring
20	speed nut (3)
20	Screw
20	Screw
20	screw, No.10-16 x 3/4
21	Ring, Intermediate 8“ Burner 2.0KW (White)
21	Ring, Intermediate 8`
21	WPL 3179156
21	ring, intermediate (1.5 KW-black)
21	ring, intermediate (2.0 KW-white)
21	ring, intermediate (2.0 KW-black)
21	ring, intermediate (2.0 KW-almond)
21	ring, intermediate (1.5 KW-white)
21	ring, intermediate (1.5 KW-almond)
22	gasket, ring (1.5 KW)
22	WPL 3179147
22	gasket, ring (2.0 KW)
23	WPL 3181379
23	WPL 3181378
23	Gasket, Element (6“ Bur
25	bracket, element (1.5 KW)
25	bracket, element (2.0 KW)
25	WPL 3179157
26	Spring, Leaf
27	hex nut (8)
27	Bushing, Fiber
29	WPL 3181192
30	limiter-LR burner
30	terminal block-LR & RR infinite switch (2)
30	WPL 4174127
30	limiter-RR infinite switch
30	Conduit Harness Assy. (Includes No.5 & No.7)
30	WPL 3180221
30	limiter-RR burner
30	LR infinite switch-LR burner
30	pilot light assy
30	Hardware, Mounting
30	limiter-LF burner
30	WPL 3177087
30	WPL 3177149
30	WPL 3179338
30	WPL 3179340
30	WPL 3179341
30	WPL 3179343
30	WPL 3179351
30	WPL 3179352
30	WPL 3179355
30	WPL 3179589
30	WPL 3179357
30	LF infinite switch-LF burner
30	bracket, conduit mounting
