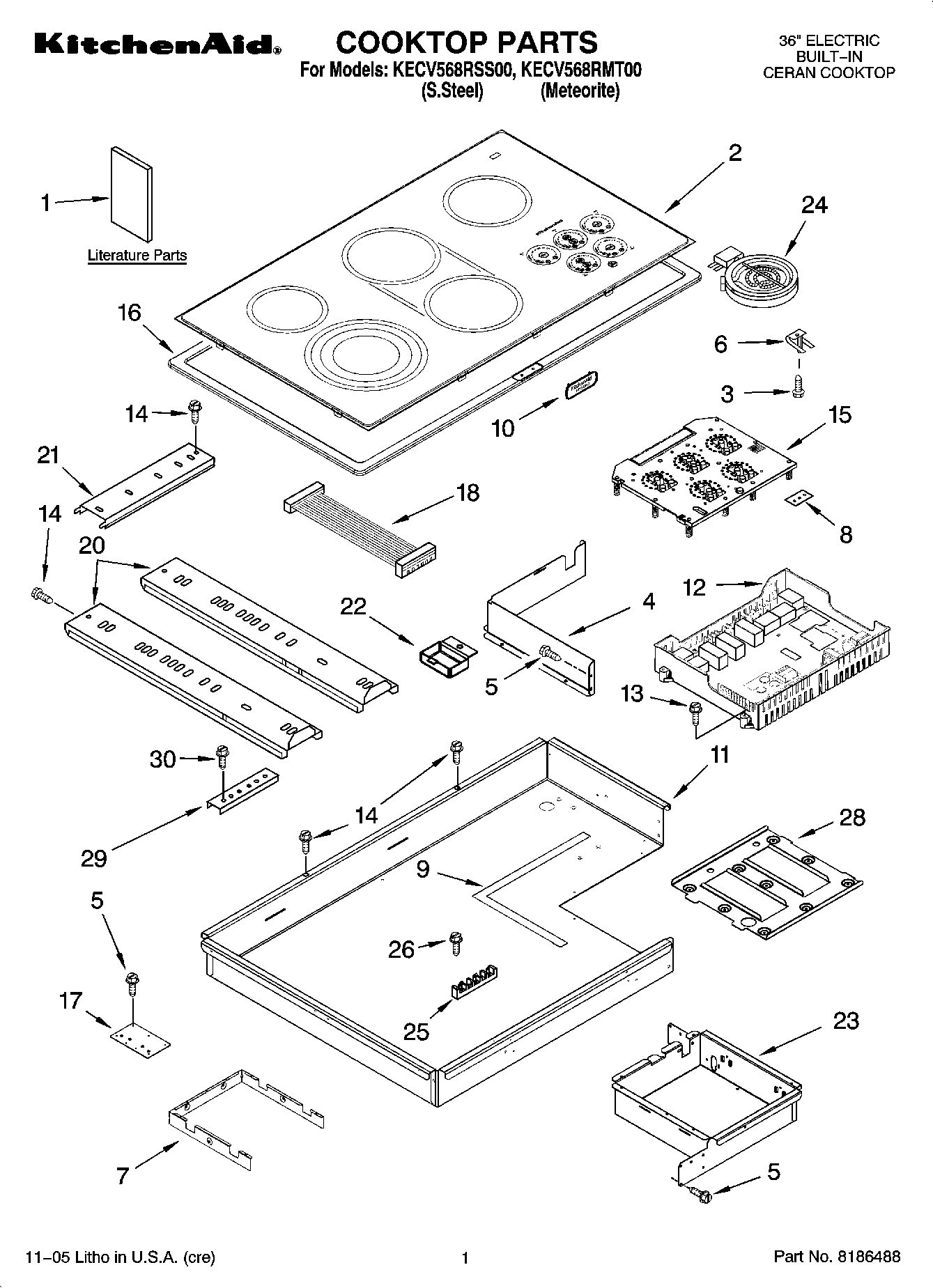

KECV568RMT00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI84744A9
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Cleaner, Stainless Steel
	Bracket, Support (2)
	WPL ARI84745A8
	8286381 Whirlpool Oven Wire Harness
	Seal, Foam (36“)
	Clip, Harnes
	WPL 8286444
	WPL ARI84742A3
	WPL ARI84743A6
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Green)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire, 25` Roll (Red 14 Ga.)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
1	INSTALLATION INSTRUCTIONS
1	Tech Sheet
1	Safe Cooking Tips
1	Use & Care Guide
1	Safe Cooking Tips (French)
2	Cooktop, Glass
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	NAMEPLATE
11	Box, Burner
12	Board, Power
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	WP8285924 Whirlpool Electronic Control Board
16	Frame, Cooktop (Meteorite)
16	Frame, Cooktop (S.Steel)
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
22	8285593 Whirlpool Oven Wire Cover
23	Box, Touch Control
24	Element, Surface (4300W Center)
24	WP8285230 Whirlpool Surface Element
24	Element, Surface (2500/1800/900W LF)
24	WP4453907 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
