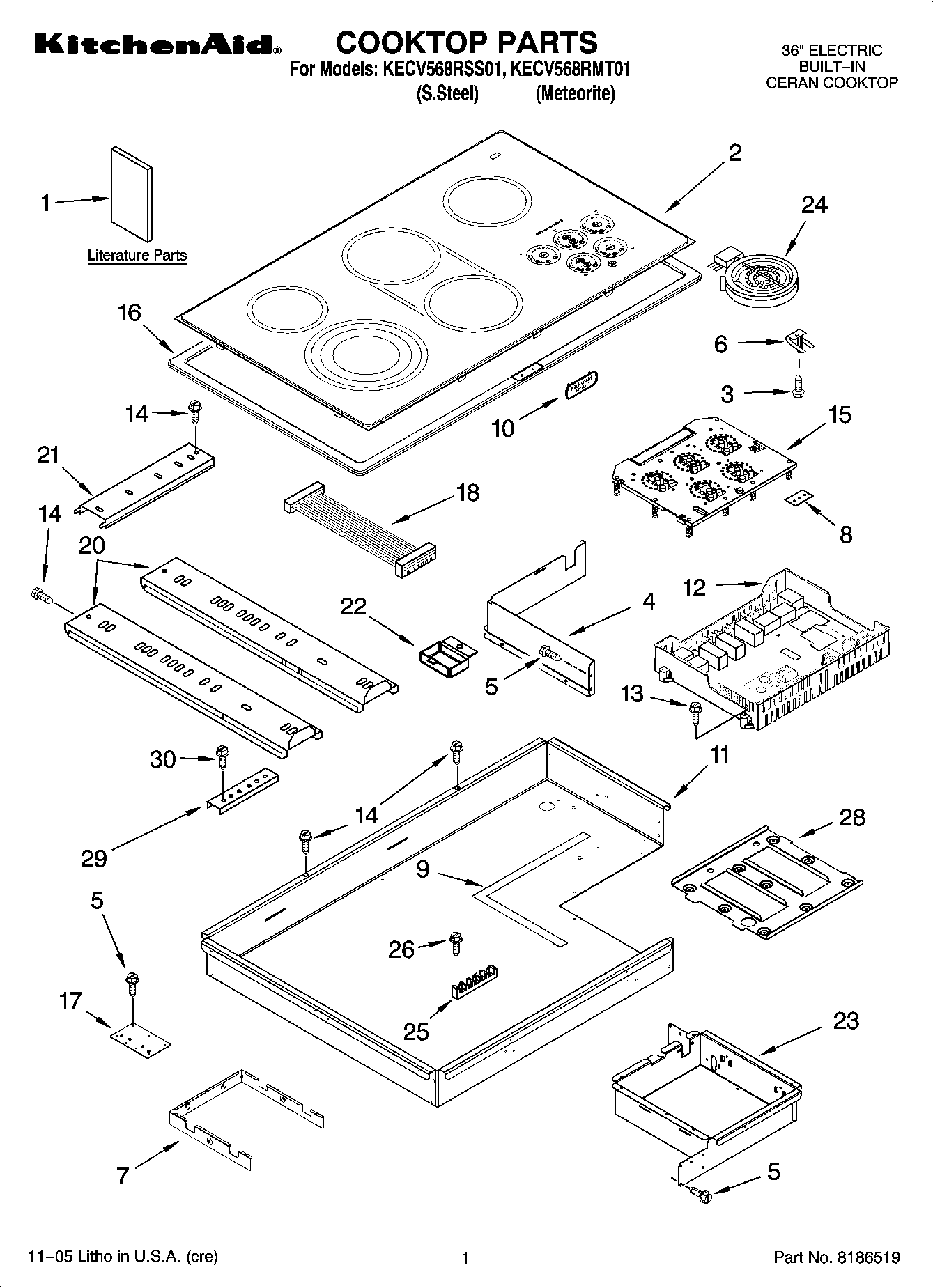

KECV568RSS01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI84757A8
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Cleaner, Stainless Steel
	Seal, Foam (36“)
	8286381 Whirlpool Oven Wire Harness
	Bracket, Support (2)
	Clip, Harnes
	WPL 8286444
	WPL ARI84754A3
	WPL ARI84755A6
	WPL ARI84756A7
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire, 25“ Roll (White 14 GA.)
	Wire (14 Ga. 150 c Green)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS
1	Tech Sheet
1	Safe Cooking Tips
1	Safe Cooking Tips (French)
2	Cooktop, Glass
3	WP486754 Whirlpool Compactor Screw
4	Wall, Inside
5	W10491985 Whirlpool Screw
6	9759094 Whirlpool Spring
7	Shield, Heat
8	W10491984 Whirlpool Switch Seal
9	Seal, Heat Shield
10	NAMEPLATE
11	Box, Burner
12	Board, Power
13	WP4449745 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	WP8285924 Whirlpool Electronic Control Board
16	Frame, Cooktop (S.Steel)
16	Frame, Cooktop (Meteorite)
17	Bracket, Bottom
18	Cable Ass`y
20	Rail, Element (2)
21	Rail, Element (1)
22	8285593 Whirlpool Oven Wire Cover
23	Box, Touch Control
24	Element, Surface (2500/1800/900W LF)
24	Element, Surface (4300W Center)
24	WP4453907 Whirlpool Surface Element
24	WP8285230 Whirlpool Surface Element
25	WP8203546 Whirlpool Terminal Block
26	WP3196163 Whirlpool Screw
28	Support, Module
29	8186533 Whirlpool Hardware
30	WP3400093 Whirlpool Screw
