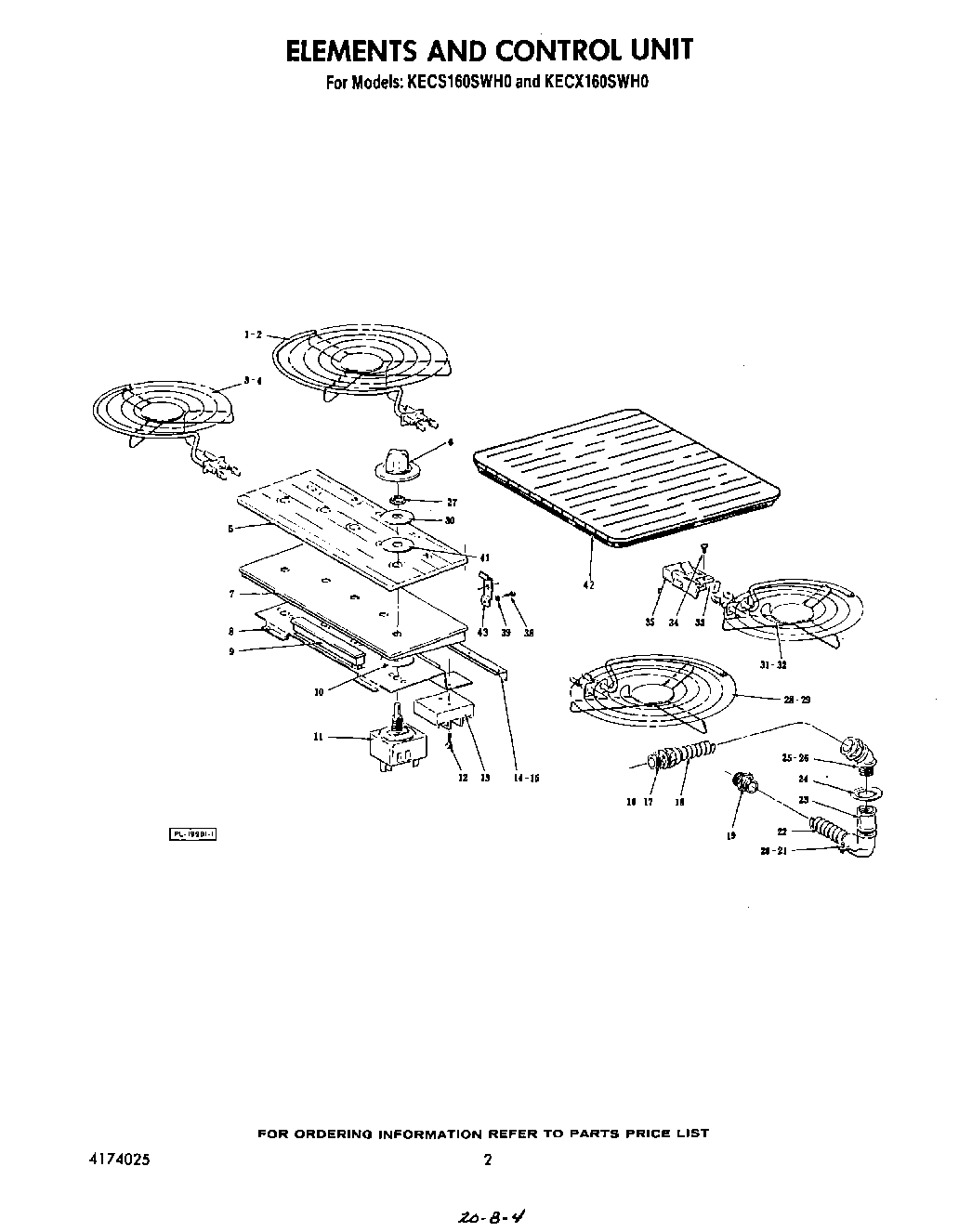

KECX160SWH0 02 – SECTION

Products

Position	Product
	Guide, Use & Care
	WPL LIT4174026
	Repair Parts List
1	WP660533 Whirlpool Oven 8" Surface Element
2	WP3177565 Whirlpool Surface Element
5	Glass, Control Panel
6	Knob, Control (4)
7	Frame, Glass Mounting
8	Bracket, Switch Mounting
9	Indicator Light Assembly
11	Switch, Infinite
12	Screw, Self Tapping (10-16 X 7/8) Phil. Pan Hd.
13	Block, Terminal
15	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
17	Coupling, Pipe 1/2“
18	Conduit, Extra Flexible
19	Conduit Connector
20	Conduit Donnector 90~ X 1/2
21	Bushing, Fiber
22	Conduit, 1/2“ Flexible
23	Coupling, 1/2 Pipe
24	Washer, Reducing
25	Bushing, Conduit
26	Connector, 3/8 X 45o
27	Nut, Hex Jam (4)
29	Element 8“ (2250W 208V.)
30	Washer (4)
31	WPY04100165 Whirlpool Surface Element
32	Element (6“ 1080 Watt 208V.)
33	Clip, Receptacle (4)
34	Screw
35	BURNER RECEPTACLE KIT
38	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
39	Lockwasher, 8 Int. Shake- proof
41	WP3188425 Whirlpool Seal Switch
42	Cutting Board
43	Grill Receptacle Cover
