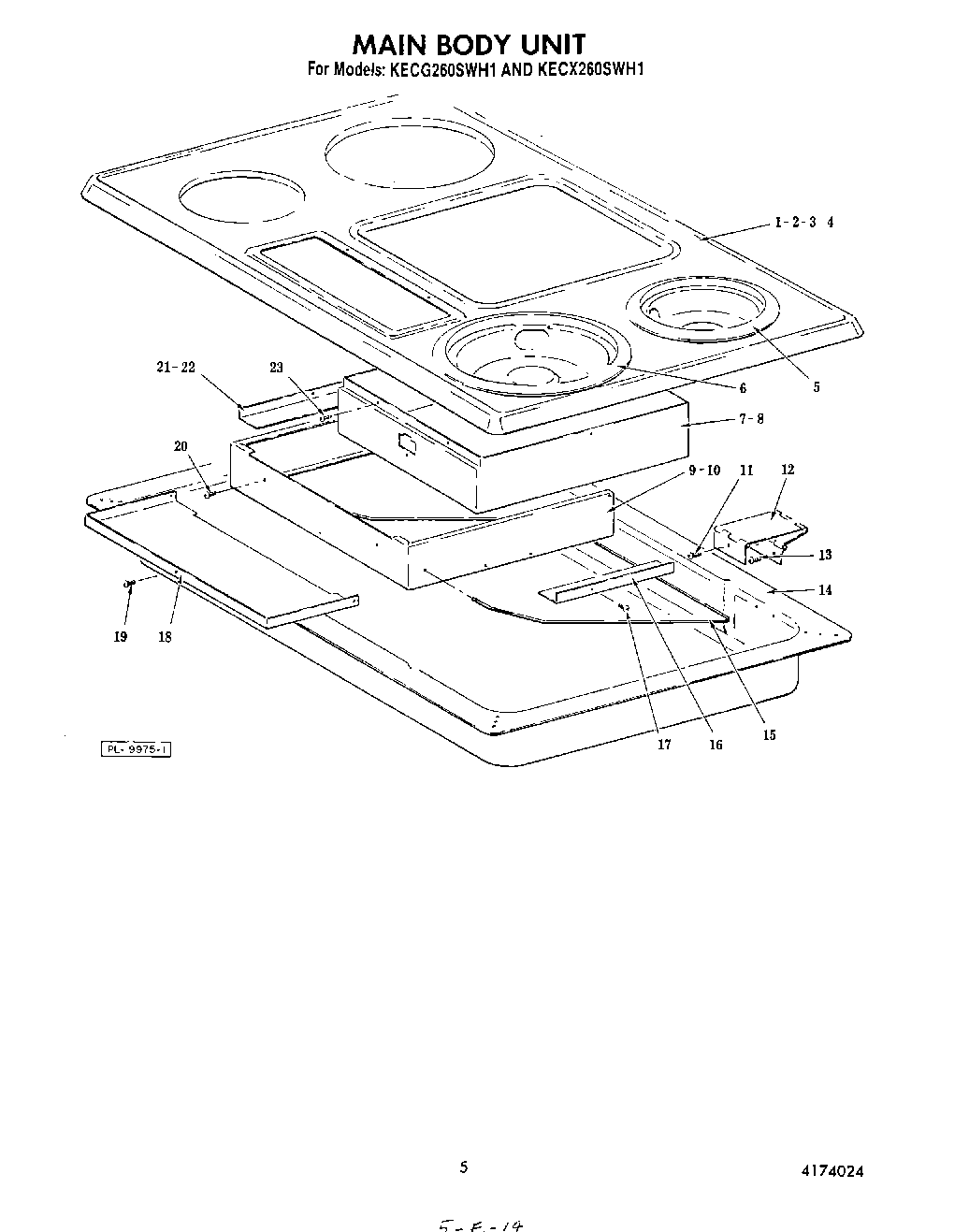

KECX260SWH1 04 – SECTION

Products

Position	Product
1	Cooktop (Brushed Chrome)
2	Cooktop (White)
3	Cooktop (Almond)
4	Cooktop (Onyx Black)
5	WPW10196406 Whirlpool 6" Chrome Drip Bowl
6	DRIP BOWL 8" W/HOLE CHROME
7	Pan, Heat Shield
9	Frame, Outer Substructure
10	Screw, Self Tapping (8-18 X 3/8) Phil. Bind. Hd. Type AB
11	WPW10068250 Whirlpool Dishwasher Screw
12	Hinge (2)
14	Box, Burner (porcelained)
15	Rod, Top Support
16	Cover, Control (Right)
18	Cover, Control (Front)
21	Cover, Control (Left)
23	Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
