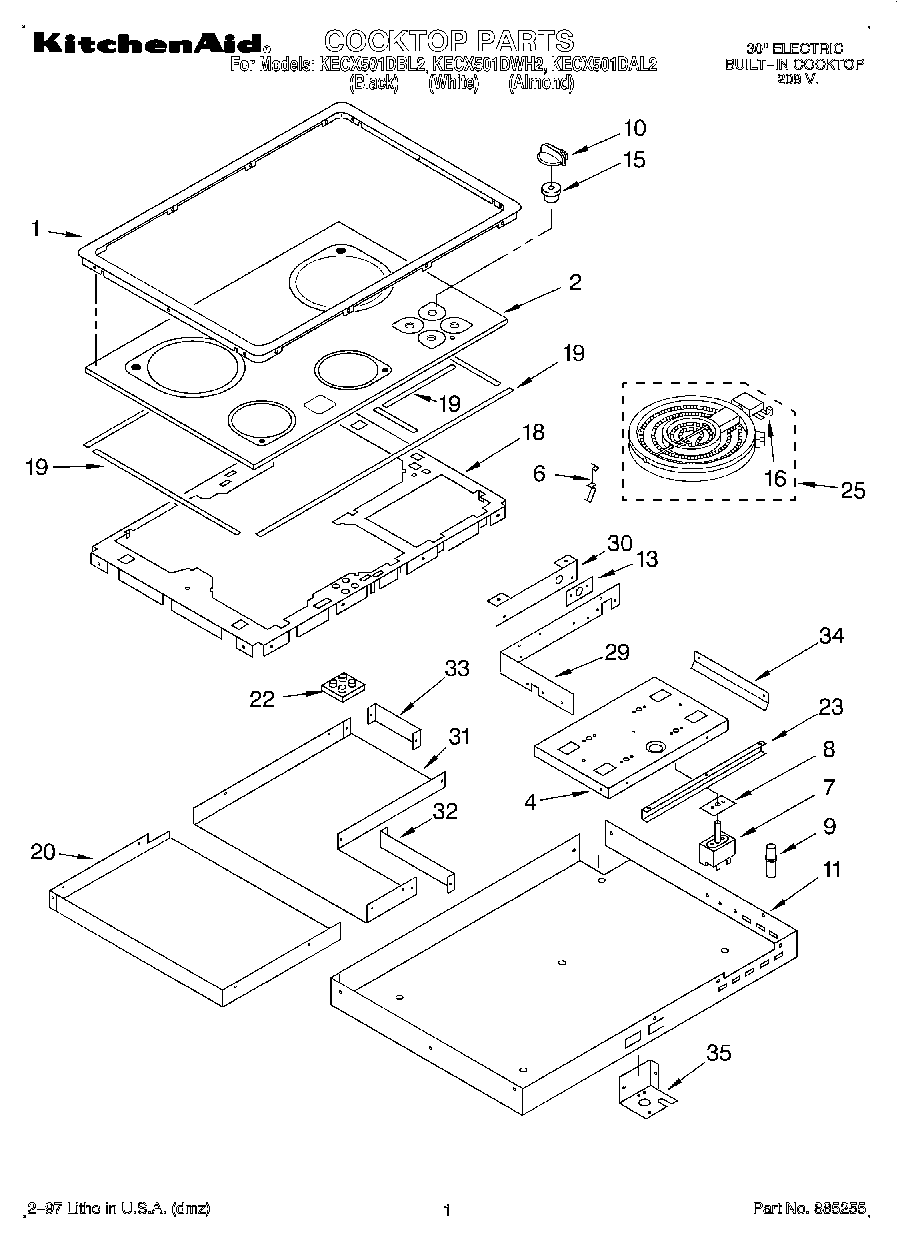

Position	Product
	Clamp (2)
	Hardware Asm.
	WPL 3189757
	Use & Care Guide
	WPL LIT3190372
	WPL 3179589
	Installation Instructions
	Mounting Screws (10A X 2 (2))
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Almond)
1	Trim Ring, Cooktop (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Almond)
4	Bracket, Switch Mounting
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP4454541 Whirlpool Infinite Switch
7	Switch, Infinite (Use W/2400W Left Rear Burner)
8	WP486579 Whirlpool Air Conditioner Screw
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
10	Knobs, Control (4) (Almond)
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Limiter, Temp. (1400 W – LR)
16	Limiter, Temp (2100W – RR)
16	Switch, Limiter (Use W/3189903 Element)
16	Switch, Limiter (Use W/3189907 Element)
18	Plate, Backer
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Controls (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
25	Element, Surface (Includes No.16) (1200W Left Front)
25	Element, Surface (Includes No.16) (1400W Right Fro
25	WPL 3189907
25	WPL 3189906
29	WPL 3188844
30	WPL 3189174
31	WPL 3188102
32	WPL 3188158
33	WPL 3189159
34	WPL 3189036
34	Screw (6)
35	Wire, 25` Roll (Black 14 Ga.)
35	242831 Whirlpool Oven Wire
35	Wire, 25` Roll (Red 14 Ga.)
35	Wire, 25“ Roll (White 14 GA.)
35	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
35	1
35	Wire (14 Ga. 200 c Brown)
35	18 Ga. 80~c Rating (Red)
35	Wire (12 Ga. 150 c Black)
35	Wire (14 Ga. 150 c Yellow)
35	Wire (14 Ga. 150 c Orange)
35	Wire (14 Ga. 150 c Green)
35	Wire (14 Ga. 150 c Brown)
35	WPL 3189273
