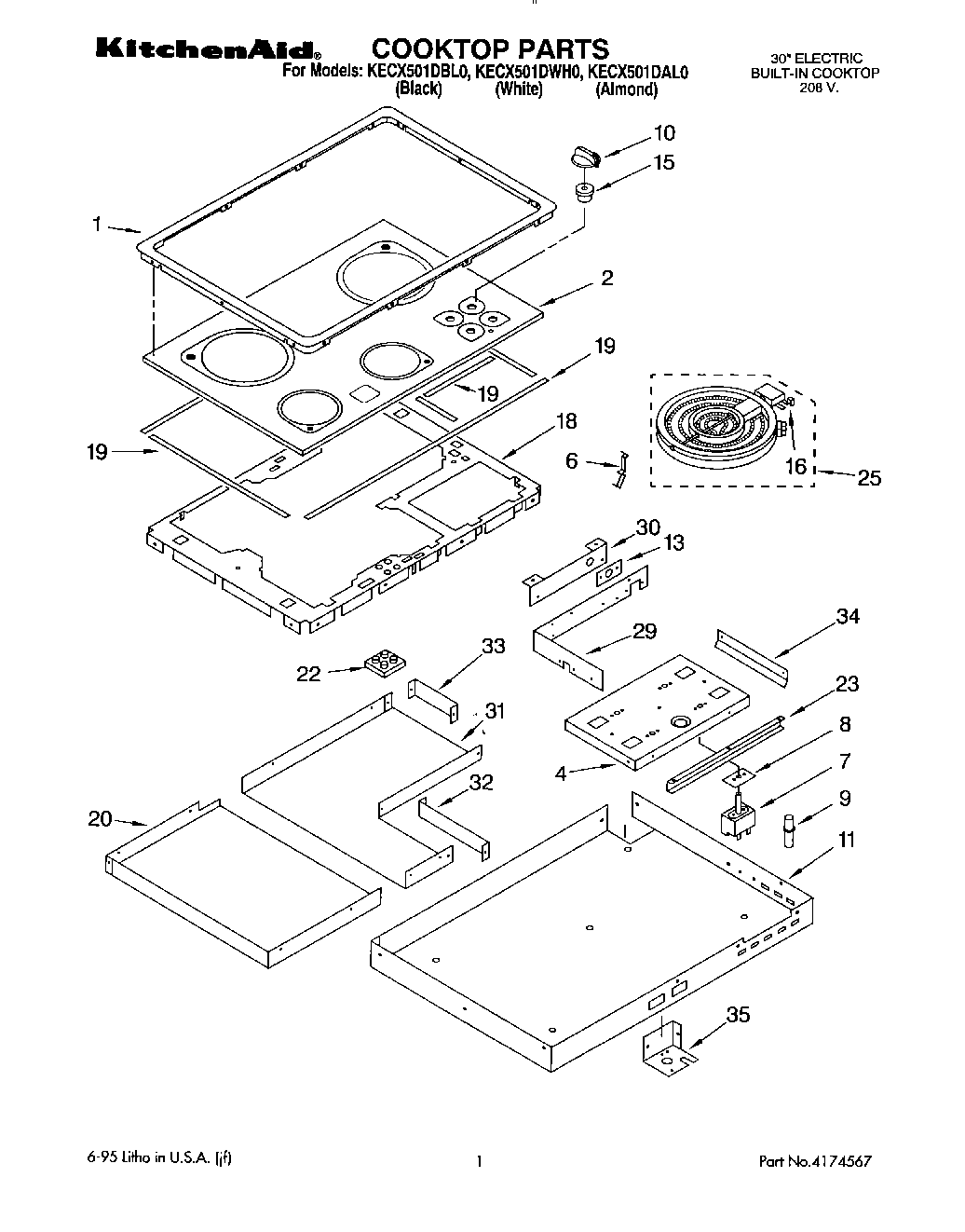

KECX501DWH0 01 – SECTION
Written by
in
KECX501DWH0 01 – SECTION
Products
Position
Product
1
Trim Ring, Cooktop (White)
1
Trim Ring, Cooktop (Black)
1
Trim Ring, Cooktop (Almond)
2
Cooktop, Glass (Almond)
2
Cooktop, Glass (White)
2
Cooktop, Glass (Black)
4
Bracket, Switch Mounting
6
Spring, Locator (8)
6
WP486754 Whirlpool Compactor Screw
7
Switch, Infinite (Use W/2100W Right Rear Burner)
7
Switch, Infinite (Use W/1400W Right Front Burner)
7
Switch, Infinite (Use W/2400W Left Rear Burner)
7
Switch, Infinite (Use W/1200W Left Front Burner)
8
WP486579 Whirlpool Air Conditioner Screw
8
3183956 Whirlpool Oven Seal Switch
9
Light, Indicator
10
WP9750372FF Whirlpool Knob
10
WP9750372FW Whirlpool Knob Assembly
10
Knobs, Control (4) (Almond)
11
Box, Burner
13
Grommet
15
Seal, Inifinite Switch
16
Switch, Limiter (Use W/4454438 Element)
16
Switch, Limiter (Use W/4454441 Element)
16
Switch, Limiter (Use W/4454440 Element)
16
Switch, Limiter (Use W/4454439 Element)
18
Plate, Backer
19
Seal, Silicone (Sides (2))
19
Seal, Silicone (Front & Back (2))
19
Seal, Silicone (Controls (2))
20
Shield, Heat
22
Lamp, Hot Surface Indicator
22
Vent, Lower Trim (Screw (2))
23
Bracket, Stiffening
25
Element, Surface (Includes No.16) (1200W Left Front)
25
Element, Surface (Includes No.16) (1400W Right Fro
25
WPL 4454440
25
WPL 4454441
29
WPL 3188844
30
WPL 3189174
31
WPL 3188102
32
WPL 3188158
33
WPL 3189159
34
Screw (6)
34
WPL 3189036
35
WPL 3189273
←
