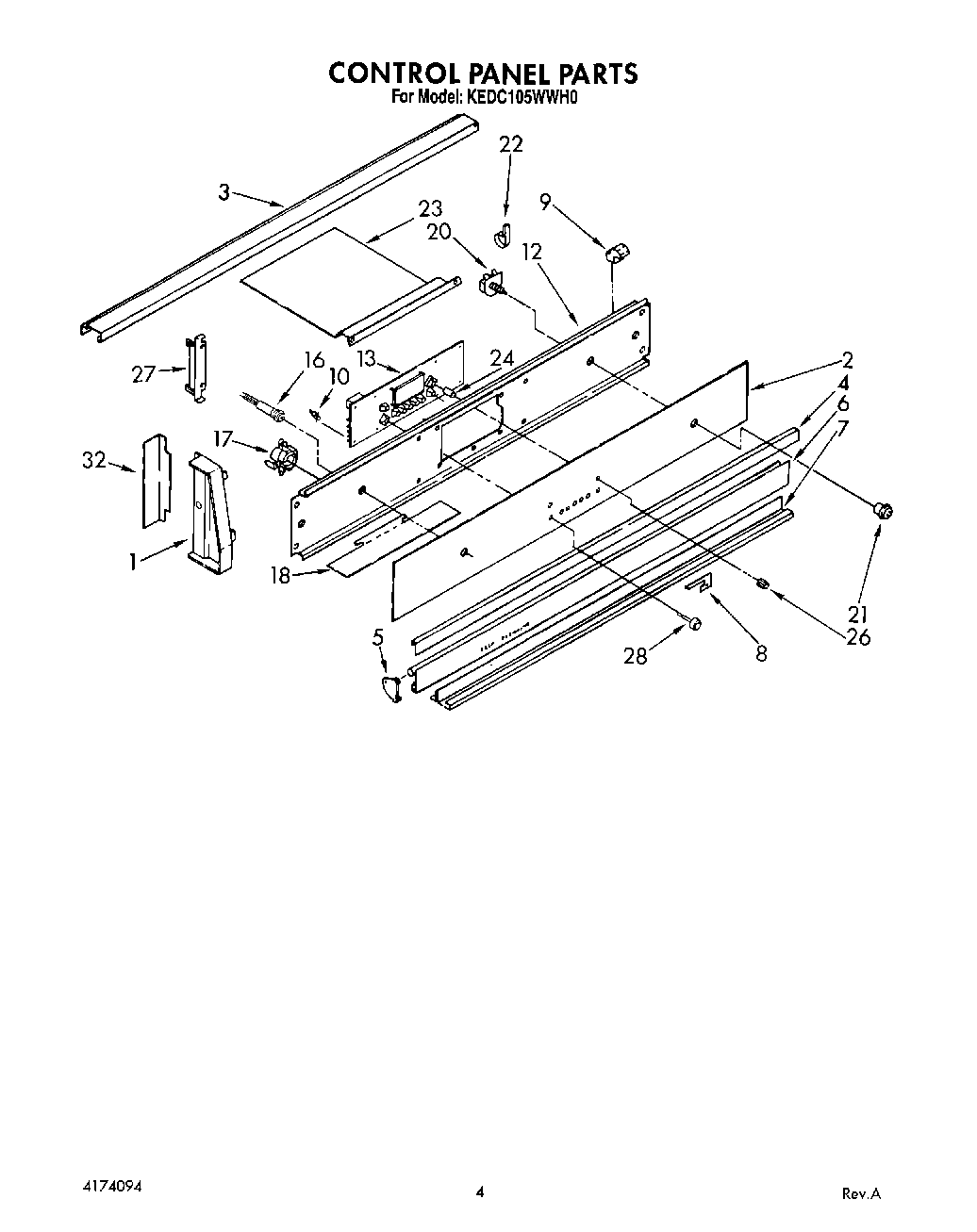

KEDC105WAL0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (White, RH)
1	End Cap (Black, RH)
1	End Cap (White, LH)
1	End Cap, L.H. (Almond)
1	End Cap (Washer)
1	End Cap (Almond, RH)
1	End Cap (Black, LH)
2	Glass, Control Panel (Almond)
2	Glass, Control Panel (White)
2	Glass, Control Panel (Black)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
6	Screw, 10-32 x 1/2
6	Door, Vent
6	Door, Vent (Semi-Bright Aluminum)
7	Trim, Bottom
8	Shield, Air
9	Retainer, Glass (4)
10	Support, Circuit Board
12	Bracket, Control
13	Electronic Range Control
16	Light, Indicator
17	WP965173 Whirlpool Dishwasher Screw
17	WP313808 Whirlpool Screw
17	Thermostat, Oven
18	Shield, Control
18	WP486579 Whirlpool Air Conditioner Screw
20	Lockwasher
20	White Model
21	Bezel, Switch (White)
21	Bezel Switch (1)
21	Bezel, Switch (Almond)
22	488946 Whirlpool Air Conditioner Clamp
23	Shield, Heat
24	Shaft, Bit Generator
26	Knob, Bit Generator (Black)
26	Knob, Bit Generat
26	WPL 3181653
27	Screw (2)
27	Bracket, Control Panel (2)
28	WPL 3182923
28	WPL 3149177
28	WPL 313958
32	Trim, End Cap (White)
32	Trim, End Cap (Almond)
32	Trim, End Cap (Black)
