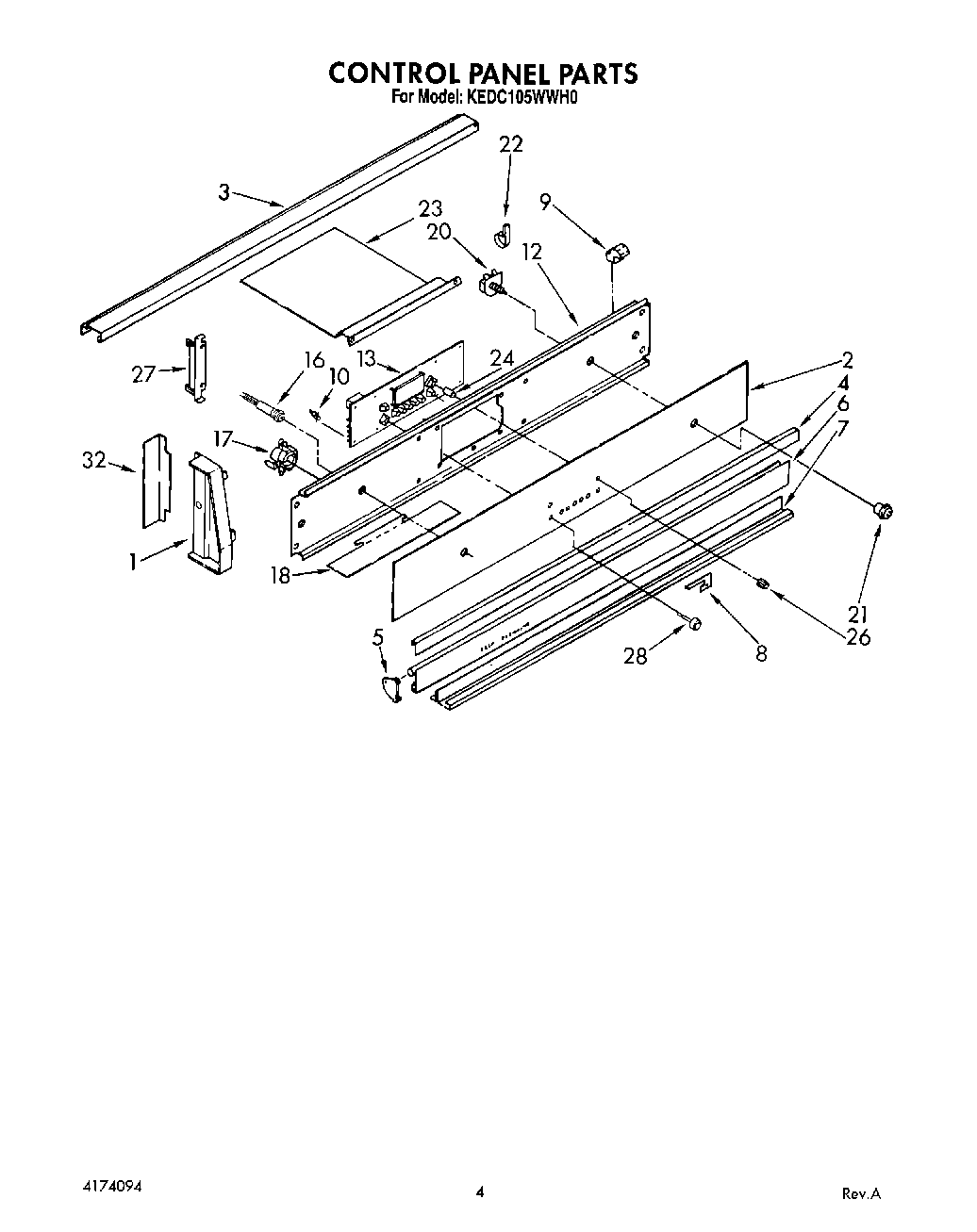

KEDC105WBL0 03 – CONTROL PANELadmin2025-04-26T09:35:12+00:00KEDC105WBL0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (White, RH) |
| 1 | End Cap (Black, RH) |
| 1 | End Cap (White, LH) |
| 1 | End Cap, L.H. (Almond) |
| 1 | End Cap (Washer) |
| 1 | End Cap (Almond, RH) |
| 1 | End Cap (Black, LH) |
| 2 | Glass, Control Panel (Almond) |
| 2 | Glass, Control Panel (White) |
| 2 | Glass, Control Panel (Black) |
| 3 | Rail, Top (Black) |
| 3 | Rail, Top (Bright Aluminum) |
| 4 | Trim, Center (Black) |
| 4 | Trim, Center (Bright Aluminum) |
| 5 | End Trim, Vent (Right Side) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Door, Vent |
| 6 | Door, Vent (Semi-Bright Aluminum) |
| 7 | Trim, Bottom |
| 8 | Shield, Air |
| 9 | Retainer, Glass (4) |
| 10 | Support, Circuit Board |
| 12 | Bracket, Control |
| 13 | Electronic Range Control |
| 16 | Light, Indicator |
| 17 | WP965173 Whirlpool Dishwasher Screw |
| 17 | WP313808 Whirlpool Screw |
| 17 | Thermostat, Oven |
| 18 | Shield, Control |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 20 | Lockwasher |
| 20 | White Model |
| 21 | Bezel, Switch (White) |
| 21 | Bezel Switch (1) |
| 21 | Bezel, Switch (Almond) |
| 22 | 488946 Whirlpool Air Conditioner Clamp |
| 23 | Shield, Heat |
| 24 | Shaft, Bit Generator |
| 26 | Knob, Bit Generator (Black) |
| 26 | Knob, Bit Generat |
| 26 | WPL 3181653 |
| 27 | Screw (2) |
| 27 | Bracket, Control Panel (2) |
| 28 | WPL 3182923 |
| 28 | WPL 3149177 |
| 28 | WPL 313958 |
| 32 | Trim, End Cap (White) |
| 32 | Trim, End Cap (Almond) |
| 32 | Trim, End Cap (Black) |
