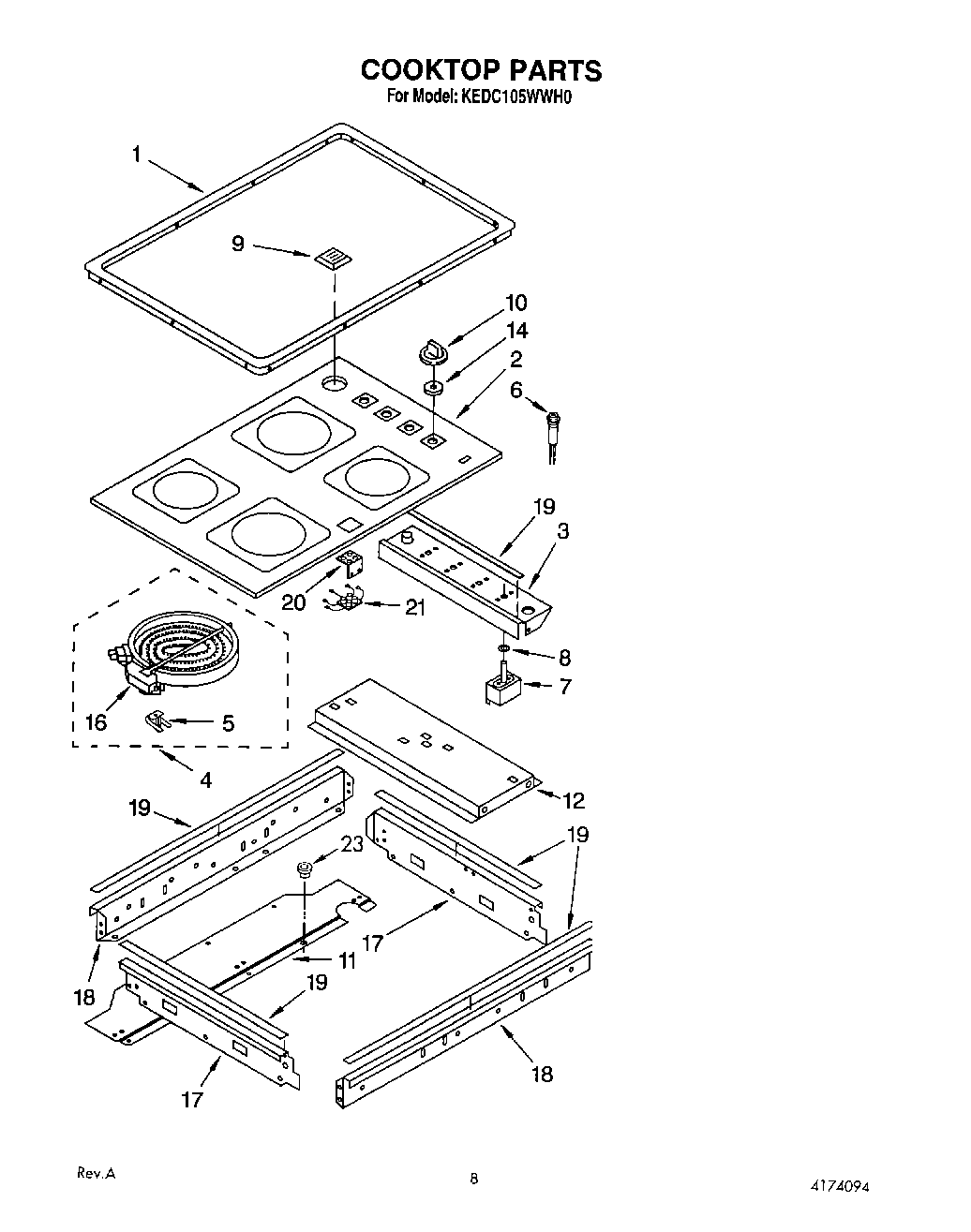

| 1 | Trim Ring, Cooktop (White) |
| 1 | Trim Ring, Cooktop (Almond) |
| 1 | Trim Ring, Cooktop (Black) |
| 1 | Vent, Lower Trim (Screw (2)) |
| 2 | Cooktop, Glass (White) |
| 2 | Cooktop, Glass (Black or Almond Model) |
| 3 | Bracket, Switch Mounting |
| 4 | WP8185663 Whirlpool Surface Element |
| 4 | Element, Surface (1400W Left Rear) |
| 4 | Element, Surface (1700W Right Front) |
| 4 | Element, Surface (2100W Right Rear) |
| 5 | Spring, Locator |
| 5 | WP486754 Whirlpool Compactor Screw |
| 6 | Light, Indicator |
| 7 | WP486579 Whirlpool Air Conditioner Screw |
| 7 | Switch, Inifinite (Rear Burner (Orange Shaft)) |
| 7 | W10900107 Whirlpool Oven Surface Element Switch |
| 7 | Switch, Infinite (Use W/1400W Left Rear Burner) |
| 8 | Seal, Switch Shaft (2) |
| 9 | Cover, Vent |
| 10 | Knob, Control (4) (Almond) |
| 10 | Knob, Control (4) (Black) |
| 10 | Knob, Control (4) (White) |
| 11 | Cover, Top Rear |
| 12 | Support, Element |
| 14 | Seal, Inifinite Switch |
| 16 | Switch, Limit (use W/3148831 Element) |
| 16 | Switch, Limit (Use W/3148830 Element) |
| 16 | Switch, Limit (Use W/3148829 Element) |
| 16 | Limiter, Temp. (9`` L.F.) |
| 17 | Rail, Side (Left H |
| 17 | Rail, Side (Right Hand) |
| 18 | WPL 3183380 |
| 18 | WPL 3181646 |
| 19 | Seal, Sili |
| 19 | WPL 3181645 |
| 20 | WP488729 Whirlpool Refrigerator Door Screw |
| 20 | WPL 3150321 |
| 21 | WPL 3150304 |
| 23 | WPL 258109 |
