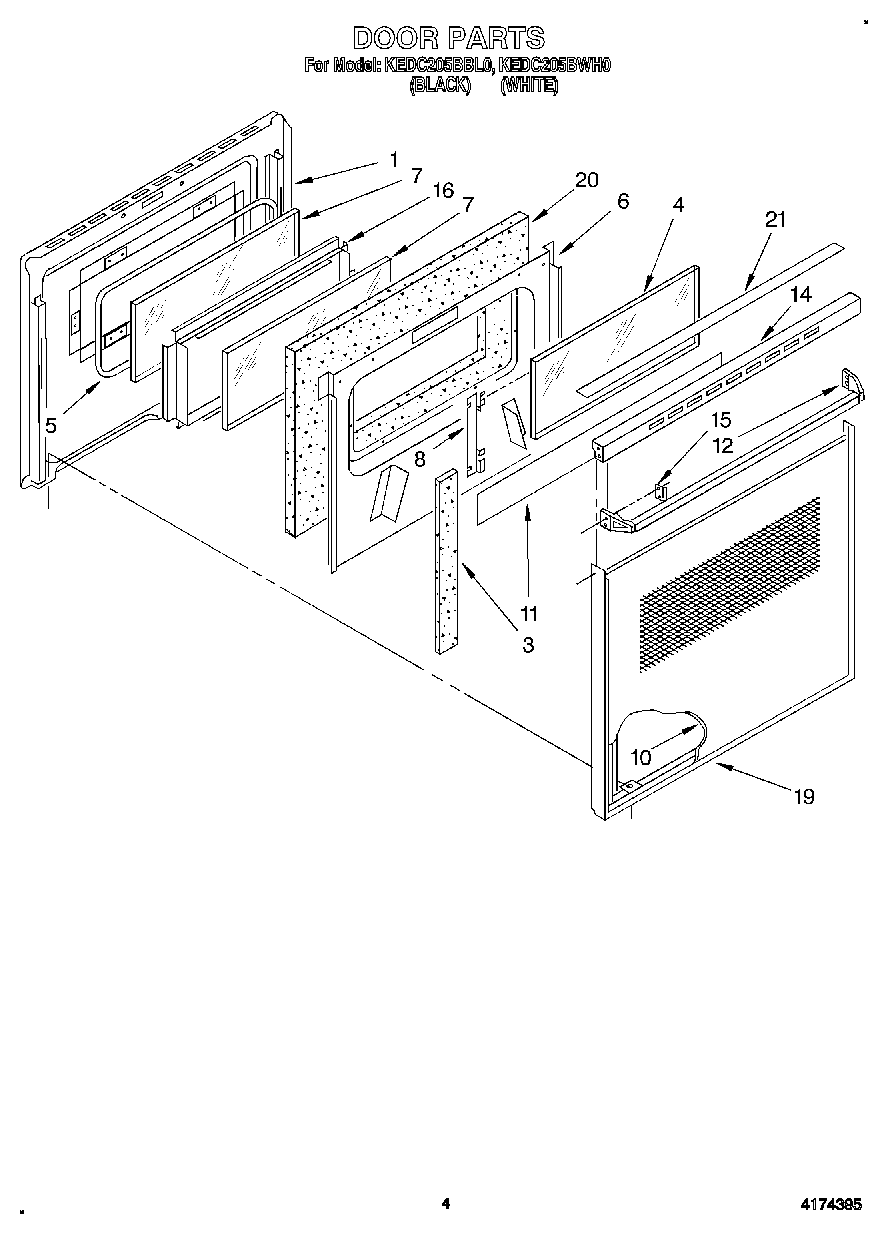

KEDC205BBL0 03 – DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (Black)
12	Handle, Door (White)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
