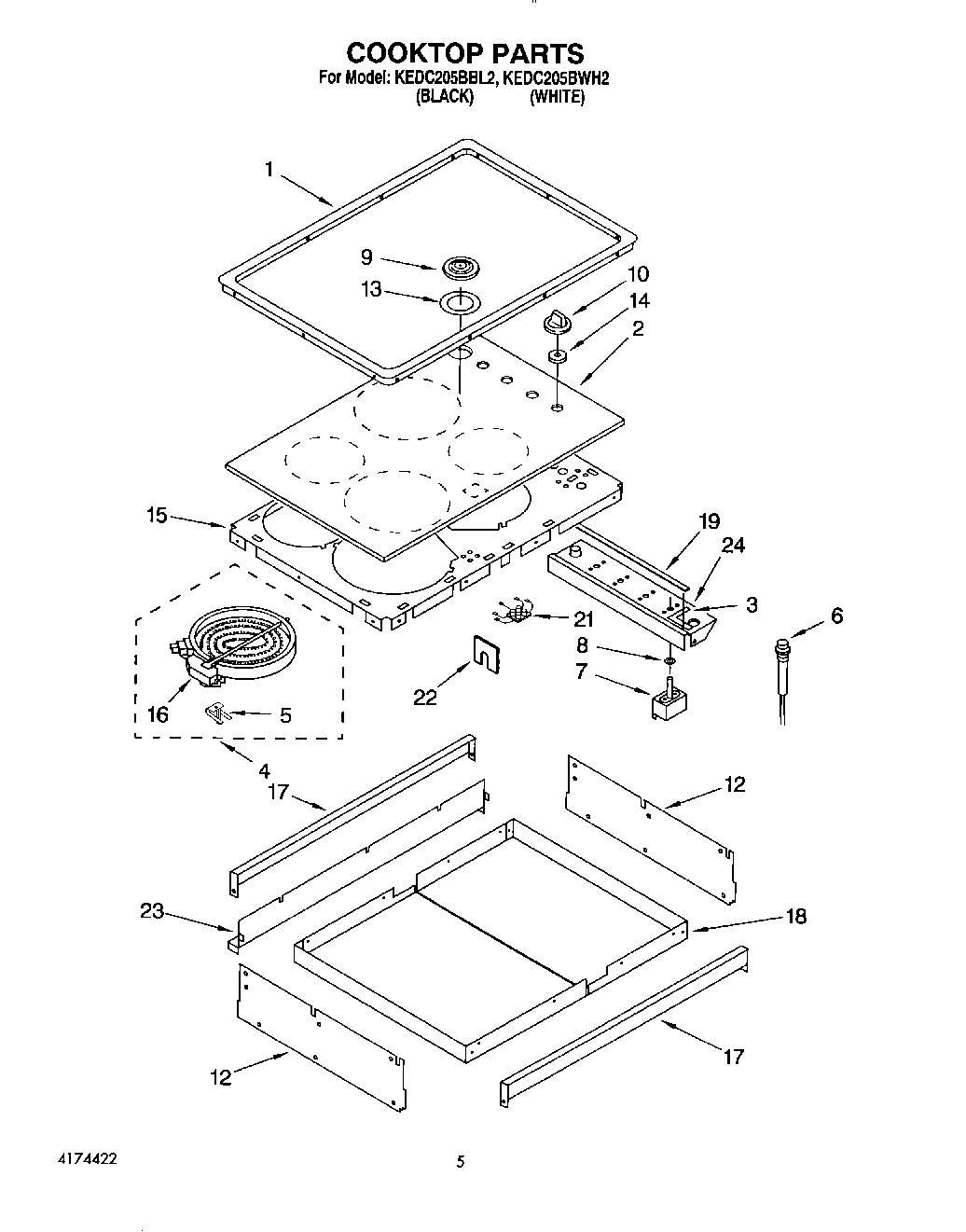

KEDC205BBL2 04 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	1
	8212471 Whirlpool Oven Paint
	Grease
	WPL 3179589
	WPL 3185260
	WPL LIT3183603
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Installation Instructions
	Wire, 25` Roll (Black 14 Ga.)
	WPL LIT3188263
	Wire, 25“ Roll (White 14 GA.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	242831 Whirlpool Oven Wire
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
3	Bracket, Switch Mounting
4	WP8185663 Whirlpool Surface Element
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1700W Right Front)
4	Element, Surface (2100W Right Rear)
5	WP486754 Whirlpool Compactor Screw
5	Spring Locator (8)
6	Light, Indicator
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	W10900107 Whirlpool Oven Surface Element Switch
8	Seal, Switch Shaft (2)
9	Cover, Vent (Black)
9	Cover, Vent (White)
10	Knob, Control (4) (White)
10	Knob, Control (4) (Black)
12	Plate, Mounting
12	WP488729 Whirlpool Refrigerator Door Screw
13	Seal, Vent Tube
14	Seal, Inifinite Switch
15	Backer, Plate
16	Switch, Limiter (Use W/4454439 Element)
16	Switch, Limiter (Use W/4454441 Element)
16	Switch, Limit (Use W/3184954 Element)
16	Switch, Limiter (Use W/4454440 Element)
17	Bracket, Support
18	Shield, Heat
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Sides (2))
21	WPL 3150304
21	Vent, Lower Trim (Screw (2))
22	Grommet, Wire Way
23	Cover, Rear
24	Seal, Cooktop
