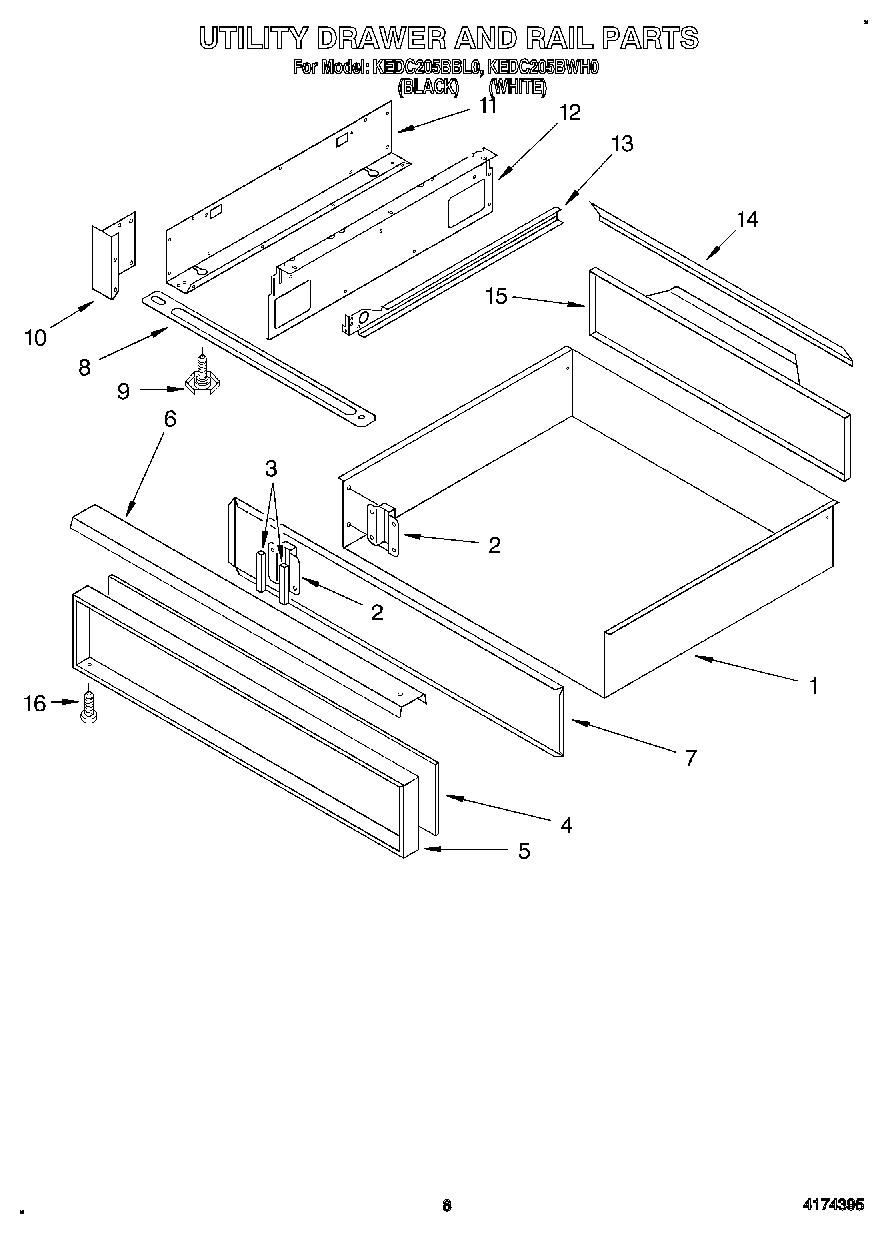

KEDC205BWH0 06 – UTILITY DRAWER AND RAIL

Products

Position	Product
1	Drawer, Utility
2	Bracket, Mounting
3	Seal, Foam (4)
4	Glass, Drawer Front (White)
4	Glass, Drawer Front (Black)
5	Frame, Outer
6	Handle, Drawer (Black)
6	Handle, Drawer (White)
6	WP355515 Whirlpool Screw
6	Screw
7	Panel, Back
8	Bracket
9	WPW10058460 Whirlpool Appliance Levelling Leg
10	Cap, Front (Right Hand)
10	Cap, Front (Left Hand)
11	Support, Outer Drawer
12	Support, Inner Drawer
13	Track, Drawer (Right Hand)
13	Track, Drawer (Left Hand)
14	Baffle, Drip
15	WP488729 Whirlpool Refrigerator Door Screw
15	Panel, Back
16	Fastener (2)
