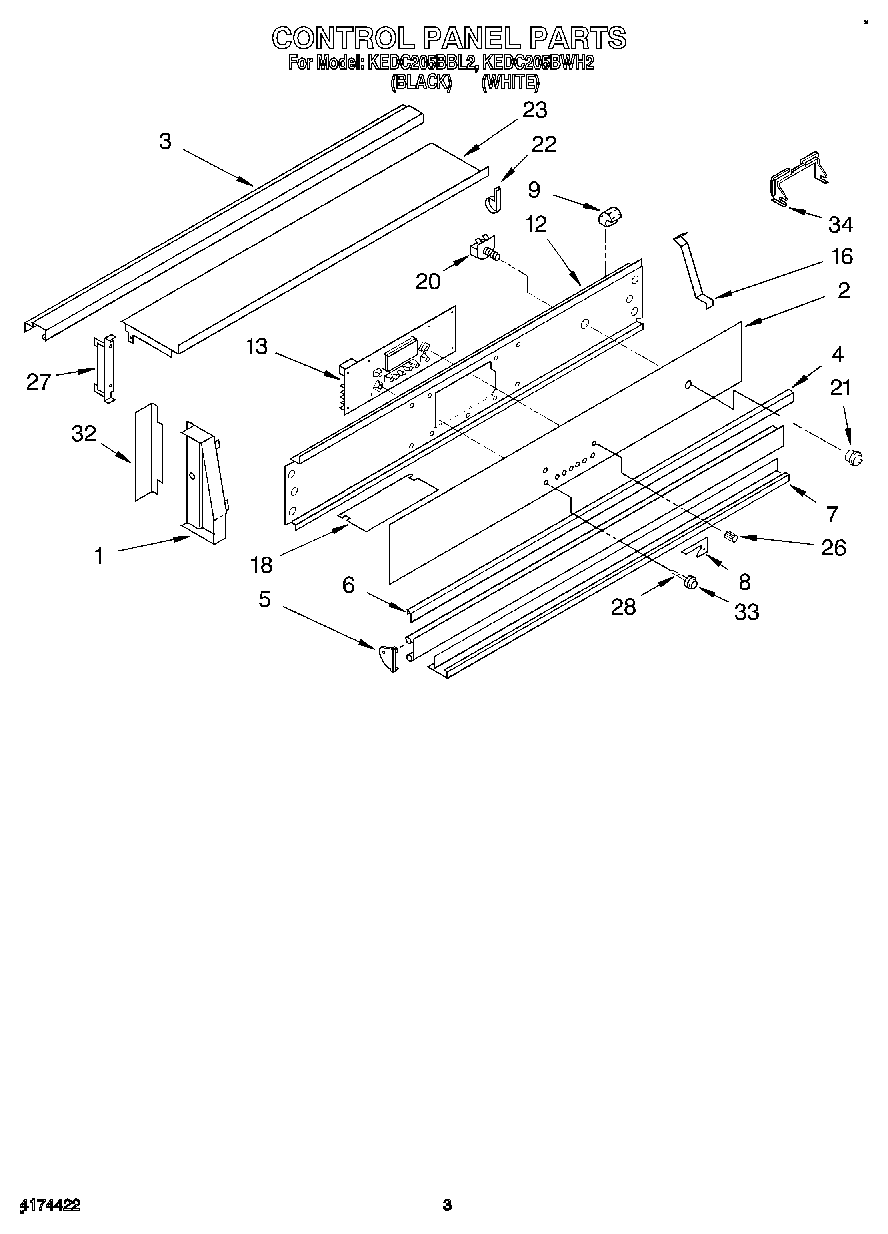

KEDC205BWH2 02 – CONTROL PANEL

Products

Position	Product
1	End Cap (Black, RH)
1	End Cap (White, LH)
1	End Cap (White, RH)
1	End Cap (Washer)
1	End Cap (Black, LH)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (White)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Bright Aluminum)
4	Trim, Center (Black)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
6	Door, Vent (Semi-Bright Aluminum)
6	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Shield, Air
9	Retainer, Glass (4)
12	Bracket, Control
13	Electronic Range Control
13	Screw
16	Bracket, Control
18	Shield, Control
20	White Model
20	WP965173 Whirlpool Dishwasher Screw
20	Switch, Oven Light
20	Lockwasher
21	Bezel, Switch (White)
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
23	Shield, Heat
26	Knob, Bit Generator (White)
26	Knob, Bit Generator (Black)
27	Screw (2)
27	Bracket, Control Panel (2)
28	Stem, Button (8)
32	Trim, End Cap (Black)
32	Trim, End Cap (White)
33	Button, Flush (8) (White)
33	Button, Flush (8) (Black)
34	Grommet
