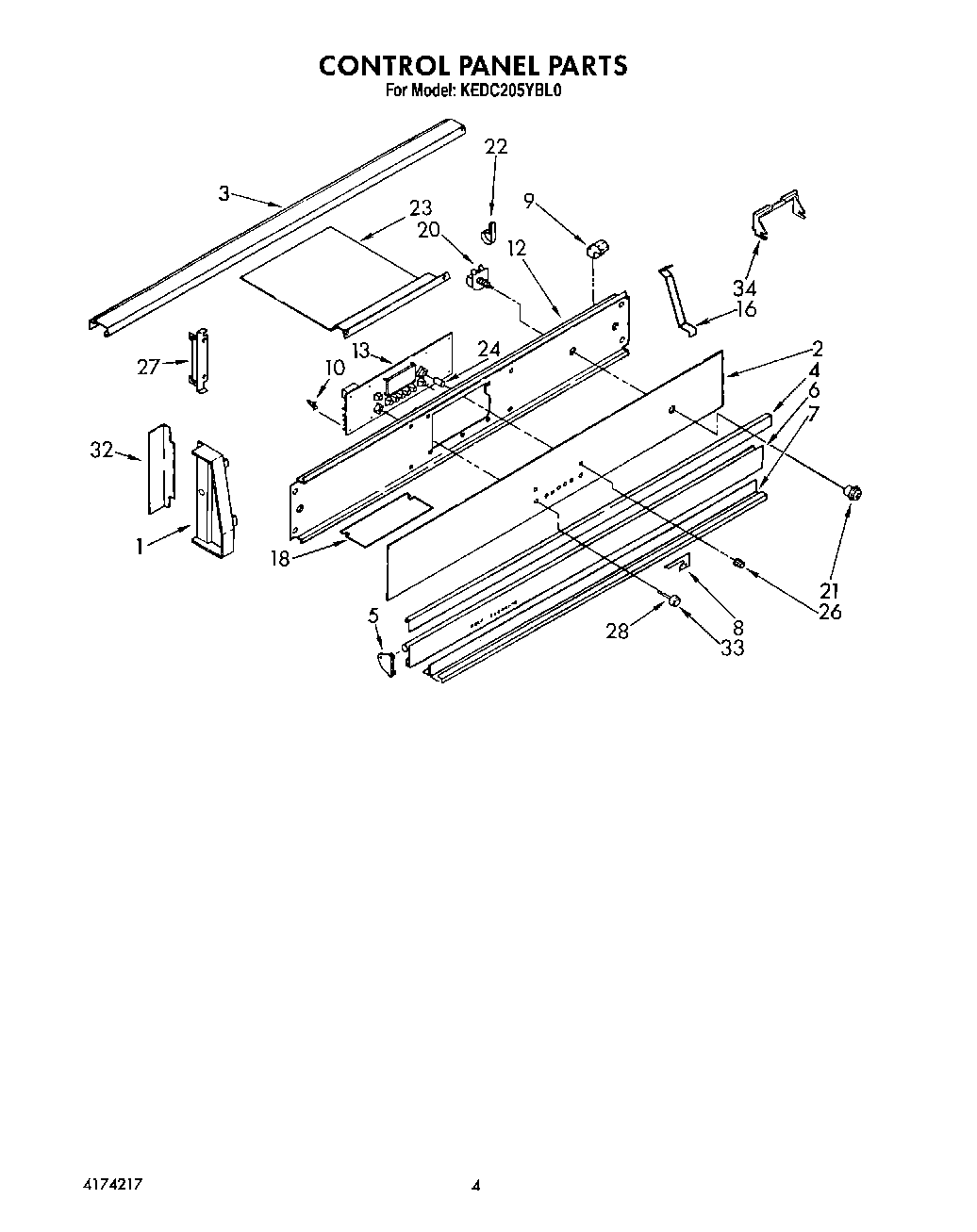

KEDC205YBL0 03 – CONTROL PANELadmin2025-04-26T09:36:46+00:00KEDC205YBL0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap (Black, RH) |
| 1 | End Cap (White, LH) |
| 1 | End Cap (Washer) |
| 1 | End Cap (Black, LH) |
| 1 | End Cap (White, RH) |
| 2 | Glass, Control Panel (Black) |
| 2 | Glass, Control Panel (White) |
| 3 | Rail, Top (Bright Aluminum) |
| 3 | Rail, Top (Seal, Backguard) |
| 3 | Rail, Top (Black) |
| 4 | Trim, Center (Bright Aluminum) |
| 4 | Trim, Center (Black) |
| 5 | End Trim, Vent (Right Side) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent (Semi-Bright Aluminum) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Door, Vent |
| 7 | Trim, Bottom |
| 8 | Shield, Air |
| 9 | Retainer, Glass (4) |
| 10 | Support, Circuit Board |
| 12 | Bracket, Control |
| 13 | Electronic Range Control |
| 16 | Bracket, Control |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | Screw (2) |
| 20 | Lockwasher |
| 20 | Switch, Oven Light |
| 21 | Bezel, Switch (White) |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 23 | Shield, Heat |
| 24 | Shaft, Bit Generator |
| 26 | Knob, Bit Generator (Black) |
| 26 | Knob, Bit Generator (White) |
| 27 | Screw (2) |
| 27 | Bracket, Control Panel (2) |
| 28 | Stem, Button (8) |
| 32 | Trim, End Cap (White) |
| 32 | Trim, End Cap (Black) |
| 33 | Button, Flush (8) (White) |
| 33 | Button, Flush (8) (Black) |
| 34 | Grommet |
