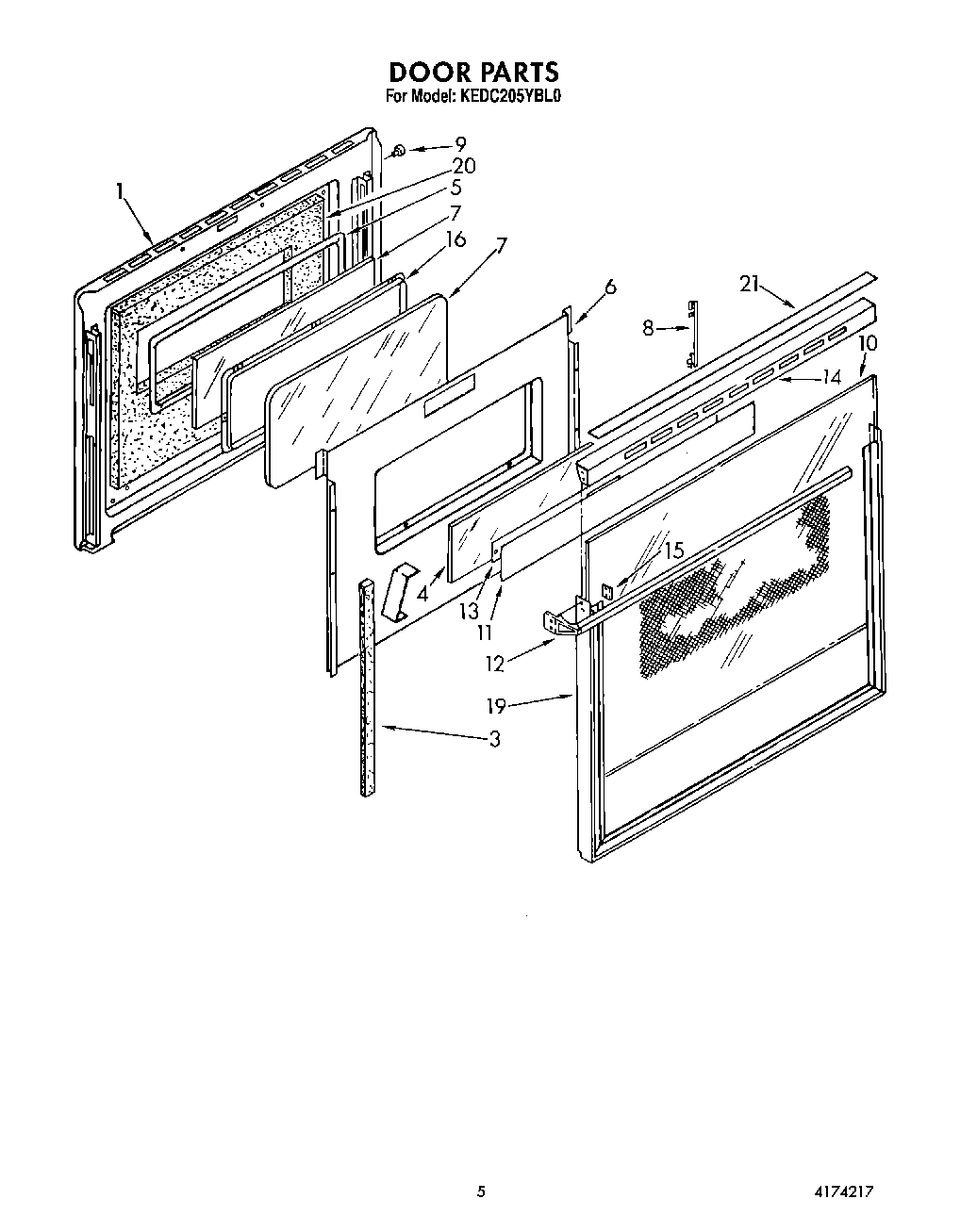

KEDC205YBL0 04 – DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	WP355515 Whirlpool Screw
13	Sheild, Door
13	Screw,
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
