KEDC205YBL0 05 – COOKTOP, LIT/OPTIONAL

KEDC205YBL0 05 – COOKTOP, LIT/OPTIONAL

Written by

in

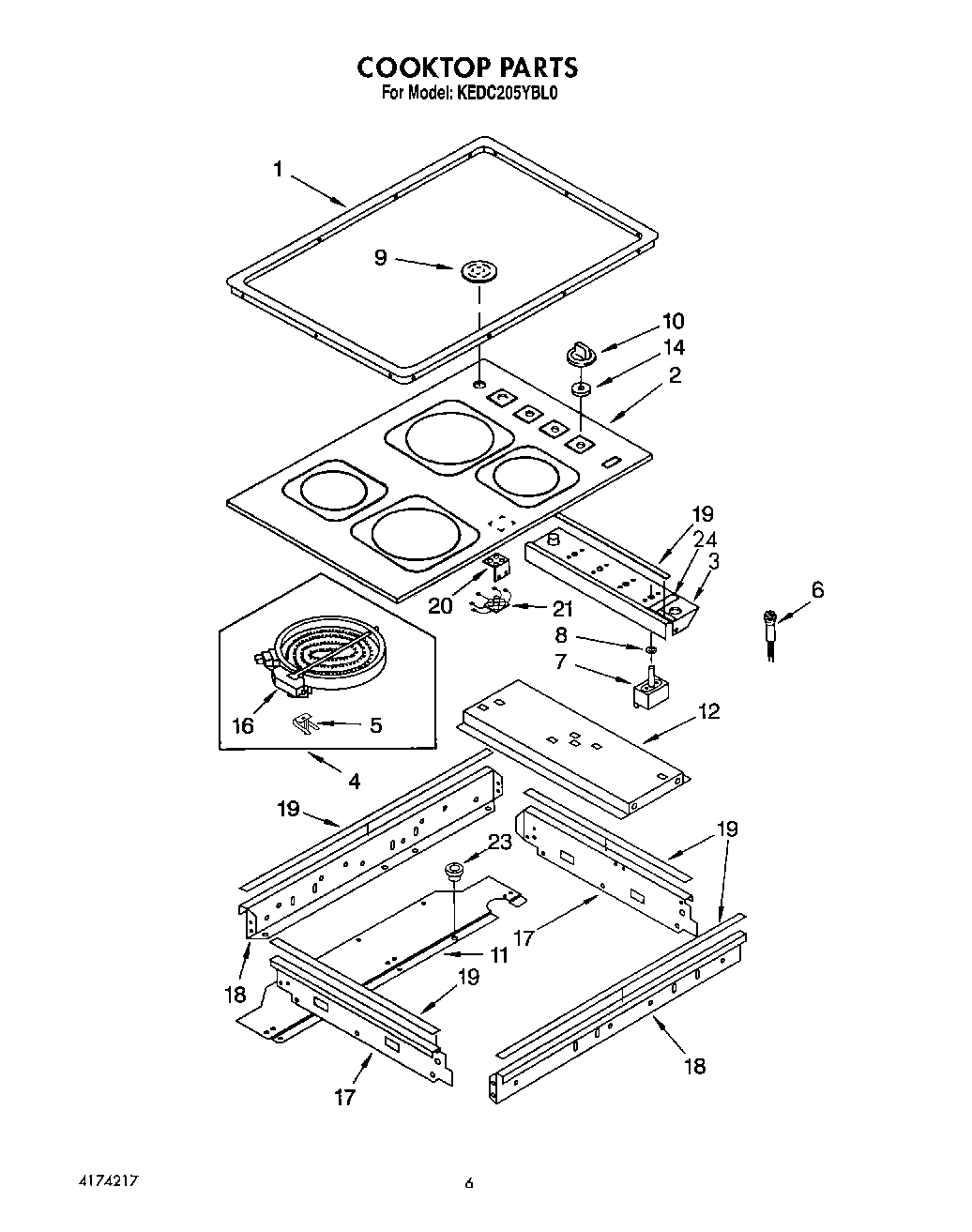

KEDC205YBL0 05 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	WPL 3183638
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8212471 Whirlpool Oven Paint
	Grease
	WPL LIT3183603
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL LIT4174217
	WPL LIT3185219
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPL 814128
	WPL 3185260
	WPL 3183639
	WPL LIT3185221
1	Trim Ring, Cooktop (White)
1	WP308685 Whirlpool Microwave Screw
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black or Almond Model)
3	Bracket, Switch Mounting
4	WP8185663 Whirlpool Surface Element
4	Element, Surface (1400W Left Rear)
4	Element, Surface (2100W Right Rear)
4	Element, Surface (1700W Right Front)
5	Spring, Locator
5	WP486754 Whirlpool Compactor Screw
6	Light, Indicator
7	WP486579 Whirlpool Air Conditioner Screw
7	W10900107 Whirlpool Oven Surface Element Switch
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Inifinite (Rear Burner (Orange Shaft))
8	Seal, Switch Shaft (2)
9	Cover, Vent (White)
9	Cover, Vent (Black)
10	Knob, Control (4) (Black)
10	Knob, Control (4) (White)
11	Cover, Top Rear
12	Support, Element
14	Seal, Inifinite Switch
16	Limiter Temp. (7“ – RF)
16	Limiter, Temp. (6“ L.R.)
16	Limiter Temp. (8“ – RR)
16	Limiter, Temp. (9“ L.F.)
17	Rail, Side (Right Hand)
17	Rail, Side (Left H
18	WPL 3183380
18	WPL 3181646
19	Seal, Sili
19	WPL 3181645
20	WP488729 Whirlpool Refrigerator Door Screw
20	WPL 3150321
21	WPL 3150304
23	WPL 258109
24	Seal, Cooktop
