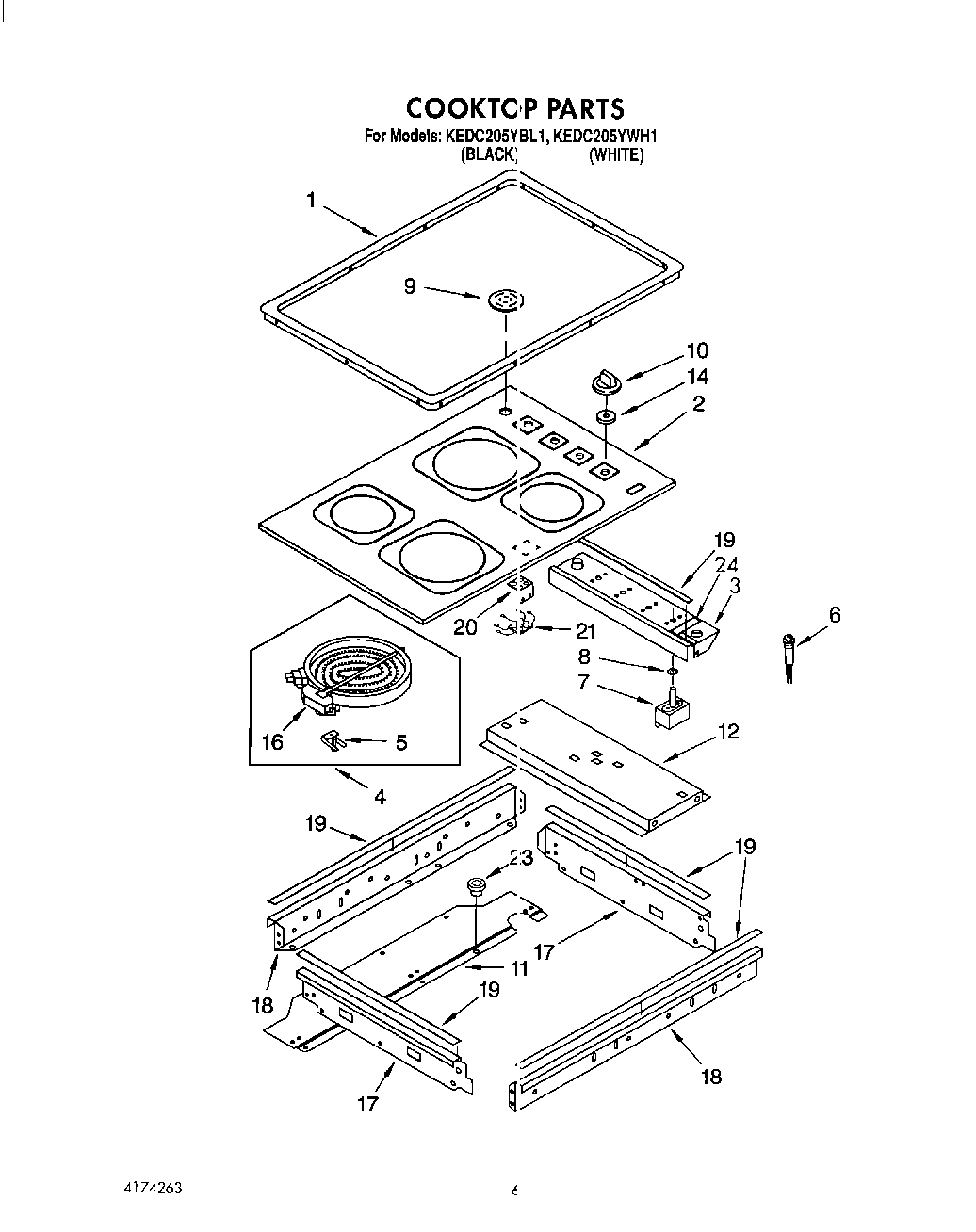

KEDC205YBL1 04 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4174263
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	8212471 Whirlpool Oven Paint
	Grease
	WPL 3183638
	WPL LIT3183603
	Installation Instructions
	WPL 3183639
	WPL 3185260
	WPL 814128
	WPL LIT3185729
	Wire (14 Ga. 150 c Orange)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Green)
	WA906B Whirlpool Cooktop Glass Scraper
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Black 14 Ga.)
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
1	WP308685 Whirlpool Microwave Screw
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	Bracket, Switch Mounting
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1700W Right Front)
4	Element, Surface (2100W Right Rear)
4	WP8185663 Whirlpool Surface Element
5	WP486754 Whirlpool Compactor Screw
5	Spring, Locator
6	Light, Indicator
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	W10900107 Whirlpool Oven Surface Element Switch
8	Seal, Switch Shaft (2)
9	Cover, Vent (Black)
9	Cover, Vent (White)
10	Knob, Control (4) (White)
10	Knob, Control (4) (Black)
11	Cover, Top Rear
12	Support, Element
14	Seal, Inifinite Switch
16	Limiter, Temp. (6“ L.R.)
16	Limiter Temp. (7“ – RF)
16	Limiter Temp. (8“ – RR)
16	Limiter, Temp. (9“ L.F.)
17	Rail, Side (Right Hand)
17	Rail, Side (Left H
18	WPL 3183380
18	WPL 3181646
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
20	WPL 3150321
20	WP488729 Whirlpool Refrigerator Door Screw
21	WPL 3150304
23	WPL 258109
24	Seal, Cooktop
