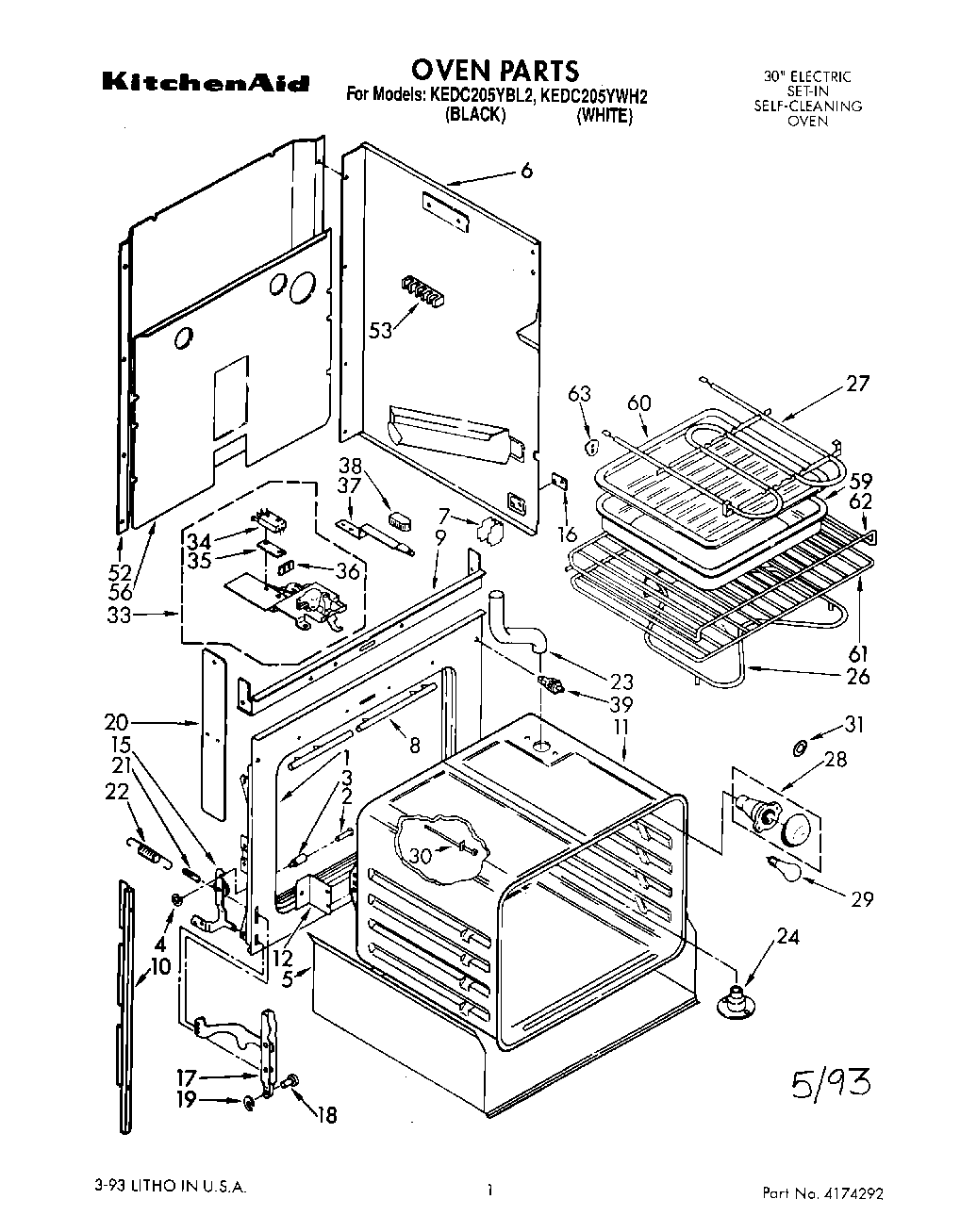

KEDC205YBL2 01 – OVEN PARTS

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Baffle, Insulation
20	Screw (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Eliminator, Smoke
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Sensor, Heat
31	Screw (3)
31	WP3184533 Whirlpool Range Light Lens Gasket
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
52	Cover, Rear
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Oven Offset
63	WPL 3183005
63	Screw (2)
63	WPL 310433
63	WPL 310435
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 3149328
63	Insulation
