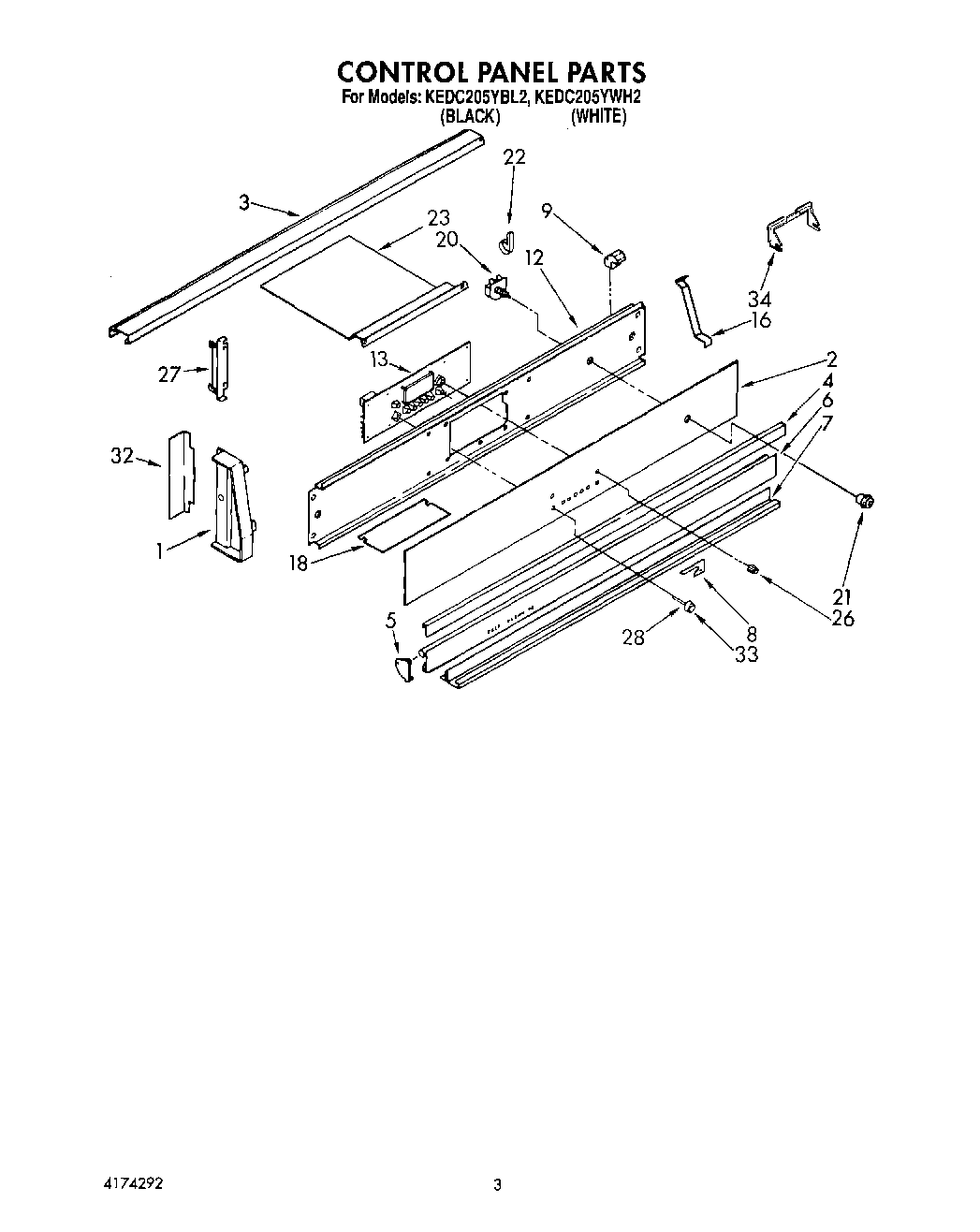

KEDC205YBL2 02 – CONTROL PANEL

Products

Position	Product
1	End Cap (White, LH)
1	End Cap (Black, LH)
1	End Cap (Black, RH)
1	End Cap (Washer)
1	End Cap (White, RH)
2	Glass, Control Panel (Black)
2	Glass, Control Panel (White)
3	Rail, Top (Seal, Backguard)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Bright Aluminum)
4	Trim, Center (Black)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
6	Screw, 10-32 x 1/2
6	Door, Vent (Semi-Bright Aluminum)
7	Trim, Bottom
8	Shield, Air
9	Retainer, Glass (4)
12	Bracket, Control
13	Electronic Range Control
16	Bracket, Control
18	Shield, Control
20	Lockwasher
20	Switch, Oven Light
21	Bezel, Switch (White)
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
23	Shield, Heat
26	Knob, Bit Generator (White)
26	Knob, Bit Generator (Black)
27	Screw (2)
27	Bracket, Control Panel (2)
28	Stem, Button (8)
32	Trim, End Cap (White)
32	Trim, End Cap (Black)
33	Button, Flush (8) (Black)
33	Button, Flush (8) (White)
34	Grommet
