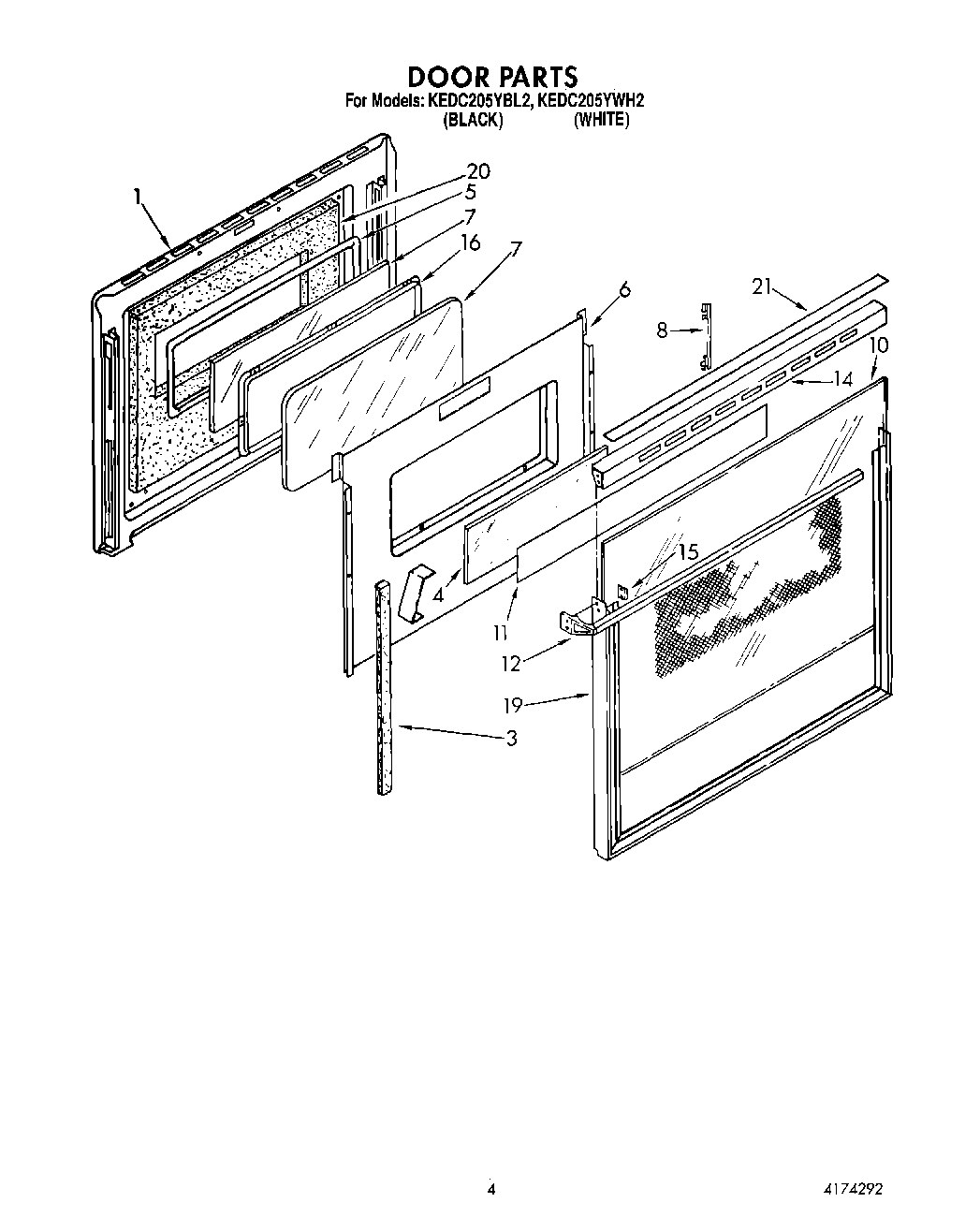

KEDC205YBL2 03 – DOOR PARTS

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	WP355515 Whirlpool Screw
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
