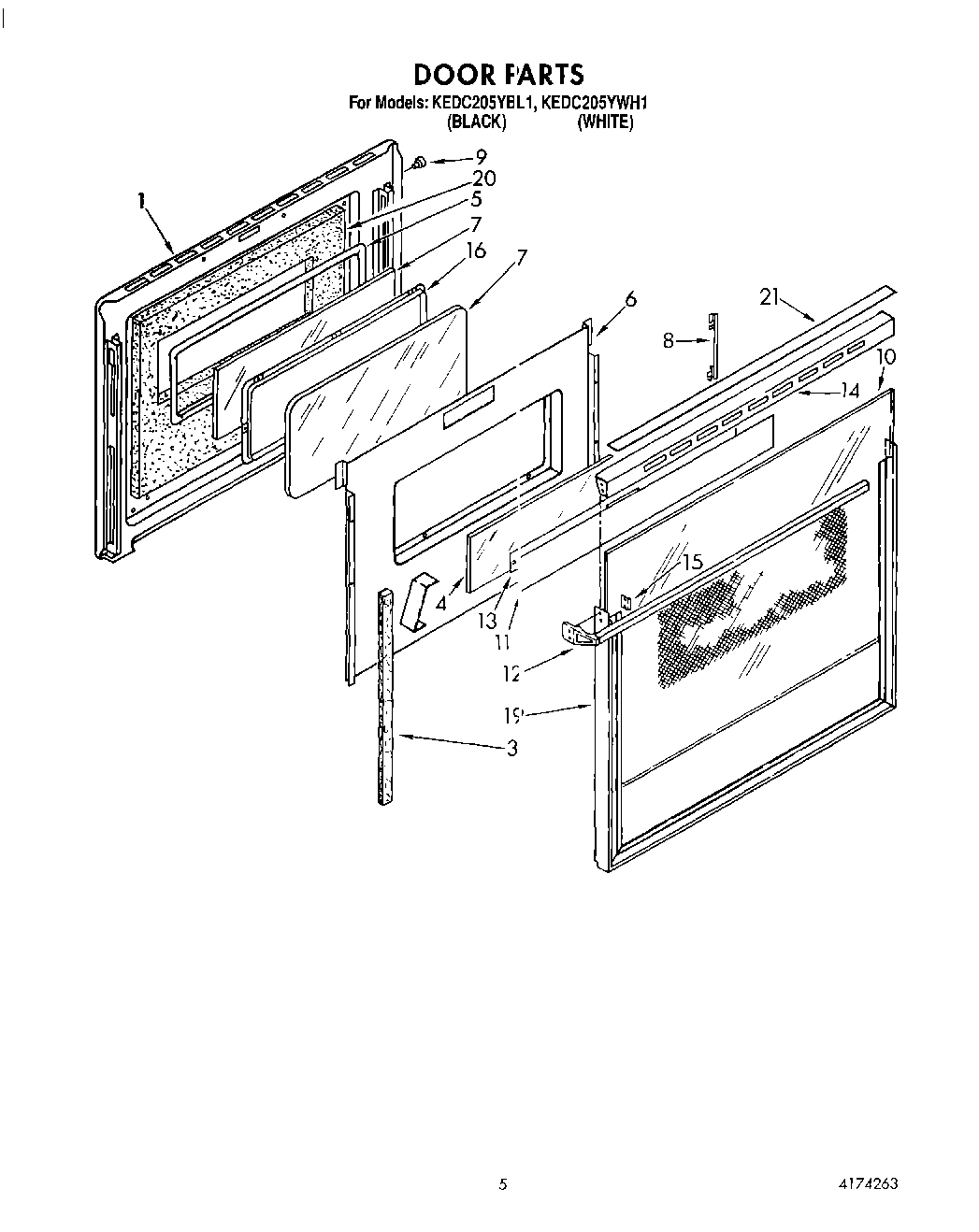

KEDC205YWH1 03 – DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	WP355515 Whirlpool Screw
13	Screw,
13	Sheild, Door
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
