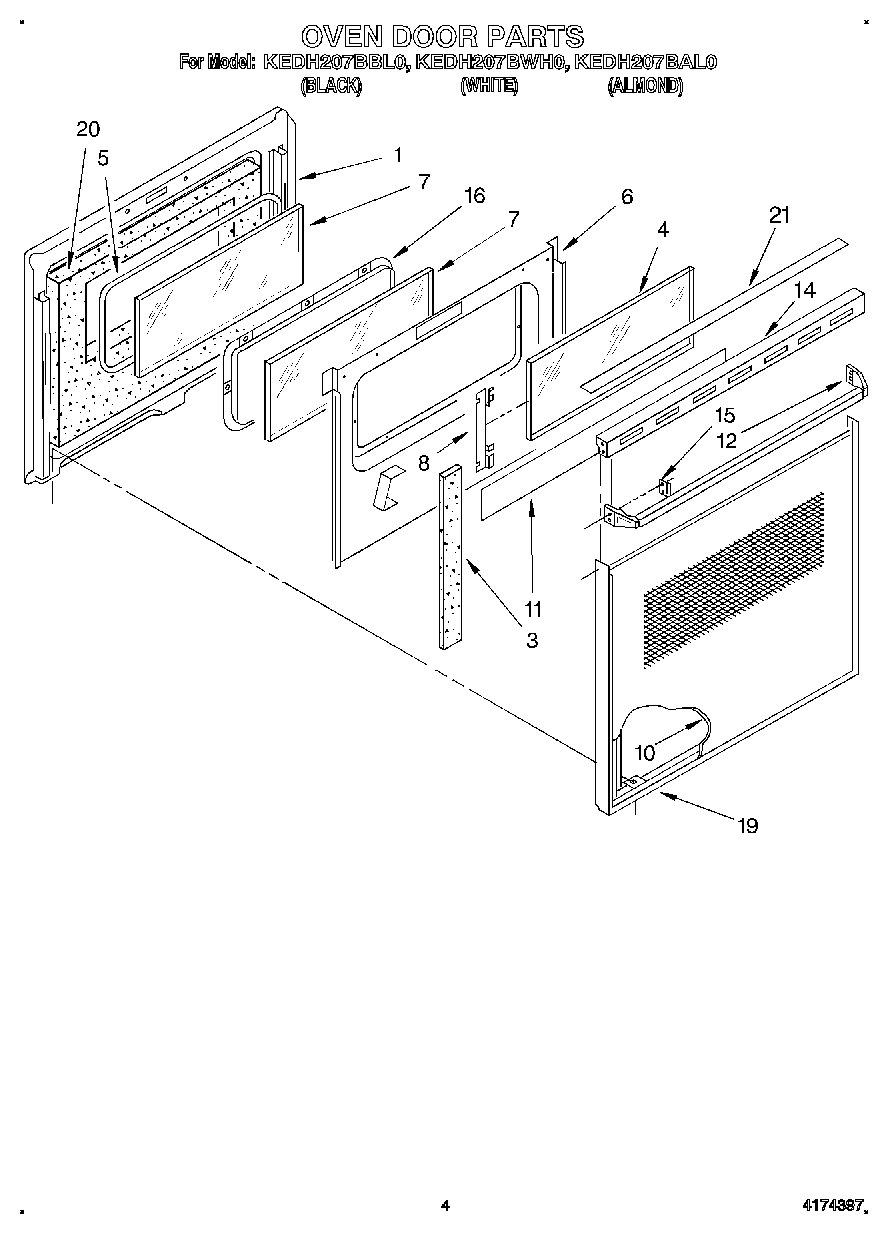

KEDH207BBL0 03 – OVEN DOOR, LITERATURE

KEDH207BBL0 03 – OVEN DOOR, LITERATURE

Written by

in

KEDH207BBL0 03 – OVEN DOOR, LITERATURE

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Tech Sheet
	Cookbook T/C Oven
	Guide, Auto Set
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Almond Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (Almond)
12	Handle, Door (White)
12	Handle, Door (Black)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
21	Cap, Top Door (Almond Model)
