KEDH207BBL2 04 – COOKTOP, OPTIONAL

KEDH207BBL2 04 – COOKTOP, OPTIONAL

Written by

in

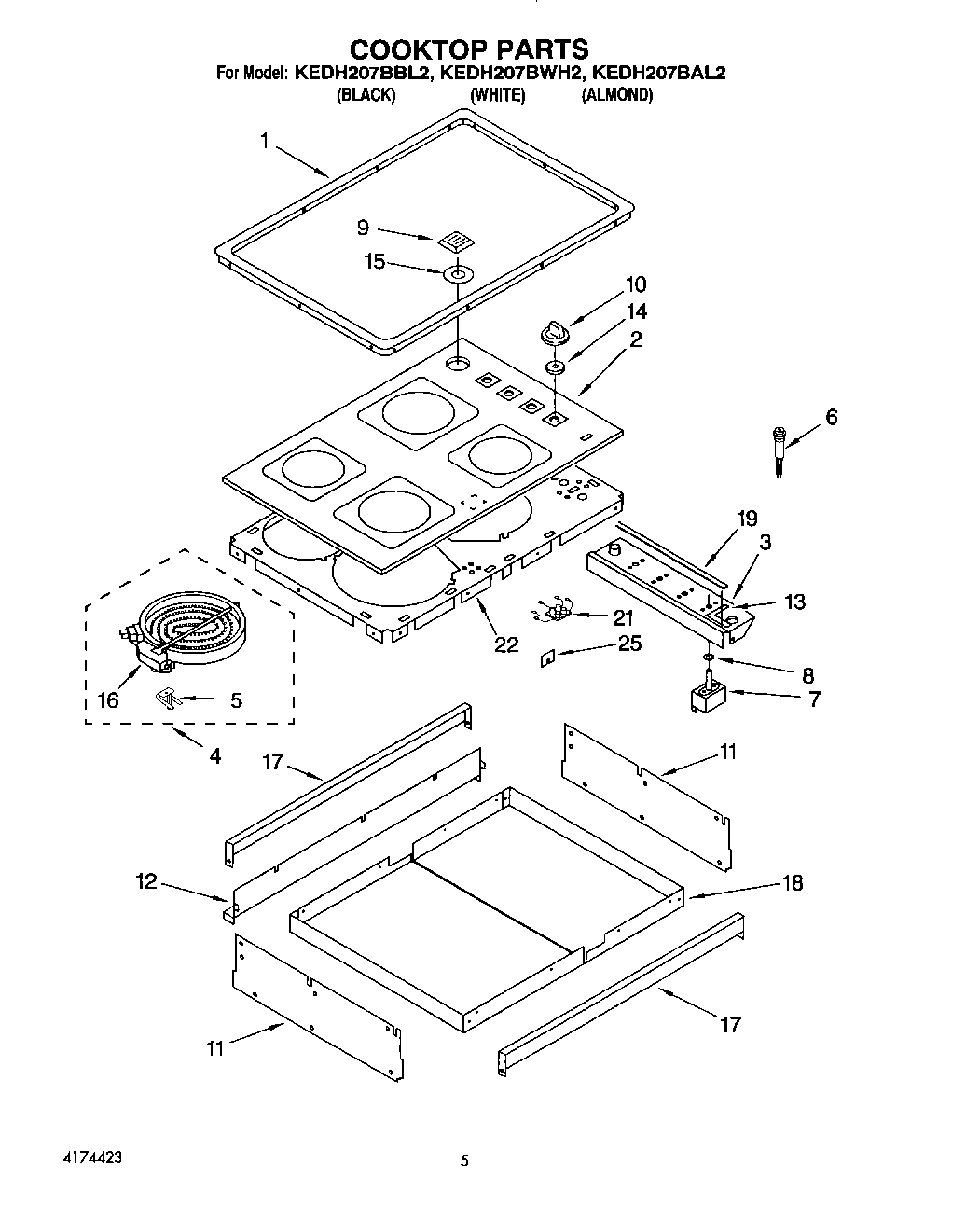

KEDH207BBL2 04 – COOKTOP, OPTIONAL

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Trim Ring, Cooktop (Almond)
1Trim Ring, Cooktop (White)
1Trim Ring, Cooktop (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (Black or Almond Model)
3Bracket, Switch Mounting
4Element, Surface (1400W Left Rear)
4WP8185663 Whirlpool Surface Element
4Element, Surface (2200W Right Rear)
4Element, Surface (1800W Right Front)
5Spring Locator (8)
5WP486754 Whirlpool Compactor Screw
6Light, Indicator
7Switch, Inifinite (Front Burner (Green Shaft))
7Switch, Inifinite (Rear Burner (Orange Shaft))
7Switch, Infinite (Use W/1400W Left Rear Burner)
7Switch, Infinite (Use W/2200W Right Rear Burner)
8WP486579 Whirlpool Air Conditioner Screw
8Seal, Switch Shaft (2)
9Cover, Vent (Black)
9Cover, Vent (White)
9Cover, Vent (Almond)
10Knob, Control (4) (White)
10Knob, Control (4) (Almond)
10Knob, Control (4) (Black)
11Plate, Mounting
12Cover, Rear
13Seal, Cooktop
14Seal, Inifinite Switch
15Seal, Vent Tube
16Switch, Limit (Use W/3184955 Element)
16Switch, Limiter (Use W/4454441 Element)
16Switch, Limit (Use W/3184958 Element)
16Switch, Limiter (Use W/4454439 Element)
17Bracket, Support
18Shield, Heat
18WP488729 Whirlpool Refrigerator Door Screw
18Screw
19Seal, Silicone (Sides (2))
19Seal, Silicone (Front & Back (2))
21WPL 3150304
22Backer, Plate
25242831 Whirlpool Oven Wire
25WPL 3185260
25W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
25Wire, 25“ Roll (White 14 GA.)
25Wire, 25` Roll (Black 14 Ga.)
25Wire (14 Ga. 150 c Blue)
25Wire (14 Ga. 150 c Brown)
25WPL 3179589
25Grease
258212471 Whirlpool Oven Paint
251
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Grommet, Wire Way
