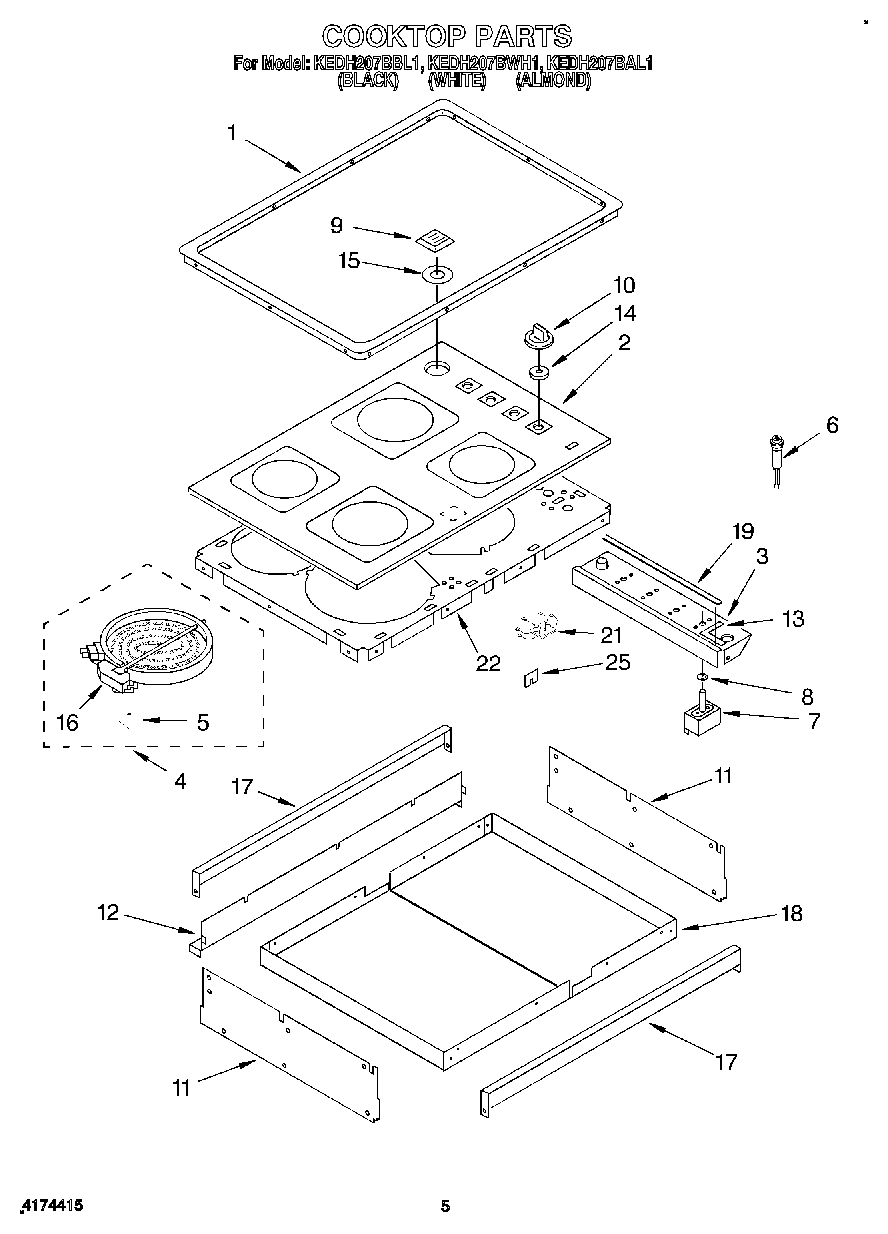

KEDH207BWH1 04 – COOKTOP, OPTIONAL

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Trim Ring, Cooktop (Almond)
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black or Almond Model)
3	Bracket, Switch Mounting
4	Element, Surface (1400W Left Rear)
4	Element, Surface (1800W Right Front)
4	Element, Surface (2200W Right Rear)
4	WP8185663 Whirlpool Surface Element
5	Spring Locator (8)
5	WP486754 Whirlpool Compactor Screw
6	Light, Indicator
7	Switch, Infinite (Use W/1400W Left Rear Burner)
7	Switch, Inifinite (Rear Burner (Orange Shaft))
7	Switch, Infinite (Use W/2200W Right Rear Burner)
7	Switch, Inifinite (Front Burner (Green Shaft))
8	WP486579 Whirlpool Air Conditioner Screw
8	Seal, Switch Shaft (2)
9	Cover, Vent (Black)
9	Cover, Vent (White)
9	Cover, Vent (Almond)
10	Knob, Control (4) (White)
10	Knob, Control (4) (Almond)
10	Knob, Control (4) (Black)
11	Plate, Mounting
12	Cover, Rear
13	Seal, Cooktop
14	Seal, Inifinite Switch
15	Seal, Vent Tube
16	Switch, Limit (Use W/3184955 Element)
16	Switch, Limit (Use W/3184958 Element)
16	Switch, Limiter (Use W/4454441 Element)
16	Switch, Limiter (Use W/4454439 Element)
17	Bracket, Support
18	Shield, Heat
18	Screw
18	WP488729 Whirlpool Refrigerator Door Screw
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
21	WPL 3150304
22	Backer, Plate
25	WPL 3185260
25	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
25	Wire, 25“ Roll (White 14 GA.)
25	Wire, 25` Roll (Black 14 Ga.)
25	242831 Whirlpool Oven Wire
25	Wire (14 Ga. 150 c Blue)
25	Wire (14 Ga. 150 c Brown)
25	Grease
25	8212471 Whirlpool Oven Paint
25	1
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	Grommet, Wire Way
