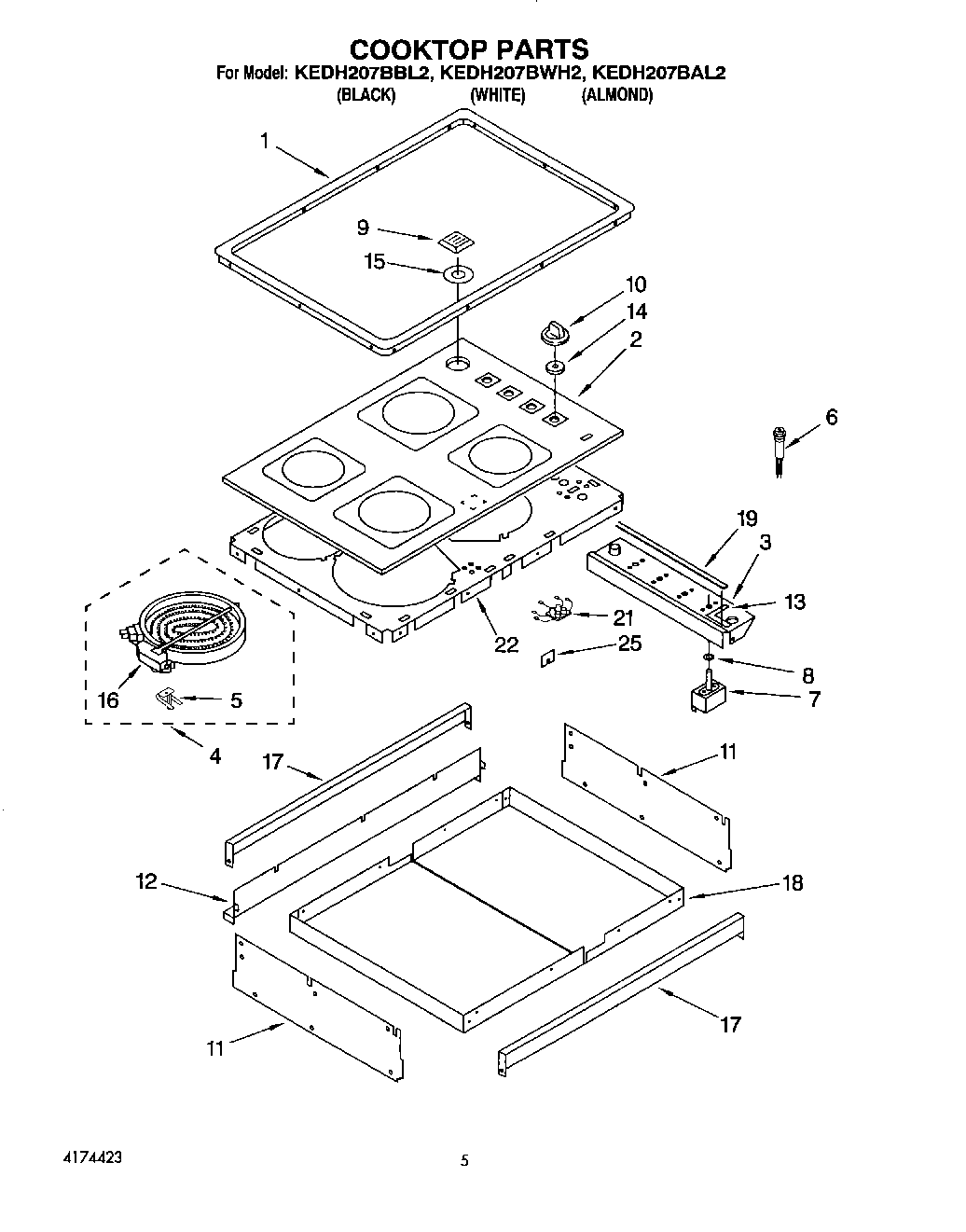

KEDH207BWH2 04 – COOKTOP, OPTIONALadmin2025-04-26T09:34:51+00:00KEDH207BWH2 04 – COOKTOP, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Vent, Lower Trim (Screw (2)) |
| 1 | Trim Ring, Cooktop (Almond) |
| 1 | Trim Ring, Cooktop (White) |
| 1 | Trim Ring, Cooktop (Black) |
| 2 | Cooktop, Glass (White) |
| 2 | Cooktop, Glass (Black or Almond Model) |
| 3 | Bracket, Switch Mounting |
| 4 | Element, Surface (1400W Left Rear) |
| 4 | WP8185663 Whirlpool Surface Element |
| 4 | Element, Surface (2200W Right Rear) |
| 4 | Element, Surface (1800W Right Front) |
| 5 | Spring Locator (8) |
| 5 | WP486754 Whirlpool Compactor Screw |
| 6 | Light, Indicator |
| 7 | Switch, Inifinite (Front Burner (Green Shaft)) |
| 7 | Switch, Inifinite (Rear Burner (Orange Shaft)) |
| 7 | Switch, Infinite (Use W/1400W Left Rear Burner) |
| 7 | Switch, Infinite (Use W/2200W Right Rear Burner) |
| 8 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Seal, Switch Shaft (2) |
| 9 | Cover, Vent (Black) |
| 9 | Cover, Vent (White) |
| 9 | Cover, Vent (Almond) |
| 10 | Knob, Control (4) (White) |
| 10 | Knob, Control (4) (Almond) |
| 10 | Knob, Control (4) (Black) |
| 11 | Plate, Mounting |
| 12 | Cover, Rear |
| 13 | Seal, Cooktop |
| 14 | Seal, Inifinite Switch |
| 15 | Seal, Vent Tube |
| 16 | Switch, Limit (Use W/3184955 Element) |
| 16 | Switch, Limiter (Use W/4454441 Element) |
| 16 | Switch, Limit (Use W/3184958 Element) |
| 16 | Switch, Limiter (Use W/4454439 Element) |
| 17 | Bracket, Support |
| 18 | Shield, Heat |
| 18 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Screw |
| 19 | Seal, Silicone (Sides (2)) |
| 19 | Seal, Silicone (Front & Back (2)) |
| 21 | WPL 3150304 |
| 22 | Backer, Plate |
| 25 | 242831 Whirlpool Oven Wire |
| 25 | WPL 3185260 |
| 25 | W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz) |
| 25 | Wire, 25`` Roll (White 14 GA.) |
| 25 | Wire, 25` Roll (Black 14 Ga.) |
| 25 | Wire (14 Ga. 150 c Blue) |
| 25 | Wire (14 Ga. 150 c Brown) |
| 25 | WPL 3179589 |
| 25 | Grease |
| 25 | 8212471 Whirlpool Oven Paint |
| 25 | 1 |
| 25 | Wire (14 Ga. 200 c Brown) |
| 25 | 18 Ga. 80~c Rating (Red) |
| 25 | Wire (12 Ga. 150 c Black) |
| 25 | Wire (14 Ga. 150 c Yellow) |
| 25 | Wire (14 Ga. 150 c Orange) |
| 25 | Wire (14 Ga. 150 c Green) |
| 25 | Grommet, Wire Way |
