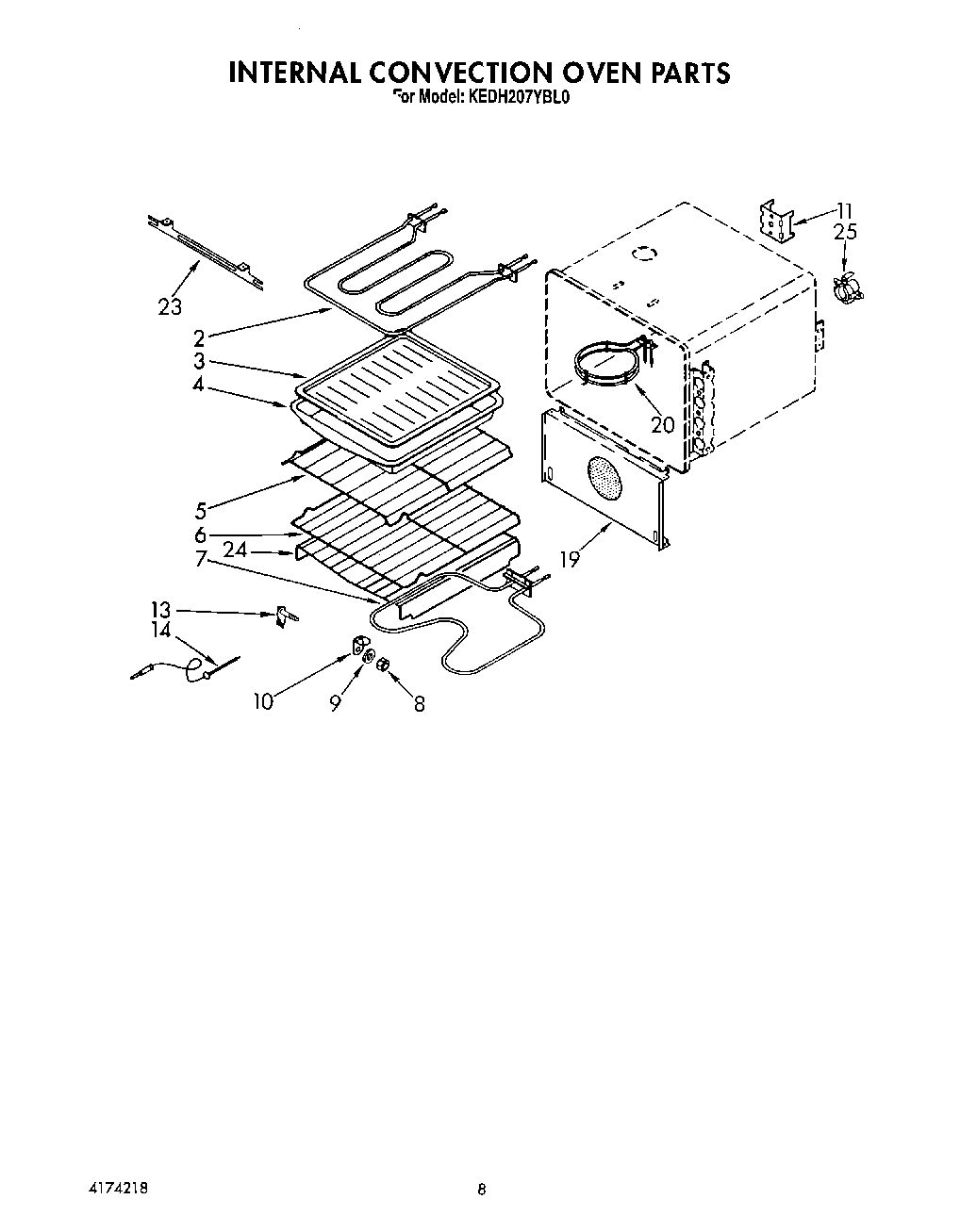

KEDH207YAL0 06 – INTERNAL CONVECTION OVEN

Products

Position	Product
2	Unit, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Straight
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Bracket, Support Motor
13	Receptacle, Probe
14	Probe
19	Cover, Fan
19	SCREW
20	Element, Convection
23	Screw (3)
23	Bracket, Element
24	Rack, Roasting
25	Fuse, Safety
25	WP488729 Whirlpool Refrigerator Door Screw
