KEDH207YAL0 07 – CONVECTION FAN
Written by
in

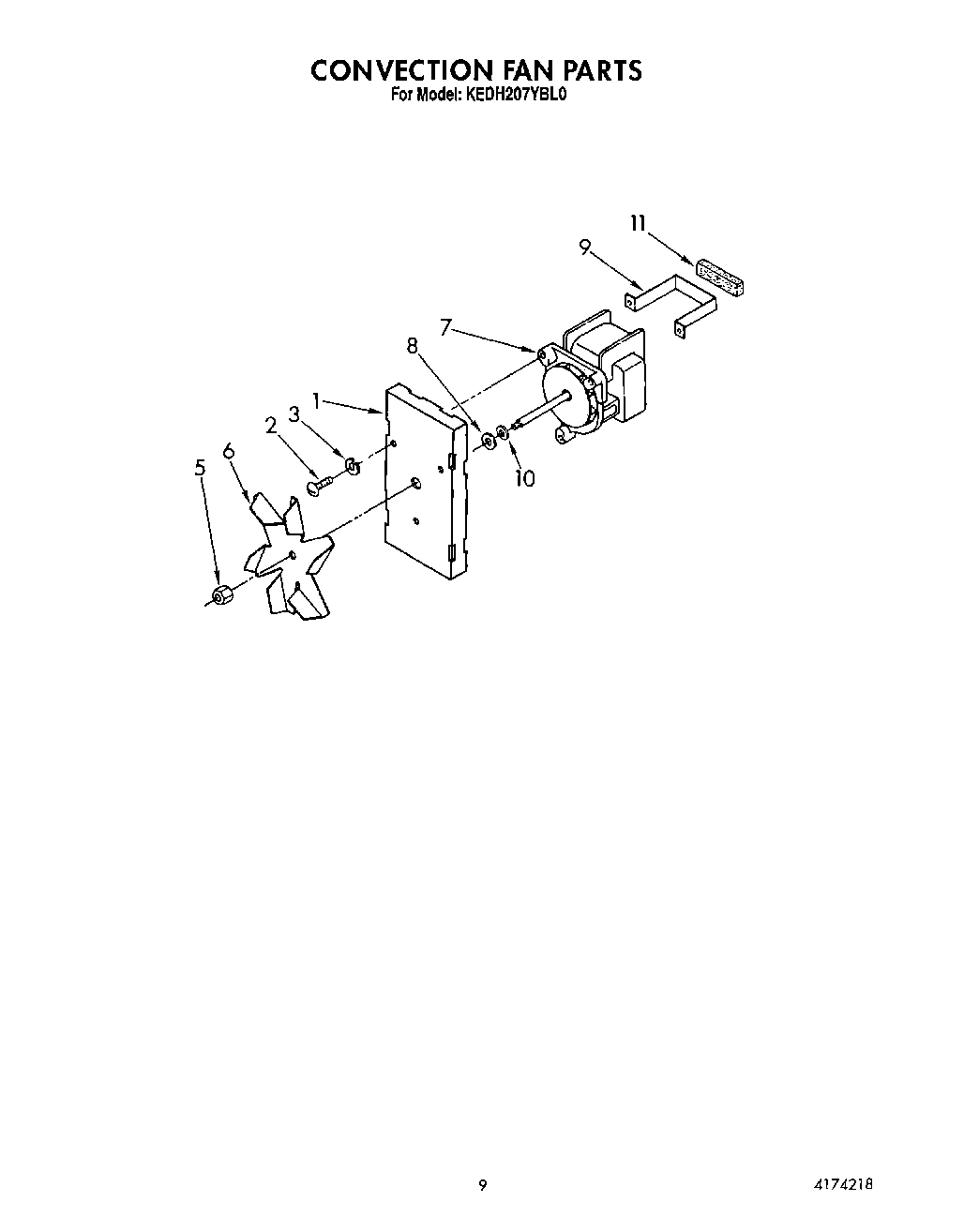

KEDH207YAL0 07 – CONVECTION FAN
Products
| Position | Product |
|---|---|
| 1 | Plate, Mounting (Fan Motor) |
| 2 | Screw, Fan Mounting |
| 3 | Lockwasher (3) |
| 5 | Nut (Left Hand) |
| 6 | Fan |
| 7 | Motor, Fan |
| 8 | E-Ring |
| 9 | Bracket, Guard |
| 10 | Flat Washer |
| 11 | Gasket, Foam |
