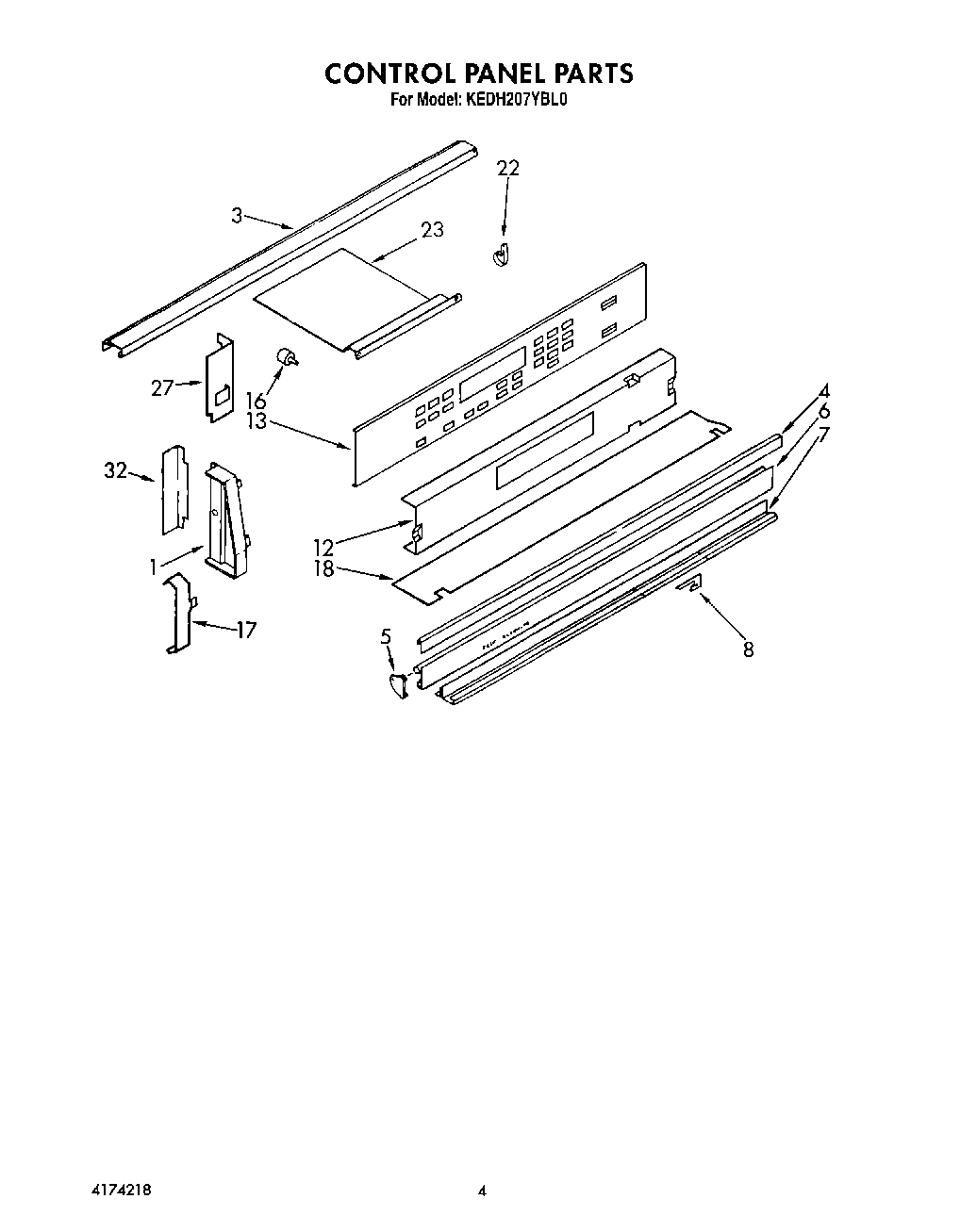

KEDH207YBL0 03 – CONTROL PANEL

Products

Position	Product
1	End Cap (White, RH)
1	End Cap (Almond, RH)
1	End Cap (Washer)
1	End Cap, L.H. (Almond)
1	End Cap (White, LH)
1	End Cap (Black, RH)
1	End Cap (Black, LH)
3	Rail, Top (Bright Aluminum)
3	Rail, Top (Black)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Right Side)
6	Door, Vent (Semi-Bright Aluminum)
6	Door, Vent
6	panel, top (screw, 10a x 3/8 (3))
7	Trim, Bottom
8	Shield, Air
12	Panel, Control (White)
12	Panel, Control (Almond)
12	Microcomputer
12	Panel, Control (Black)
16	Bumper, Rubber (4)
17	Bracket, Control Panel
18	Shield, Control
22	WP308605 Whirlpool Refrigerator Clamp
23	Shield, Heat
23	Screw (2)
27	Screw,
27	Bracket, Support
32	Trim, End Cap (Black)
32	Trim, End Cap (White)
32	Trim, End Cap (Almond)
