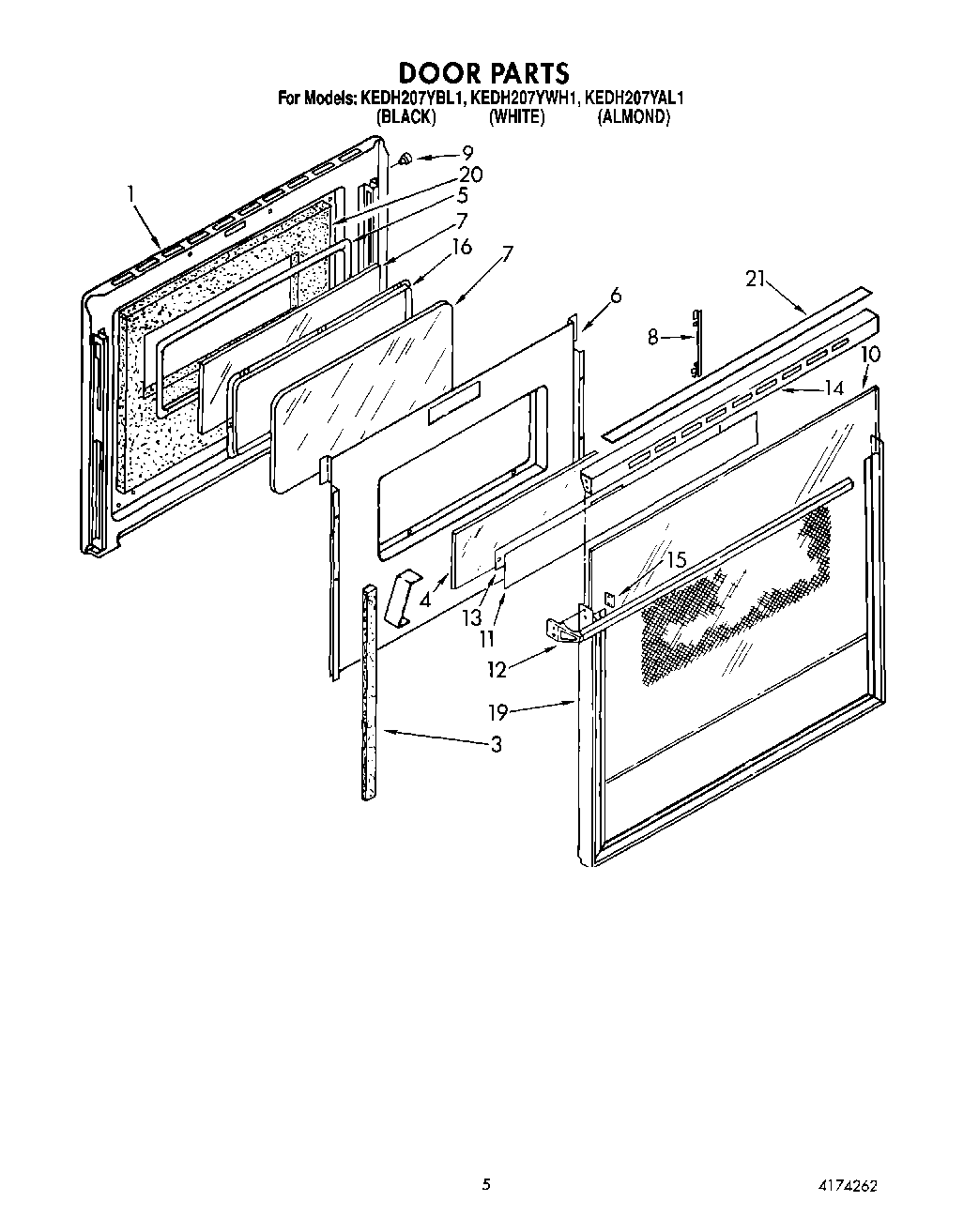

KEDH207YBL1 03 – DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
10	Glass, Panel (White)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
12	Handle, Door (Almond)
13	Sheild, Door
13	Screw,
14	Top, Door (Black Model)
14	Top, Door (White Model)
14	WP308685 Whirlpool Microwave Screw
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Insulation, Door
21	Cap, Top
