KEDH207YWH2 03 – DOOR, LITERATURE

Products

Position	Product
	Tech Sheet
	Use & Care Guide
	Cookbook T/C Oven
	Installation Instructions
	Guide, Auto Set

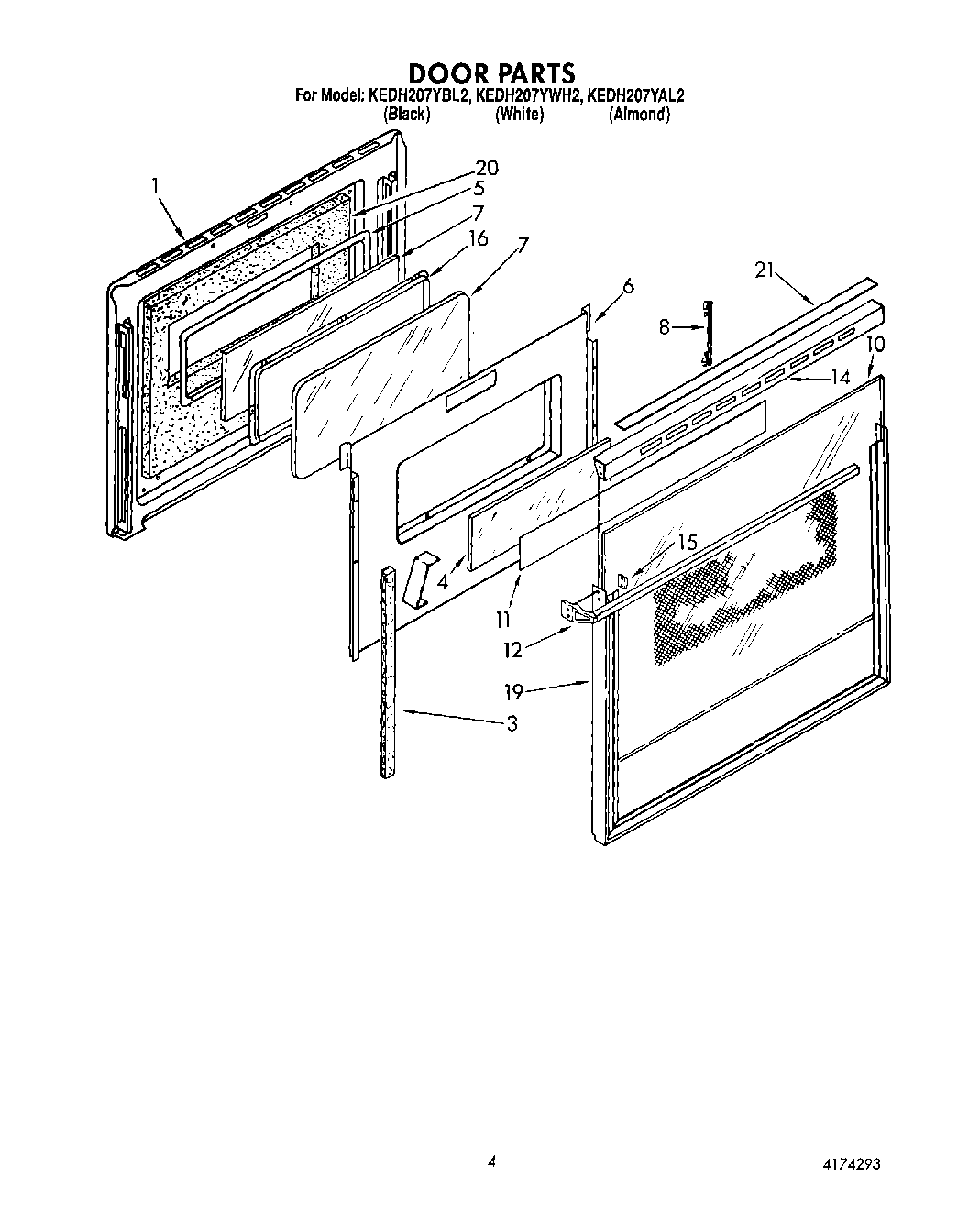

	Repair Parts List
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
12	Handle, Door (Almond)
12	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
14	Top, Door (White Model)
14	WP308685 Whirlpool Microwave Screw
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
19	Frame, Door
20	Insulation, Door
21	Cap, Top
