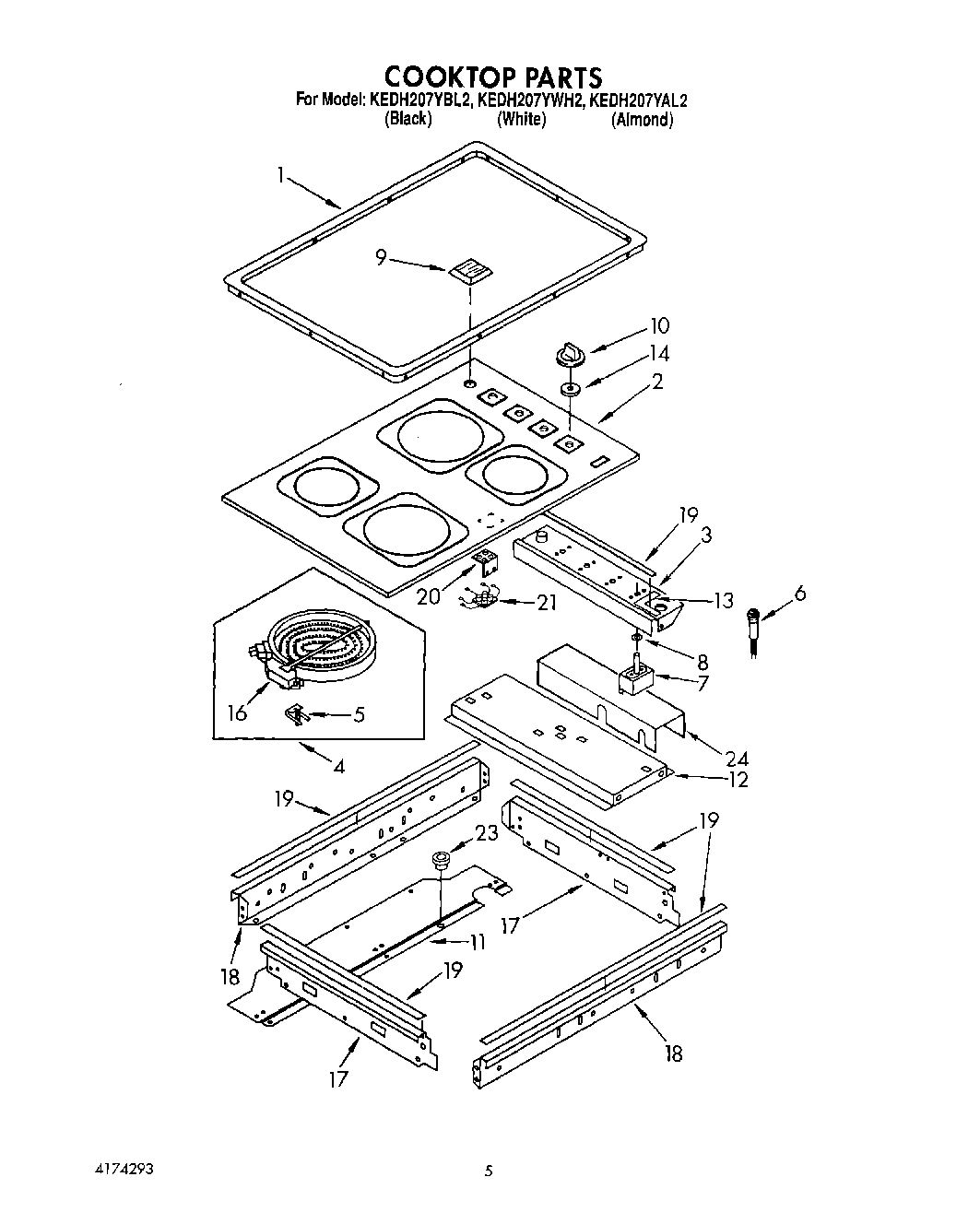

KEDH207YWH2 04 – COOKTOP, OPTIONAL

KEDH207YWH2 04 – COOKTOP, OPTIONAL

Written by

in

KEDH207YWH2 04 – COOKTOP, OPTIONAL

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
1Trim Ring, Cooktop (Almond)
1Trim Ring, Cooktop (Black)
1Trim Ring, Cooktop (White)
2Cooktop, Glass (White)
2Cooktop, Glass (Black or Almond Model)
3Bracket, Switch Mounting
4Element, Surface (1800W Right Front)
4WP8185663 Whirlpool Surface Element
4Element, Surface (2200W Right Rear)
4Element, Surface (1400W Left Rear)
5WP486754 Whirlpool Compactor Screw
5Spring, Locator
6Light, Indicator
7Switch, Infinite (Use W/1400W Left Rear Burner)
7Switch, Inifinite (Rear Burner (Orange Shaft))
7Switch, Inifinite (Front Burner (Green Shaft))
7Switch, Infinite (Use W/2200W Right Rear Burner)
8Seal, Switch Shaft (2)
9Cover, Vent (White)
9Cover, Vent (Almond)
9Cover, Vent (Black)
10Knob, Control (4) (White)
10Knob, Control (4) (Black)
10Knob, Control (4) (Almond)
11Cover, Top Rear
12Support, Element
13Seal, Cooktop
14WP486579 Whirlpool Air Conditioner Screw
14Seal, Inifinite Switch
16Limiter, Temp. (8“ R.R.)
16Limiter, Temp. (7“ R.F.)
16Limiter, Temp. (6“ L.R.)
16Limiter, Temp. (9“ L.F.)
17Rail, Side (Right Hand)
17Rail, Side (Left H
18WPL 3181646
18WPL 3183380
19Seal, Silicone (Sides (2))
19Seal, Silicone (Front & Back (2))
20WPL 3150321
20WP488729 Whirlpool Refrigerator Door Screw
21WPL 3150304
23WPL 258109
24WPL 3183640
24WPL 3183639
24WPL 3183638
24WPL 3184261
24WPL 3185260
24WA906B Whirlpool Cooktop Glass Scraper
24Wire, 25` Roll (Black 14 Ga.)
24Wire, 25“ Roll (White 14 GA.)
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24242831 Whirlpool Oven Wire
24Wire (14 Ga. 150 c Blue)
24Grease
248212471 Whirlpool Oven Paint
241
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24WPL 814128
