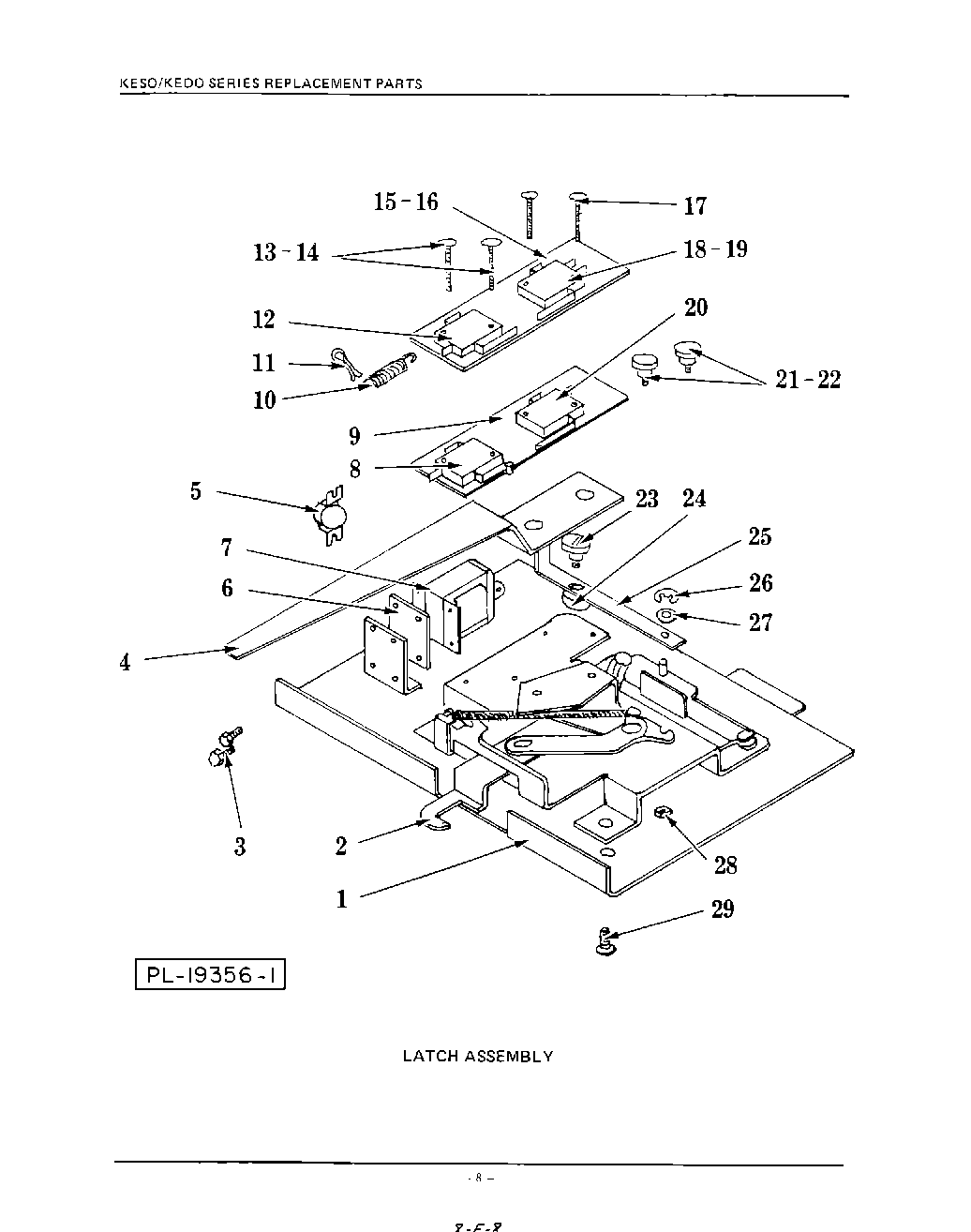

KEDO240 05 – LATCH ASSEMBLY

Products

Position	Product
1	Latch Mounting Plate
2	Latch Mechanism
3	Screw No.10-24 x 3/8`` Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch with Roller
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch, Normally Closed KEDO-245/275
14	Screw - No.4-40 x 9/16`` RHMS - Slotted KESO-140/145, KESO-170/175
15	Insulator KESO-140/145, KESO-170/175, KEDO-240/270
16	Insulator KEDO-245/275
17	Screw - No.4-40 x 1-1/8`` RHMS - Slotted
19	Latch Switch, SPDT KESO-145/175 Upper Oven KEDO-245/275
20	Latch Switch, Normally Open
21	Shoulder Screw, Latch Lever KESO-140/145, KESO-170, KESO-175 Upper Oven KEDO-245/275
22	Shoulder Screw, Latch Lever Lower Oven KEDO-245/275
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, 10-24 Hex Kep
29	Screw, 10-24 x 3/8`` PTHMS
