KEDO240SS 08 – LOWER EASY CLEAN OVEN

KEDO240SS 08 – LOWER EASY CLEAN OVEN

Written by

in

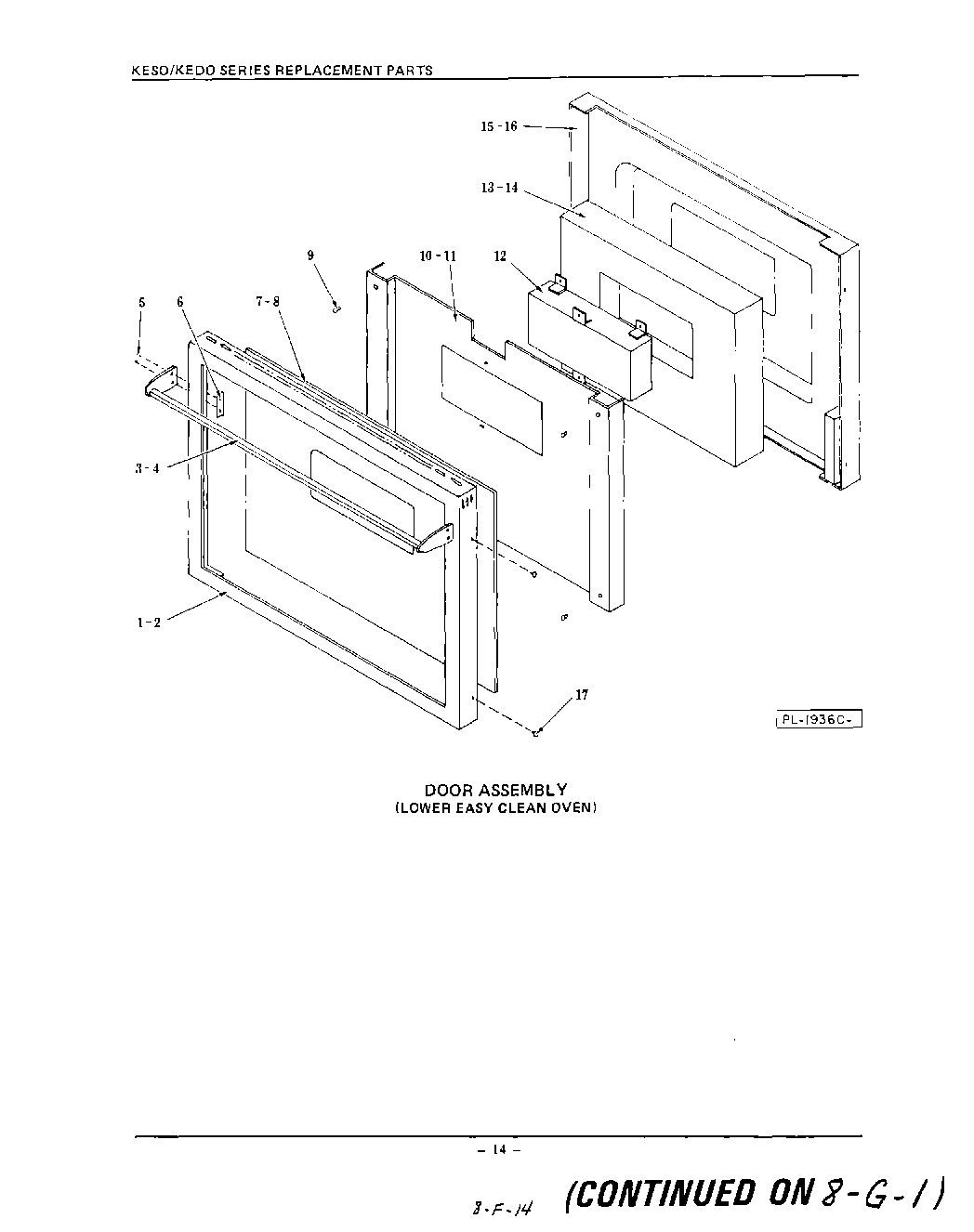

KEDO240SS 08 – LOWER EASY CLEAN OVEN

Products

PositionProduct
1Door Frame KEDO-240
2Door Frame KEDO-270
3Door Handle KEDO-240
4Door Handle KEDO-270
5Screw, 8-32 x 3/8“ PFHMS
6Tinnerman
7Door Glass KEDO-240
8Door Glass KEDO-270
9Rubber Bumper
10Insulation Retainer KEDO-240
11Insulation Retainer KEDO-270
12Window Pack
13Insulation KEDO-240
14Insulation KEDO-270
15Door Liner KEDO-240
16Door Liner KEDO-270
17Screw, 8A x 3/8“ PKESMS
