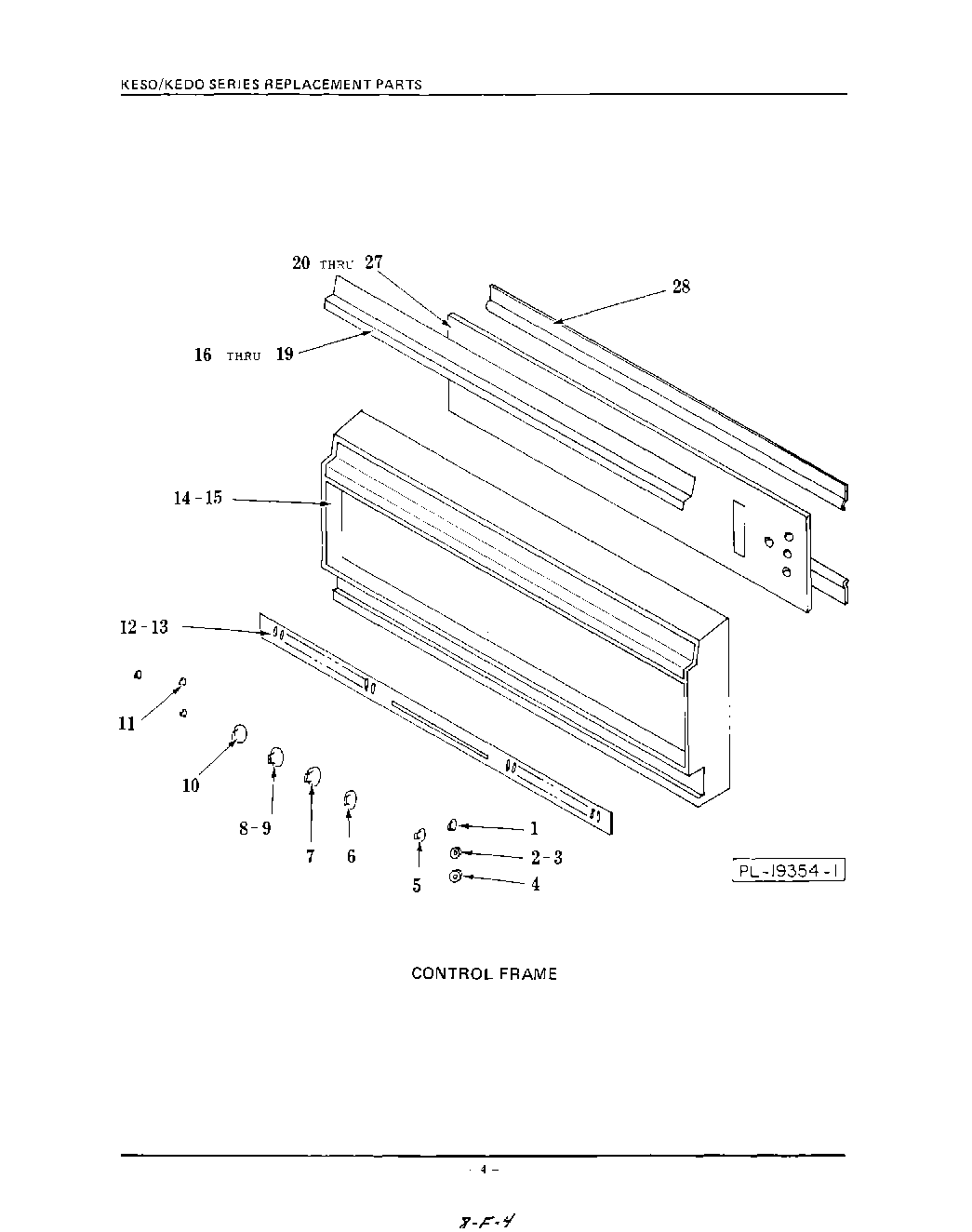

KEDO245 03 – CONTROL FRAME

Products

Position	Product
4	Bezel, Oven Light Switch KESO-145/175, KEDO-245/275
5	Knob, Meat Probe Indicator KESO-145/175, KEDO-245/275
8	Knob, Thermostat, Single or Upper Oven KESO-140/170, KEDO-240/270
10	Knob - Selector Switch, Single or Upper Oven
11	Knob, Clock
12	Vent Insert KESO-140/145, KEDO-240/245
13	Vent Insert KESO-170/175, KEDO-270/275
14	Control Frame KESO-140/145, KEDO-240/245
15	Control Frame KESO-170/175, KEDO-270/275
16	Top Insert KESO-140/240
17	Top Insert KESO-145/245
18	Top Insert KESO-170/270
19	Top Insert KESO-175/275
20	Control Panel Glass KESO-140
21	Control Panel Glass KESO-145
22	Control Panel Glass KESO-170
23	Control Panel Glass KESO-175
24	Control Panel Glass KEDO-240
25	Control Panel Glass KEDO-245
26	Control Panel Glass KEDO-270
27	Control
28	WPL CC22040
