KEDO245SS 08 – LOWER EASY CLEAN OVEN – Aparts

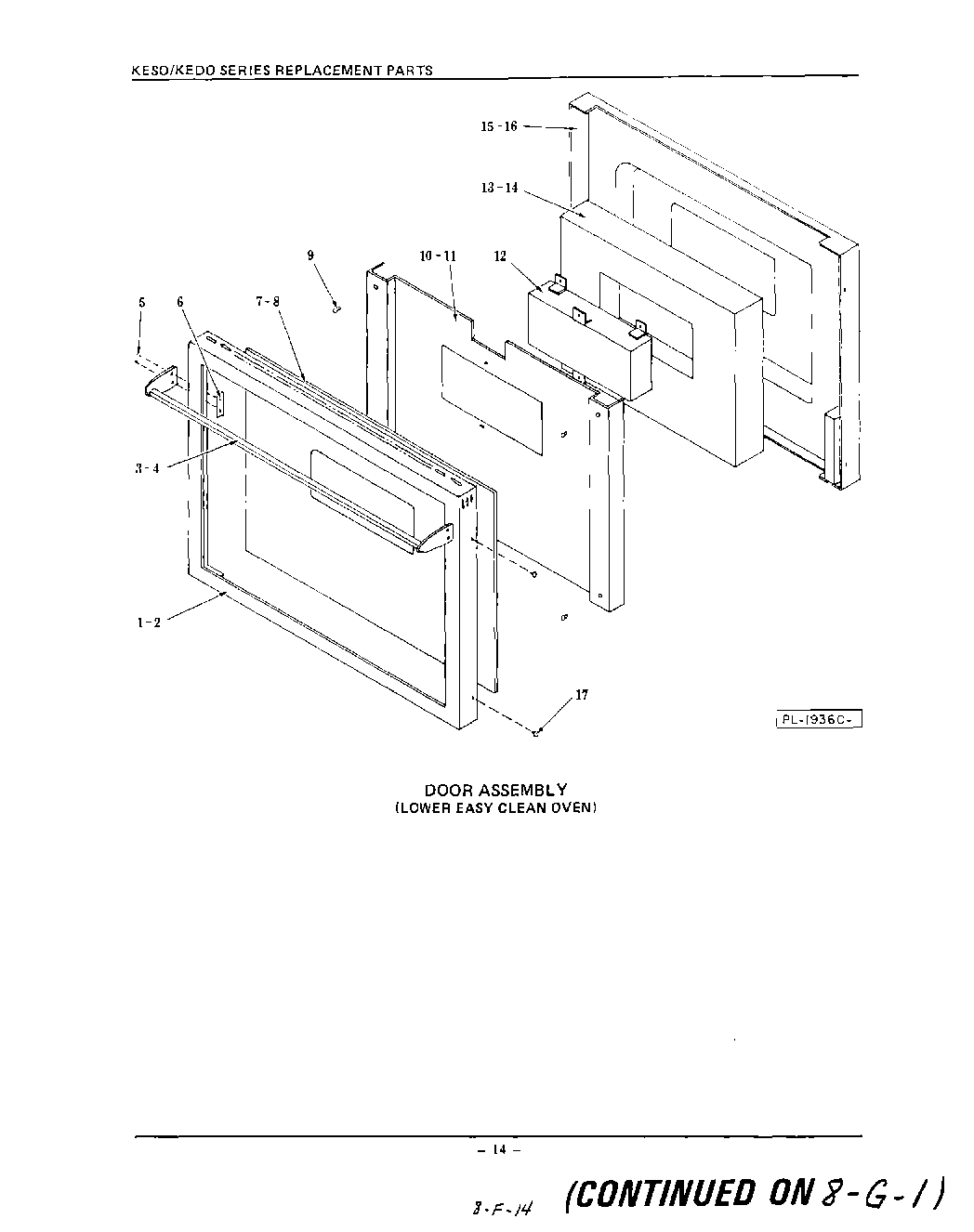

KEDO245SS 08 – LOWER EASY CLEAN OVEN

Products

Position	Product
1	Door Frame KEDO-240
2	Door Frame KEDO-270
3	Door Handle KEDO-240
4	Door Handle KEDO-270
5	Screw, 8-32 x 3/8`` PFHMS
6	Tinnerman
7	Door Glass KEDO-240
8	Door Glass KEDO-270
9	Rubber Bumper
10	Insulation Retainer KEDO-240
11	Insulation Retainer KEDO-270
12	Window Pack
13	Insulation KEDO-240
14	Insulation KEDO-270
15	Door Liner KEDO-240
16	Door Liner KEDO-270
17	Screw, 8A x 3/8`` PKESMS
