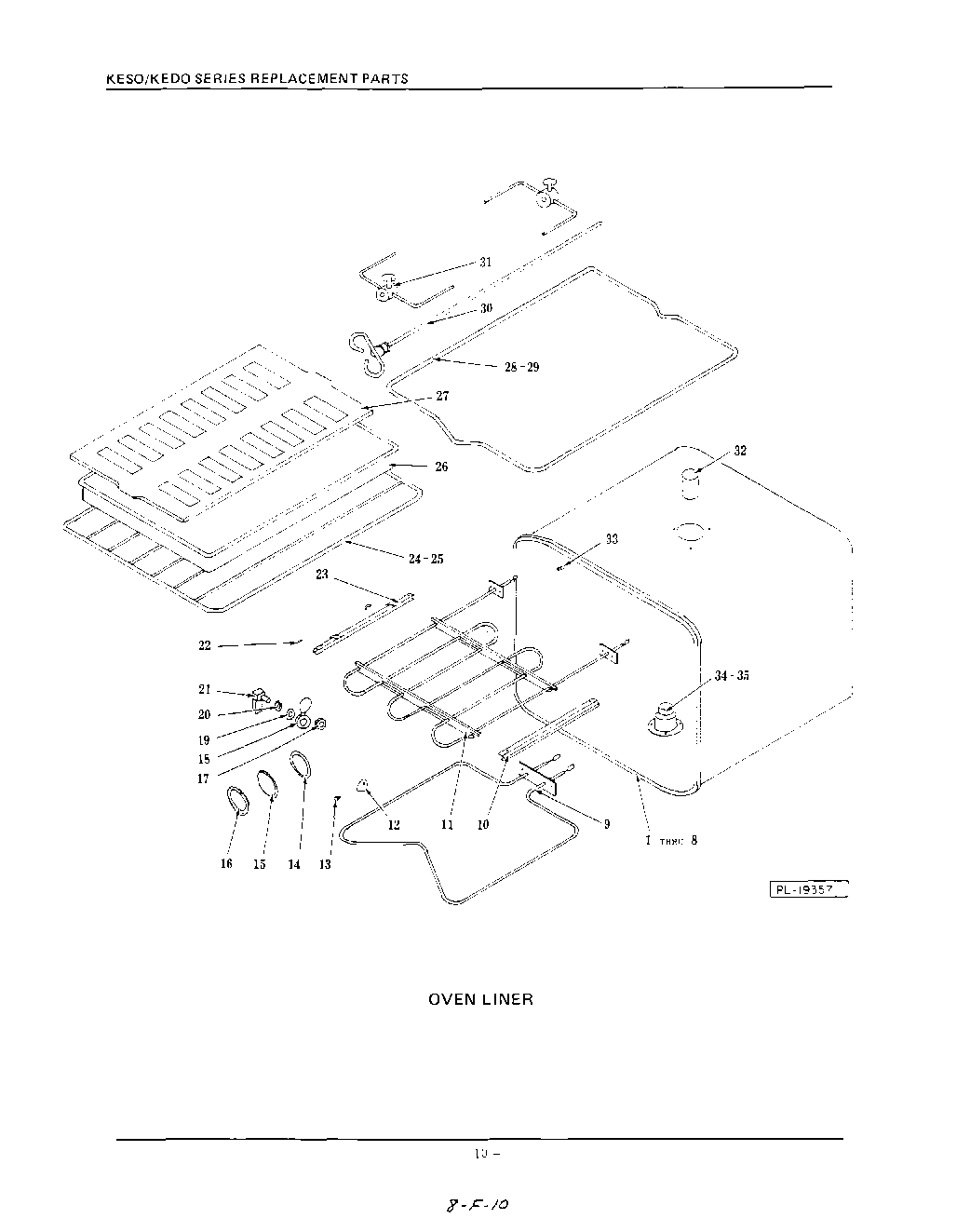

KEDO270SE 06 – OVEN LINER

Products

Position	Product
2	Oven Liner, Lower Oven KEDO-240
3	Oven Liner, Single or Upper Oven KESO-145, KEDO-245
4	Oven Liner, Lower Oven KEDO-245
6	Oven Liner, Lower Oven KEDO-270
7	Oven Liner, Single or Upper Oven KESO-175, KEDO-275
8	Oven Liner, Lower Oven KEDO-275
9	Bake Element
10	Broiler Element Support - Right
11	Broiler Element
12	Rotisserie Cover KESO-145/175, KEDO-245/275
13	Shoulder Screw KESO-145/175, KEDO-245/275
14	Light Lens Gasket
15	Light Lens
16	Light Lens Retainer
17	Nut, Meat Probe KESO-145/175, KEDO-245/275
18	Probe Jack Cover KESO-145/175, KEDO-245/275
19	Washer KESO-145/175, KEDO-245/275
20	Nut, Hex Jam KESO-145/175, KEDO-245/275
21	Meat Probe Jack KESO-145/175, KEDO-245/275
22	Thermostat Bulb Clip
23	Broiler Element Support - Left
24	Oven Rack KESO-140/145, KEDO-240/245
25	Oven Rack KESO-170/175, KEDO-270/275
26	Broiler Pan
27	Broiler Pan Grid
28	Rotisserie Rack KESO-145, KEDO-245
29	Rotisserie Rack KESO-175, KEDO-275
30	Rotisserie Spear KESO-145/175, KEDO-245/275
31	Rotisserie Skewer KESO-14
32	WPL CC31859
33	WPL CC32104
34	WPL CC70857
35	WPL CC70856
