KEDO276SS 03 – CONTROL FRAME

KEDO276SS 03 – CONTROL FRAME

Written by

in

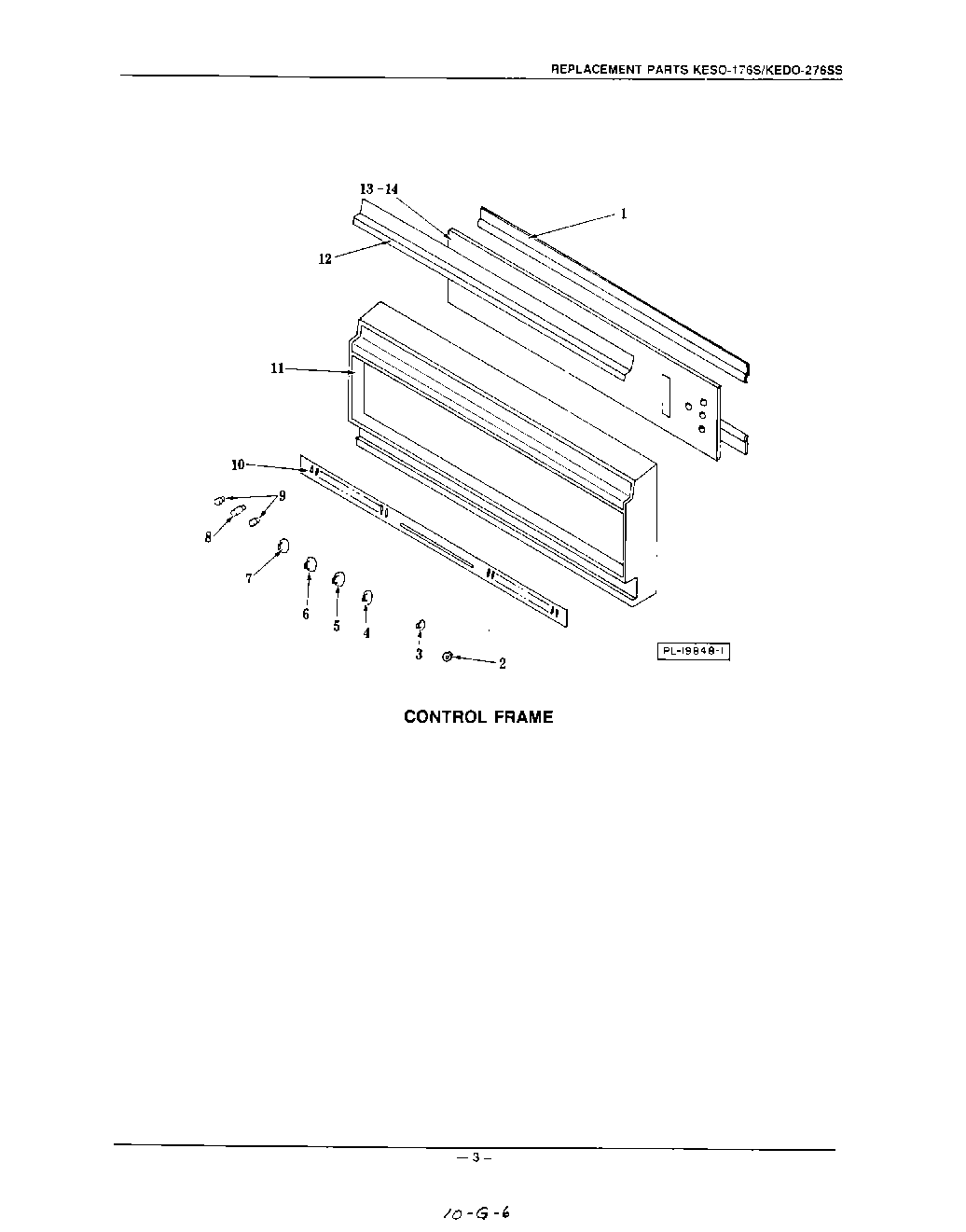

KEDO276SS 03 – CONTROL FRAME

Products

PositionProduct
1WPL CC22040
2Bezel, Oven Light Switch KESO-145/175, KEDO-245/275
3Knob, Meat Probe Indicator KESO-145/175, KEDO-245/275
7Knob – Selector Switch, Single or Upper Oven
8Knob, Timer (Rotary Control)
9Knob, Timer (Push Button Control)
10Vent Insert KESO-170/175, KEDO-270/275
11Control Frame
12Top Insert
13Control Panel Glass (KEDO-176)
14Control Panel Glass (KEDO-276)
