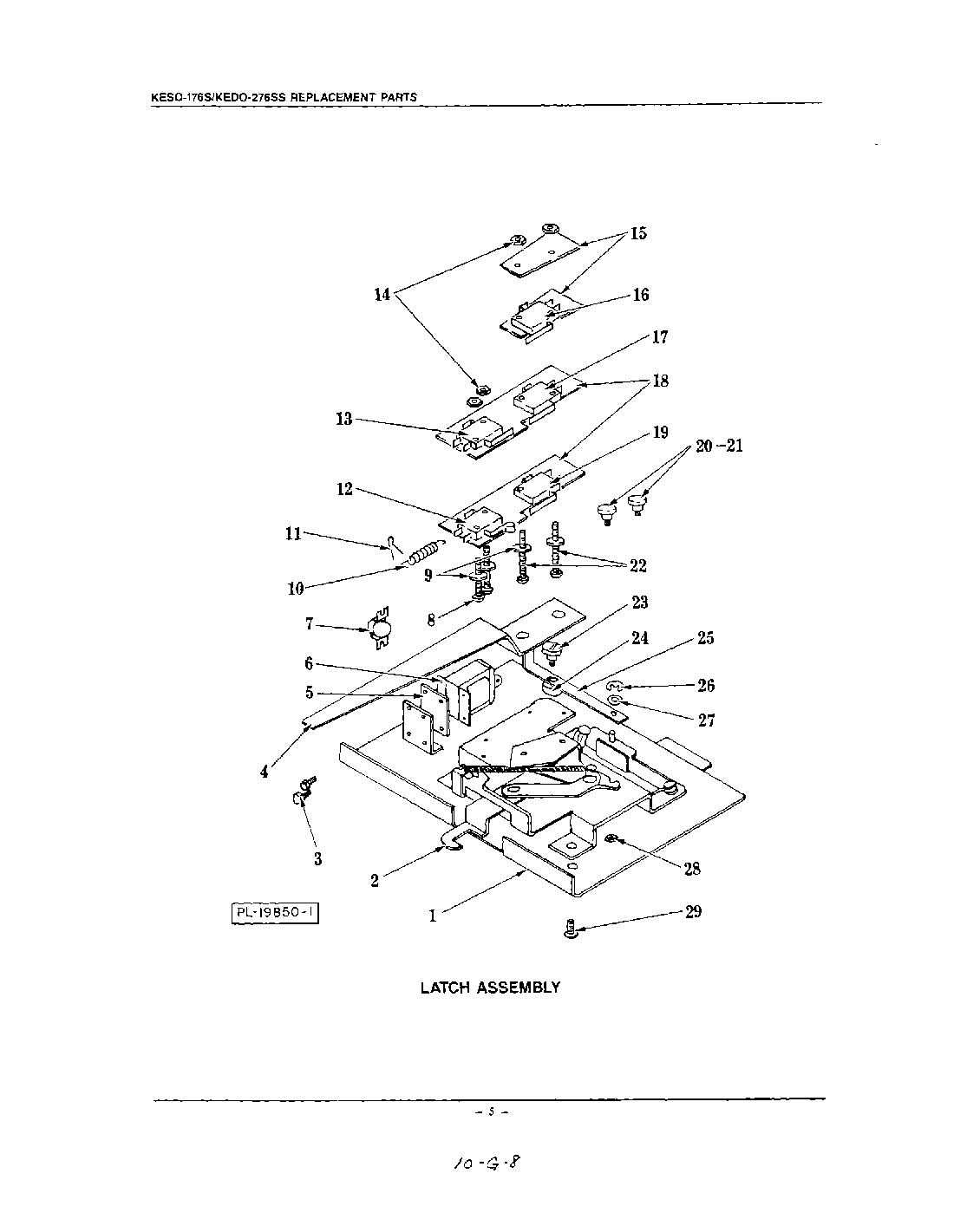

KEDO276SS 05 – LATCH ASSEMBLY

Products

Position	Product
1	Latch Mounting Plate
2	Latch Mechanism
3	Screw No.10-24 x 3/8`` Hex TCS
4	Latch Lever
5	Solenoid Spacer
6	Solenoid
7	Thermal Switch
8	Mach. Screw 4-40 x 1 1/4 Rd. Hd
9	Lock Washer 4 Int. Shakeproof
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch with Roller
13	Latch Switch, Normally Open
14	Mach. Nut 4-40 Hex
15	Insulator KESO-140/145, KESO-170/175, KEDO-240/270
16	Latch Switch
18	Insulator KEDO-245/275
19	Latch Switch, Normally Open
20	Shoulder Screw, Latch Lever KESO-140/145, KESO-170, KESO-175 Upper Oven KEDO-245/275
21	Shoulder Screw, Latch Lever Lower Oven KEDO-245/275
22	Mach. Screw 4-40 x 1 3/4 Rd. Hd
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, 10-24 Hex Kep
29	Screw, 10-24 x 3/8`` PTHMS
